20
Alignment

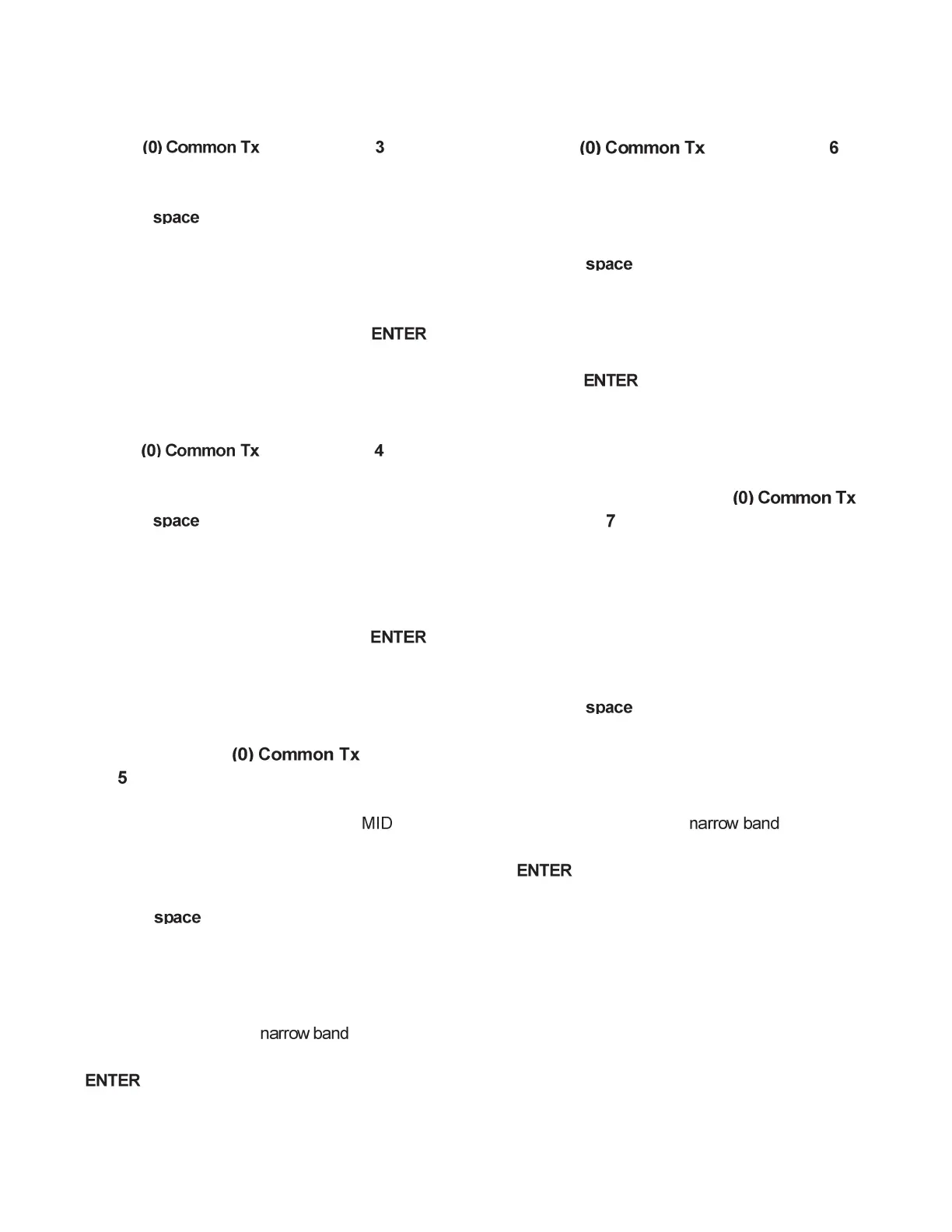

- [3] L2
This parameter aligns the L2 power (1 W) level.
From the “
” section, press [ ] to ac-
tivate this alignment sequence.
• Press the [
] key on the keyboard to activate
the transmitter.
• Press the [S] or [T] key, as needed, to set the
power output to 1 Watt, as indicated on the exter-
nal wattmeter.
• When the 1 Watt level is attained, press [
]
to lock in the new data.
- [4] L3
This parameter aligns the L3 power (2.5 W) level.
From the "
" section, press [ ] to ac-
tivate this alignment sequence.
• Press the [
] key on the keyboard to activate
the transmitter.
• Press the [S] or [T] key, as needed, to set the
power output to 2.5 W, as indicated on the exter-
nal wattmeter.
• When the 2.5 W level is attained, press [
]
to lock in the new data.
- [5] MAXIMUM DEVIATION
This section adjusts the transmitter’s voice devia-
tion level. From the “
” section,
select [
] to enter this alignment sequence.
• Use the [W] or [X] key to select the “ ” fre-
quency channel in the alignment range.
• Disable any subaudible tone signaling on this
channel, if present.
• Press the [
] key on the computer keyboard
to start alignment. This activates the transmitter,
and injects a 1 kHz test tone.
• Press the [S] or [T] key, as needed, to set the
deviation to the desired value (typically 3.9 ~ 4.2
kHz, or 2.0 ~ 2.3 kHz for “
” channels).
• When the desired deviation level is attained, press
[
] to lock in the new value.
- [6] MIC GAIN
This parameter is used to align MIC Gain level.
From the
“ ” section, press [ ] to
activate this alignment sequence.
• Use the [S] or [T] key to select the channel on
which you wish to adjust the MIC Gain.
• Press the [
] key on the computer keyboard
to start alignment. This activates the transmitter,
and injects a subaudible test tone.
• Use the [W] or [X] key to find the desired MIC
Gain level is achieved.
• Press the [
] key on the computer keyboard
to lock in the new MIC Gain level.
- [7] SUB AUDIO DEVIATION
This section adjusts the transmitter’s subaudible
tone deviation level. From the
“ ”
section, select [ ] to enter this alignment sequence.
• After setting the Maximum Deviation in the pre-
vious section, it is now time to align the subaudi-
ble signaling deviation level.
• Use the [W] or [X] key to select the channel on
which you wish to adjust the Subaudible Devia-
tion.
• Press the [
] key on the computer keyboard
to start alignment. This activates the transmitter,
and injects a subaudible test tone.
• Press the [S] or [T] key, as needed, to set the
deviation to the desired value (typically 0.6±0.1
kHz, or 0.4±0.1 kHz for “
” channels).
• When the desired deviation level is attained, press
[
] to lock in the new value.
