Vertical Express LD-16 - Page 109

LD-16 Door Operator - Modernization Harness Assembly Diagrams
October 2021 - 88420 v.1.0
A-13

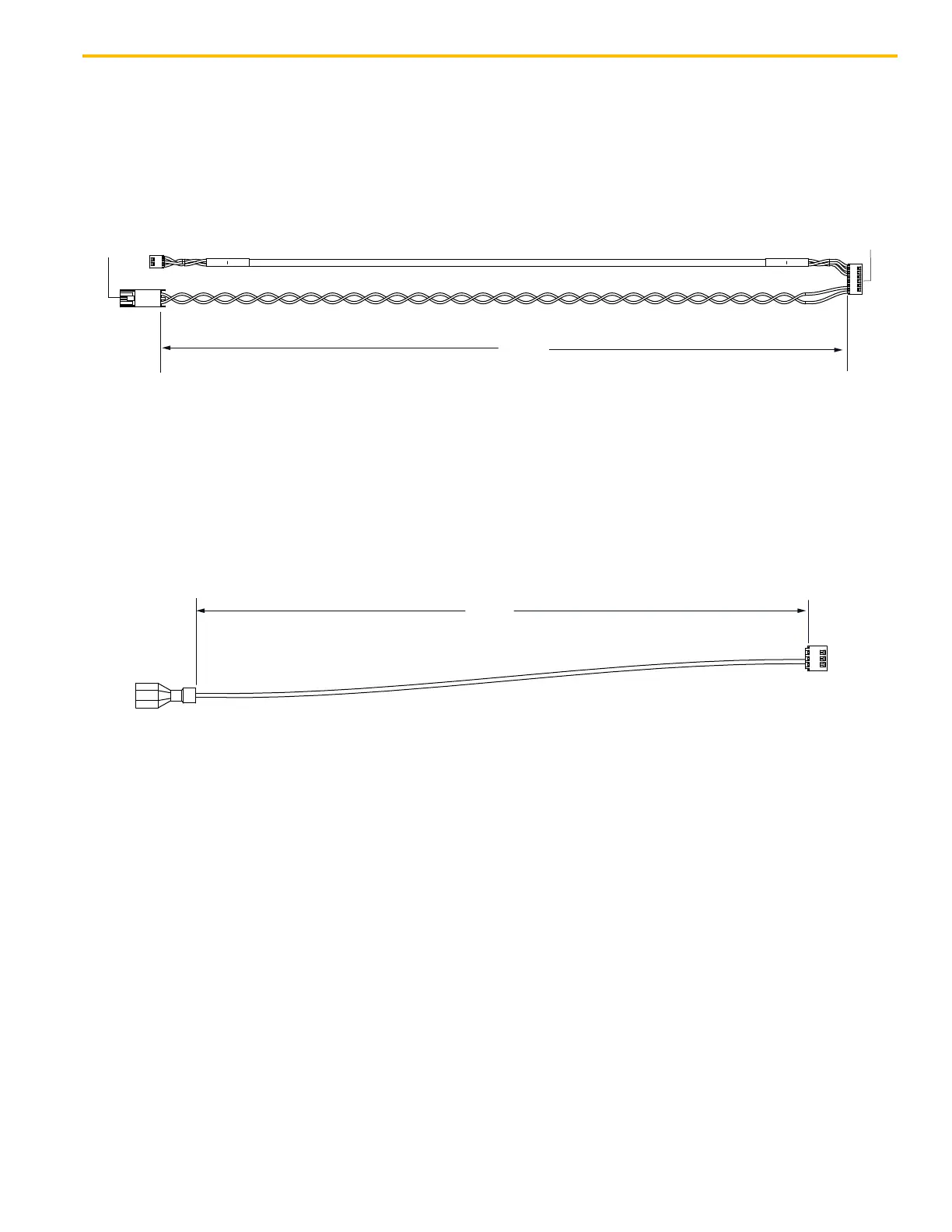

Harness Assembly Diagrams - COP Adapter, 462AEM_
(continued)
Type: Alarm, 485
Use: TAC22, ICON, TAC20-03, TAC20, TAC50-03
Rear: 462AEM0014
PIN 1
PIN 1
PIN 1
SIR CON11
35"
SIR
CON3
220
FASTON - MALE
PIN 1
220A
12"
Type: Door Operator Ground
Use: TAC32T, TAC32H
Rear: 462AEM016
