Vertical Express LD-16 - New;Existing Car Door Panel Installation

Separate Header Installation LD-16 Door Operator - Modernization
36 © Vertical Express
Separate Header Installation
(continued)

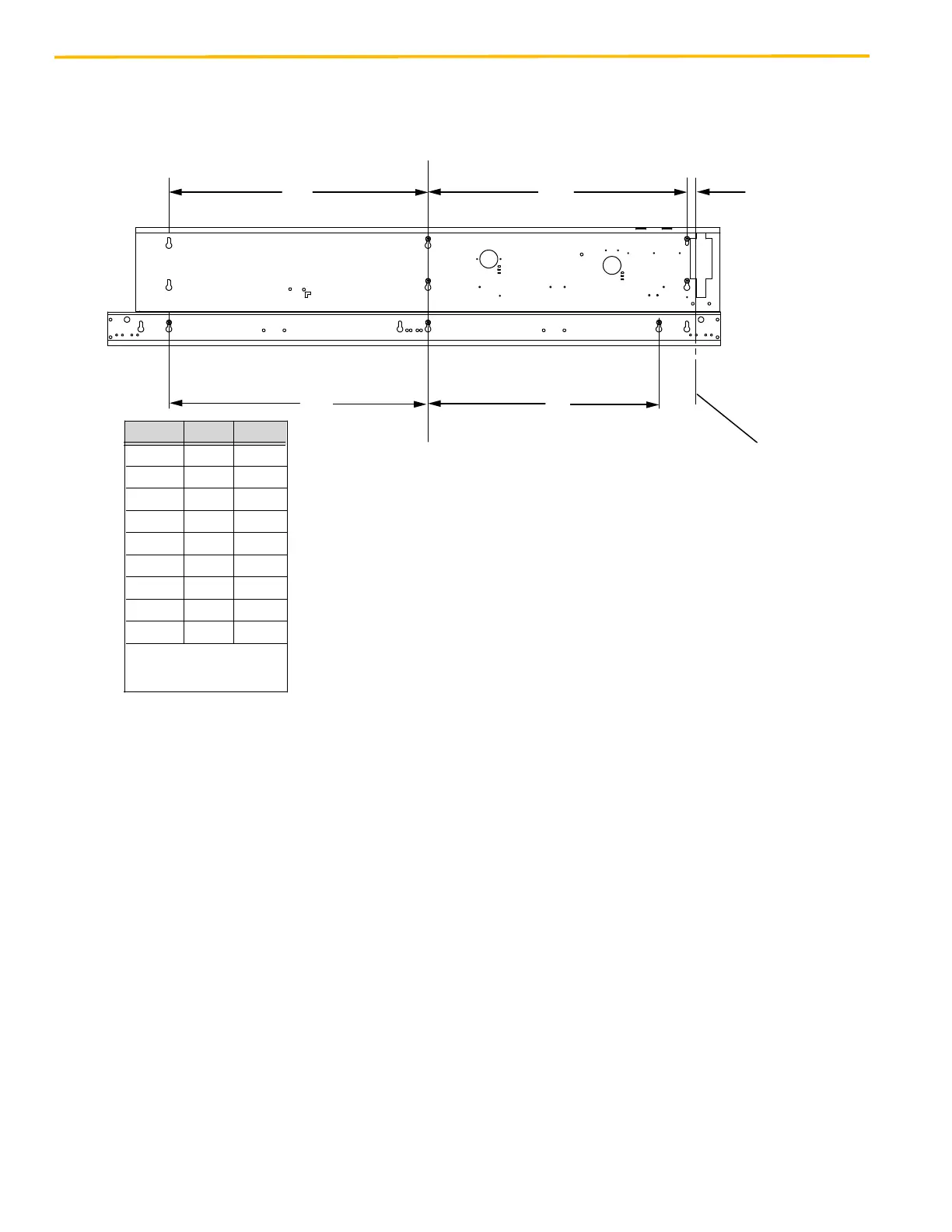

Figure 31 - Single-Speed Door Operator Mounting
CC
1¼"
Clear Opening
ŐƽȚ
B
C
Primary location for keyslots used to brace the door operator
back to the cab start at 1¼" from the clear opening, and
spaced at Dimension C inches. See Chart for Dimension C.
(right-hand shown; left-hand opposite)
DOW B C
32 23 27
34 25 29
36 27 31
38 29 33
40 31 35
42 33 37
44 35 39
46 37 41
48 39 43
Dimension C = ±2''
(all dim. in inches)
Dimensions shown are reference points and apply to TKE or Dover equipment ONLY.
