LD-16 Door Operator - Modernization Separate Header Installation
October 2021 - 88420 v.1.0
37
Separate Header Installation
(continued)

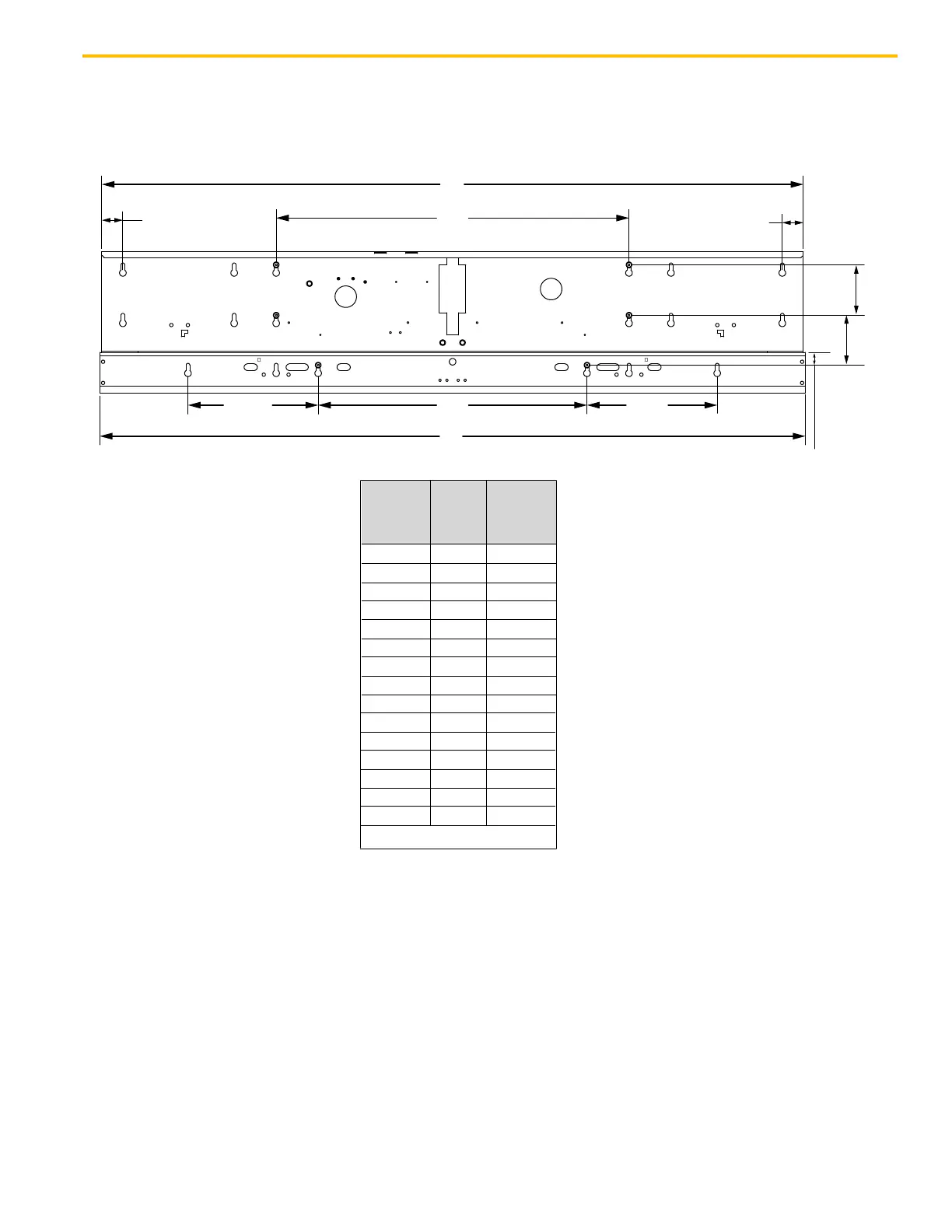

Figure 32 - Center-Opening Door Operator Mounting
L
2½"
2½"
15½"
15½" 32"
42"
A
6"
5ƣƣƭƂƇ"
1
½"
Clear
Opening
C L A
32 64 63½
34 68 67½
36 72 71½
38 76 75½
40 80 79½
42 84 83½
44 88 87½
46 92 91½
48 96 95½
50 100 99½
52 104 103½
54 108 107½
56 112 111½
58 116 115½
60 120 119½
(all dim. in inches)
Dimensions shown are reference points and apply to TKE or Dover equipment ONLY.
