REV : B
REV DATE : 3/23
10032078
Page :1 /1
LIEBERT® MCV430 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4

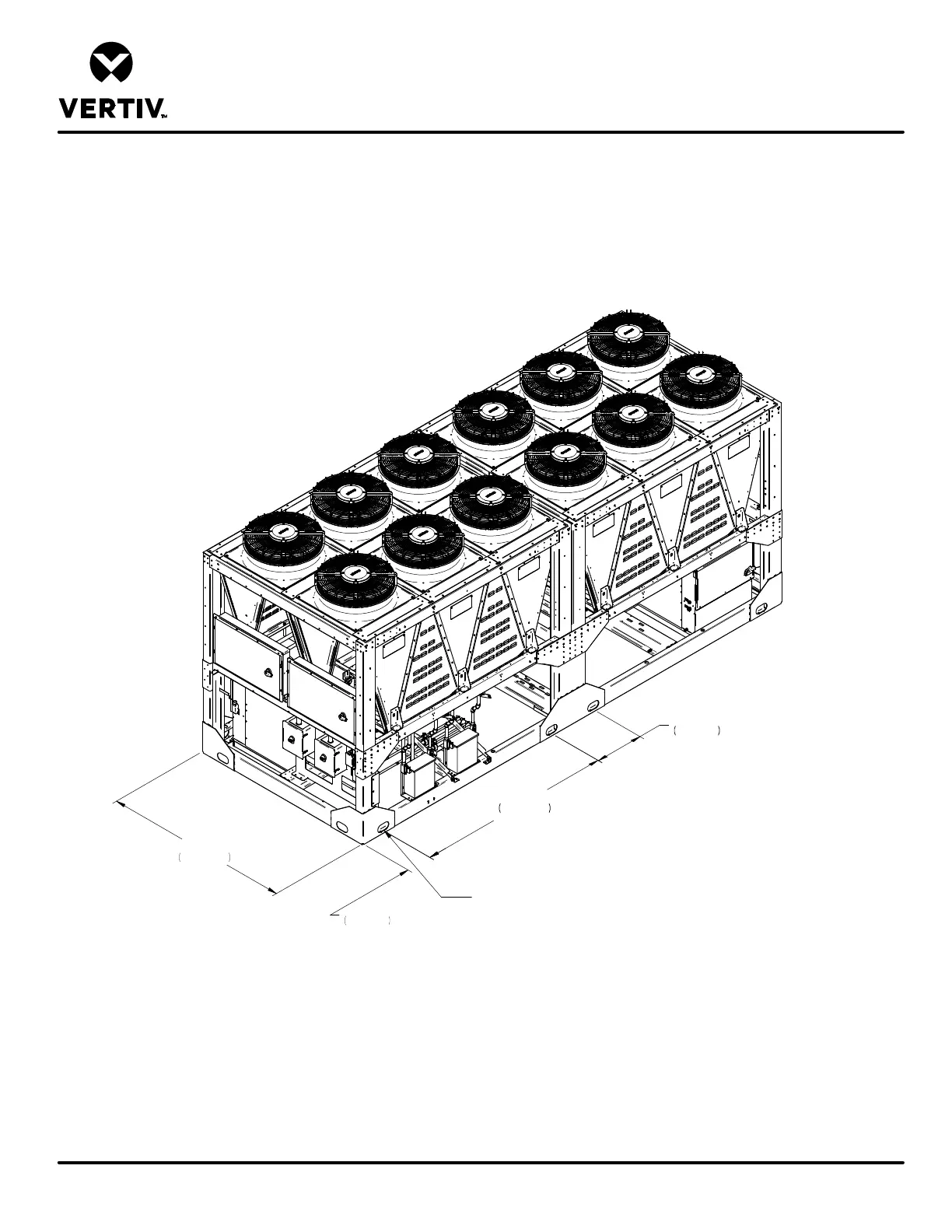

CABINET LIFTING POINTS
LIEBERT
®
HEAT REJECTION SKID
Note:
1. Use indicated lifting points to lift the unit. Use spreader bars and/or shimmed blocks to prevent external damage.
2. Unit must be lifted level. Tilting or twisting can cause damage to internal components.
3. Use proper rigging equipment to make sure attachment and lifting at the designated lift points is in the vertical direction.
-Refer to User Manual for site instructions.
101"
2565mm
4" X 7"
(102mm X 178mm)
Lifting Points
TYP. (8) Places
Front of Unit
13 7/8"
351mm
TYP.
106 1/4"
2699mm
TYP.
27 3/4"
705mm
TYP.
