4.5.4 Placing Unit onto Floorstand
• Unit to be placed onto floorstand using process that will provide safest method based on site layout.
• Professional installers to be used when placing unit.
• Unit may require lift onto a floorstand if elevated flooring has not been installed.
• When elevated flooring is installed, unit will be placed over floor opening containing floorstand.
• Make sure to align edges of unit frame with edges of floorstand.

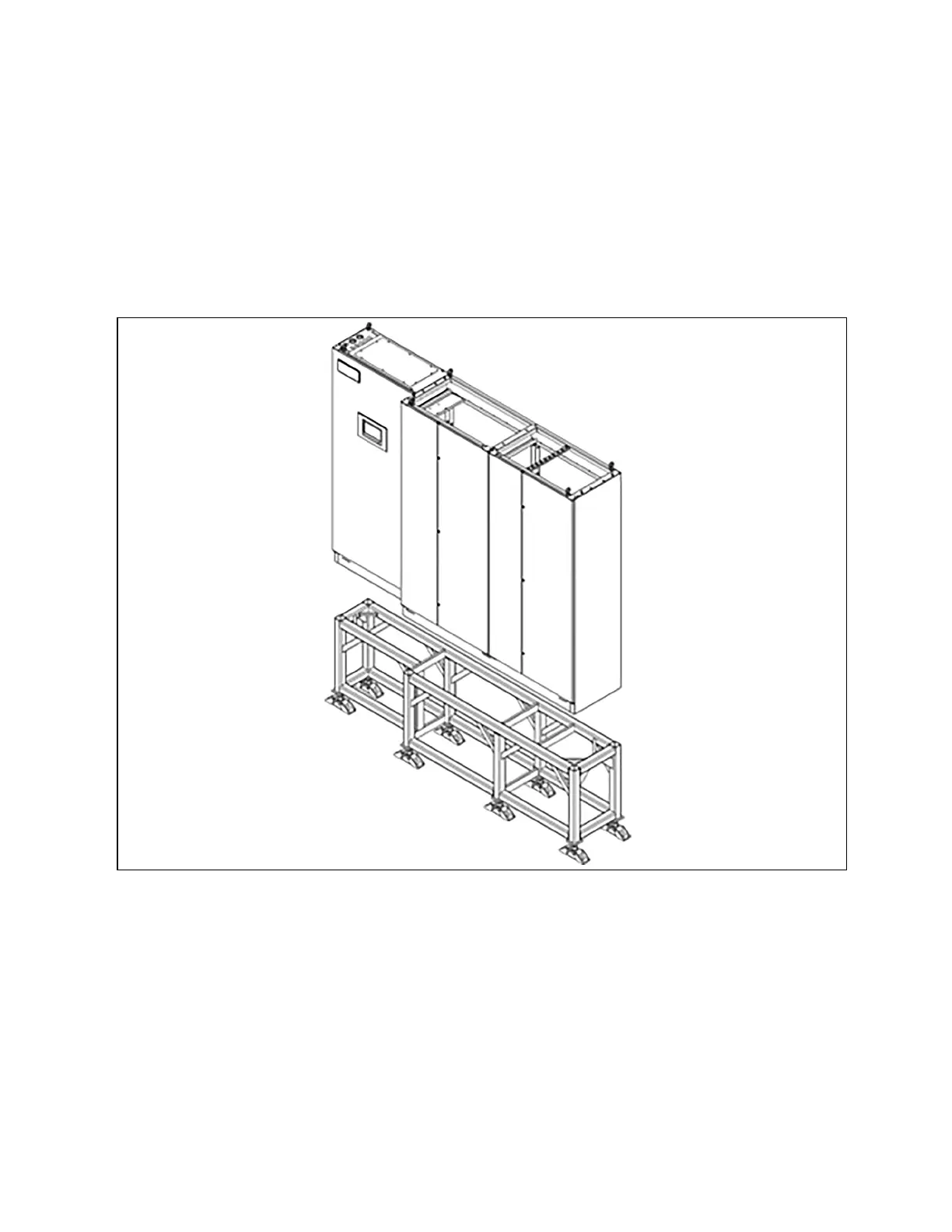

Figure 4.9 Vertiv™ CoolPhase CDU Floorstand Details
4.5.5 Securing Unit to Floorstand
1. Insert provided attachment brackets into eight indicated slots (four on both sides) of unit frame base. Refer to
Figure 4.10 on the facing page , Figure 3.
2. Using holes in attachment brackets as a template, drill two 7/32" holes into unit frame base and four 7/32" holes
into floorstand. Refer to Figure 4.10 on the facing page , Figure 4.
3. Install six provided self-drilling screws through each attachment bracket, into unit frame base and floorstand.
Refer toFigure 4.10 on the facing page , Figure 5.
34 Proprietary and Confidential ©2024 Vertiv Group Corp.
4 Equipment Inspection and
Handling
Vertiv™ CoolPhase CDU Installer/User Guide
