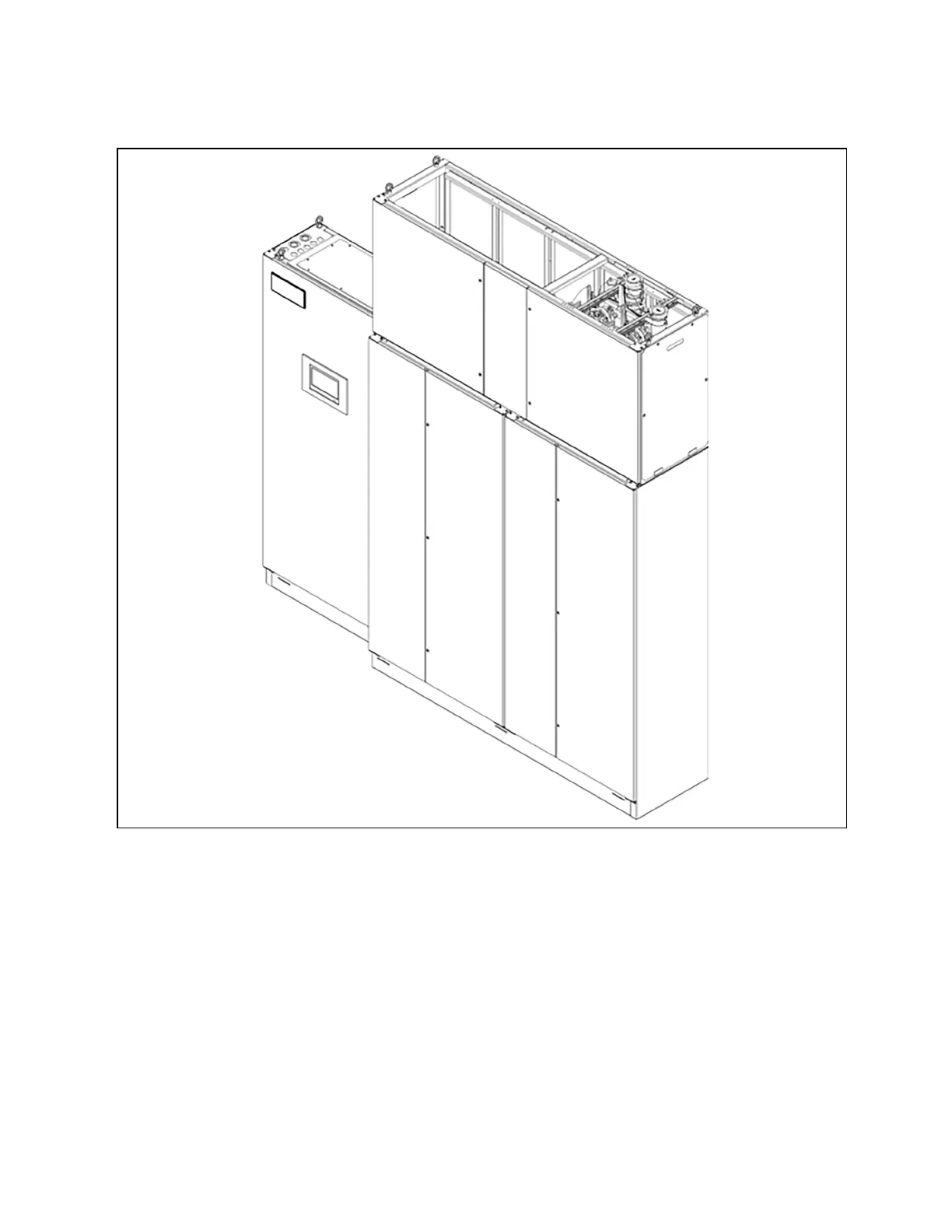

Figure 4.13 Vertiv™ CoolPhase CDU Assembled
4.6.2 Securing Unit to Concrete Slab Floor
Mounting requirement details such as anchor brand, type, embedment depth, edge spacing, anchor-to-anchor spacing,
concrete strength, special inspection, and attachment to non-building structures must be outlined and approved by engineer
of record for project or building.
Insert provided attachment brackets into eight indicated slots (four on both sides) of unit frame base. Refer to Figure 4.14 on
the facing page . Using holes in attachment brackets as a template, drill two 7/32" holes into unit frame base and two 7/32"
holes into concrete slab. Install two provided self-drilling screws through each attachment bracket, into unit frame base.
38 Proprietary and Confidential ©2024 Vertiv Group Corp.
4 Equipment Inspection and
Handling
Vertiv™ CoolPhase CDU Installer/User Guide
