Vertiv CoolPhase CDU - Unpacking;Removal of the Upper Module

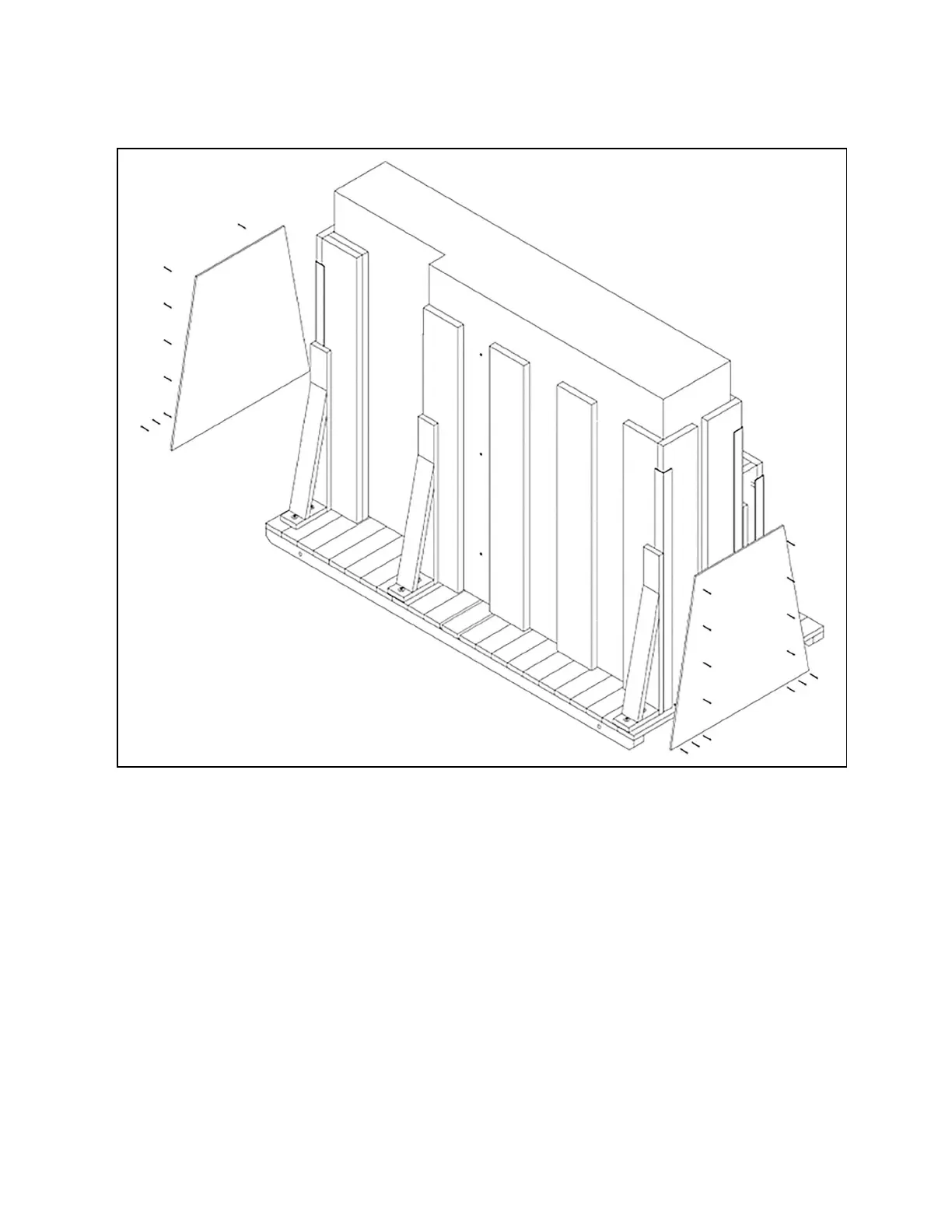

Figure 4.3 Vertiv™ CoolPhase CDU Shipping Bracket Removal
4.4.2 Unpacking/Removal of the Upper Module
• Move packaged unit to area for installation or to staging preparation area.
• Remove exterior package material from the upper module of the unit.
• Remove end panels from the upper module, set aside for re-attachment.
• Remove fasteners securing the upper module to the shipping skid. Refer to Figure 4.5 on page30 , Detail B.
• Re-attach the upper module end panels.
• Attach the recommended lifting device or site appropriate lifting device to all lift lugs on top of the upper module.
• Lift the upper module off the shipping skid and away from the lower module.
• Place the upper module in a protective location until required for final installation.
