4.4 Unpacking the Vertiv™ CoolPhase CDU Domestic Units
Remove the stretch wrap and exterior packaging material from the units.

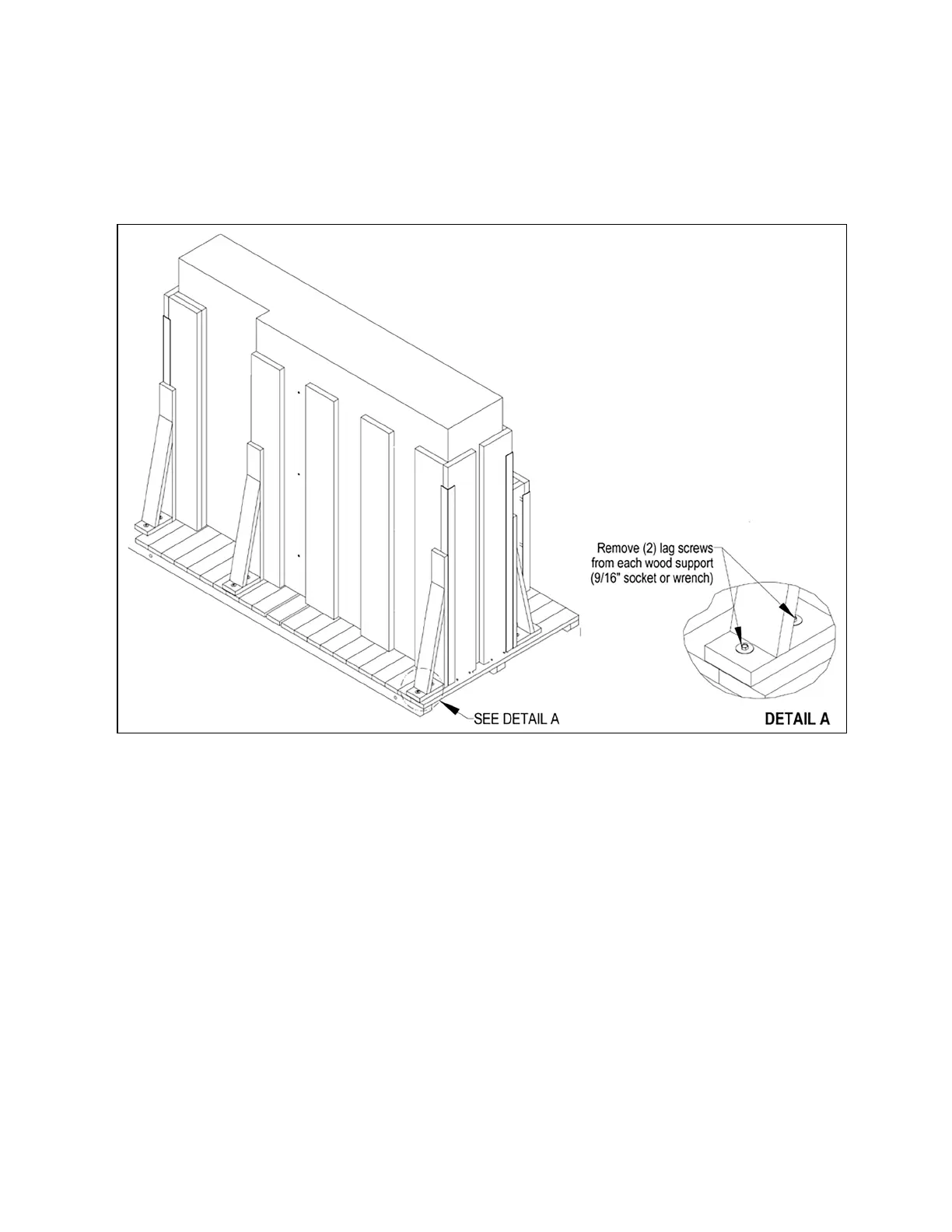

Figure 4.2 Packaged CoolPhase CDU
4.4.1 Shipping Bracket Removal, Lower Module
• Remove plywood panels from each end of the packaged unit. See Figure 4.3 on the next page .
• Use a 9/16-in. socket drive to remove 12 lag screws from six shipping brackets. Refer to Detail A in Figure 4.2
above .
• Remove lag screws securing the five wood supports.
• Remove wood supports.
