3.2 Preparing a Concrete Slab
• Sweep the slab clean.
• Lay out the final location of the unit on the slab, using either a chalk line or tape, see Figure 3.2 below .
• Using a laser level or optical level, locate the high point on the slab and mark it, see Figure 3.2 below .

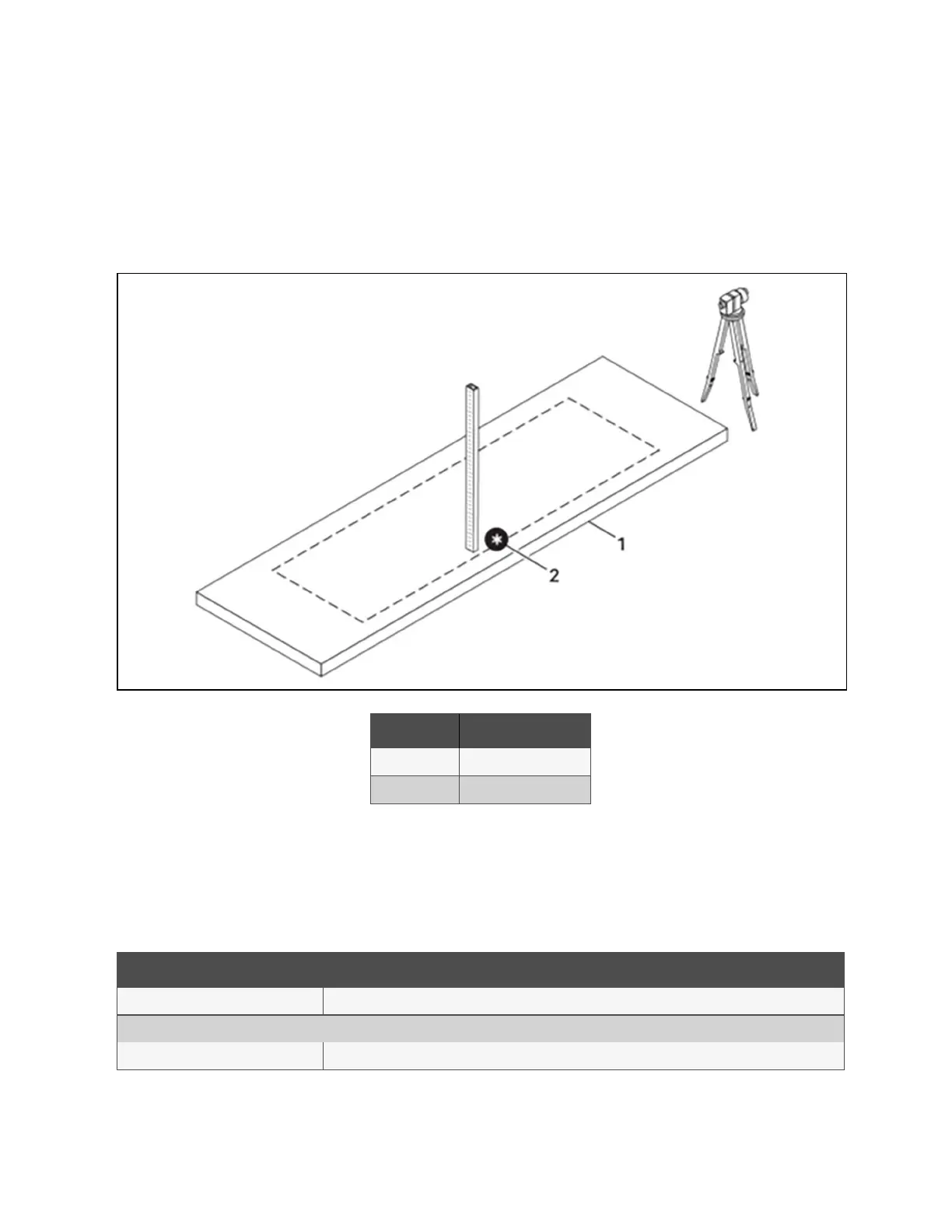

Figure 3.2 Unit and High Point Marking on Concrete Slab
Item Description
1 Concrete slab
2 High point
3.3 Planning Dimensions
The unit and floor stand dimensions are described in the submittal documents included in Submittal Drawings on page107 .
The following table lists the relevant documents by number and title.
Document Number Title
20000058 CoolPhase CDU Cabinet Dimensional Data 300kW
Floorstand
20000060 CoolPhase CDU Floorstand Dimensional Data 300kW
Table 3.2 Vertiv™ CoolPhase CDU Dimension Planning Drawings
3 Pre-installation Preparation and
Guidelines
Proprietary and Confidential ©2024 Vertiv Group Corp. 23
Vertiv™ CoolPhase CDU Installer/User Guide
