4.5.2 Floorstand Preparation
1. Position floorstand at final installation location.
2. Leveler foot pads to be added (if specified by engineer of record) to bottom side of adjustable leveler feet. Refer
to Figure 4.8 below (detail figure 1).
3. Vertical height can be adjusted and tightened using nuts and jam nuts on adjustable leveler feet. Refer to Figure
4.8 below (detail figure 2).
4. Floorstand must be level and all feet must be in contact with floor before proceeding.

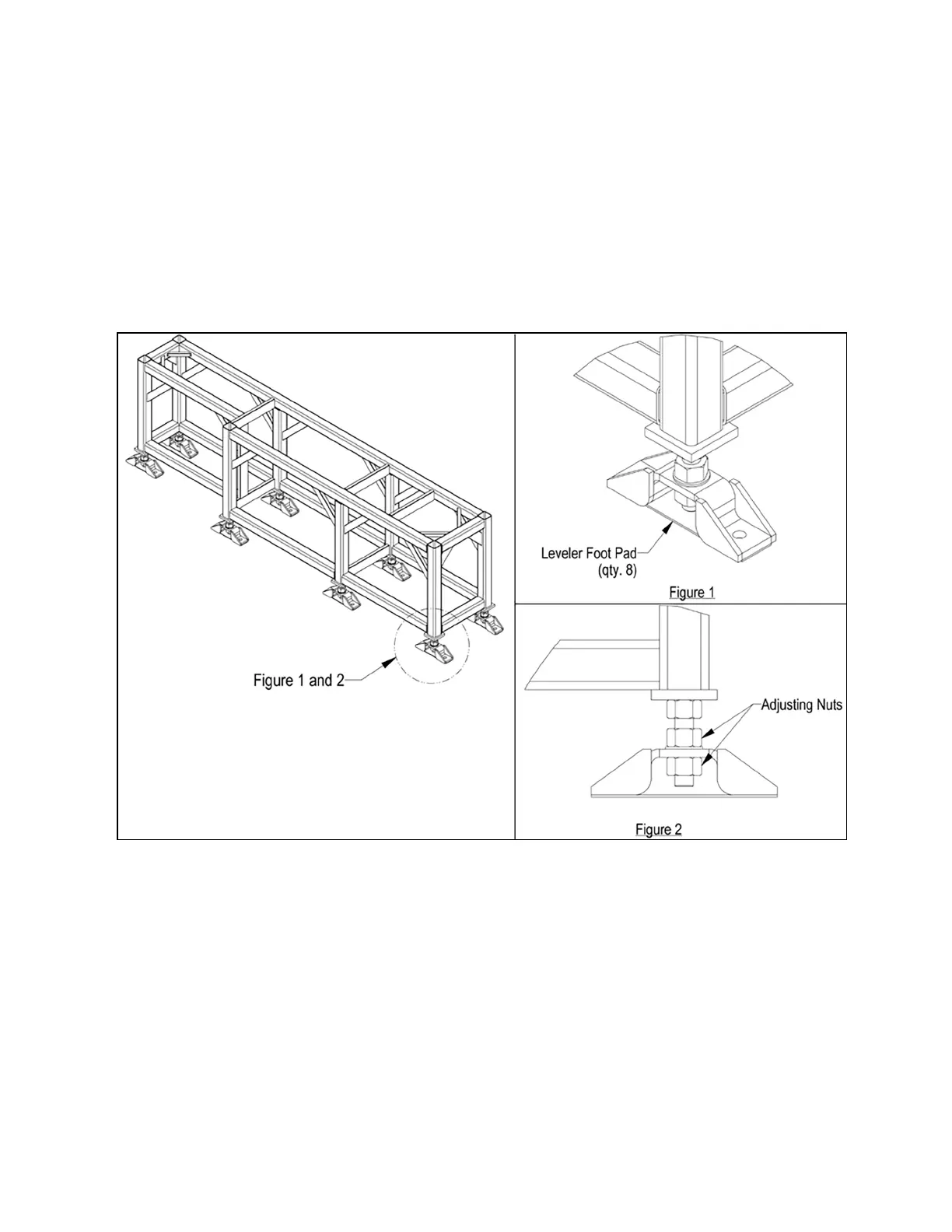

Figure 4.8 Vertiv™ CoolPhase CDU Floorstand Details
4.5.3 Floorstand Anchorage
Mounting requirement details such as anchor brand, type, embedment depth, edge spacing, anchor-to-anchor spacing,
concrete strength, special inspection, and attachment to non-building structures must be outlined and approved by engineer
of record for project or building.
Structural floors and housekeeping pads must also be approved by project or building structural engineer of record.
Installing contractor is responsible for proper installation of all anchors and mounting hardware, and observing mounting
requirements outlined by engineer of record.
