Vertiv CoolPhase CDU - Refrigerant Pipe Connection Sizes; Refrigerant Connection Locations

5.1 Refrigerant Pipe Connection Sizes
Table 5.1 on the previous page lists the refrigerant copper pipe connections at the Vertiv™ CoolPhase CDU.
5.2 Refrigerant Connection Locations
All refrigerant and secondary circuit fluid connections are located on the top of the Vertiv™ CoolPhase CDU. See Figure 5.1
below .

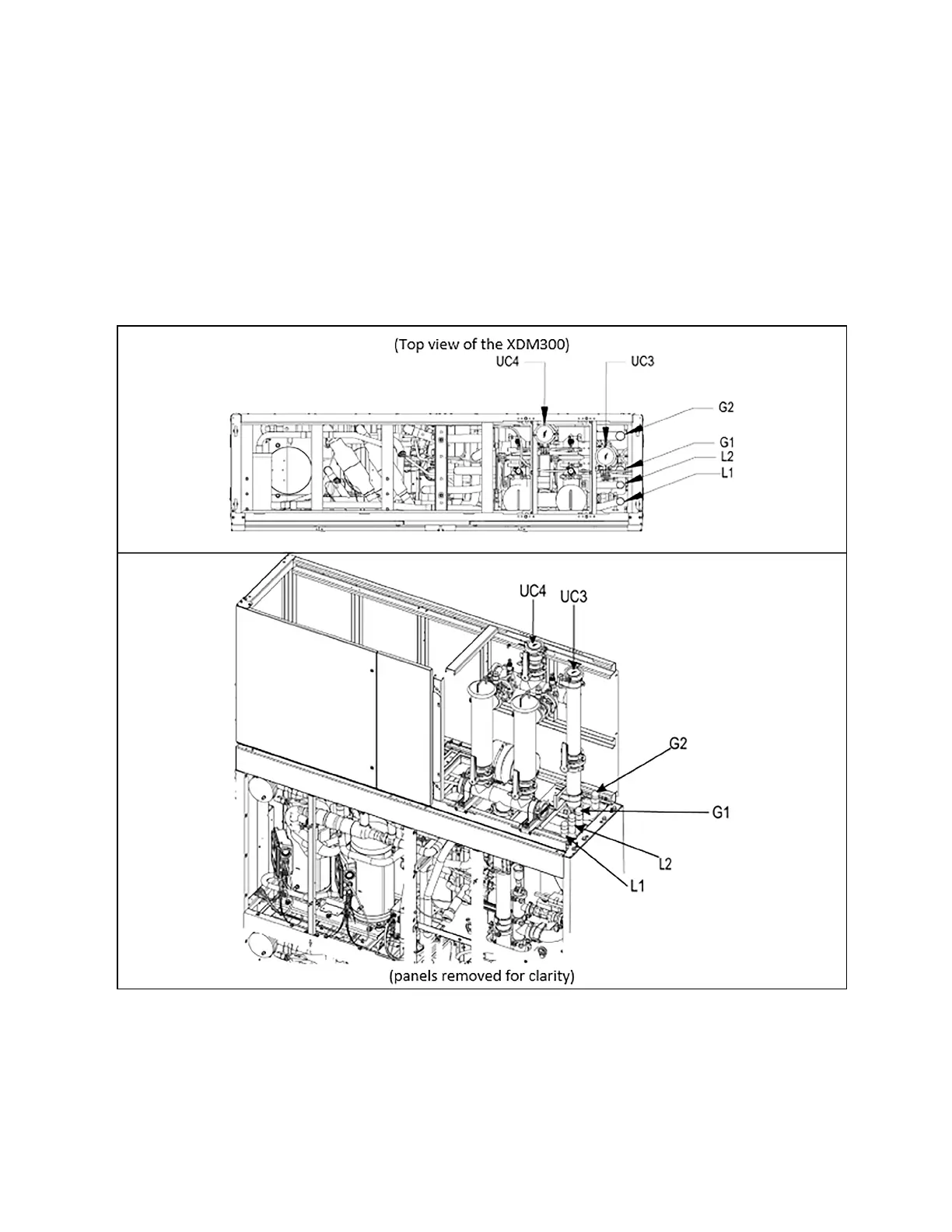

Figure 5.1 Connection Locations (secondary fluid and refrigerant connection locations)
