Vertiv CoolPhase CDU - Piping Connections

REV : B
REV DATE : 3/24
10032073
Page :2 /2
LIEBERT® MCV MCV430 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

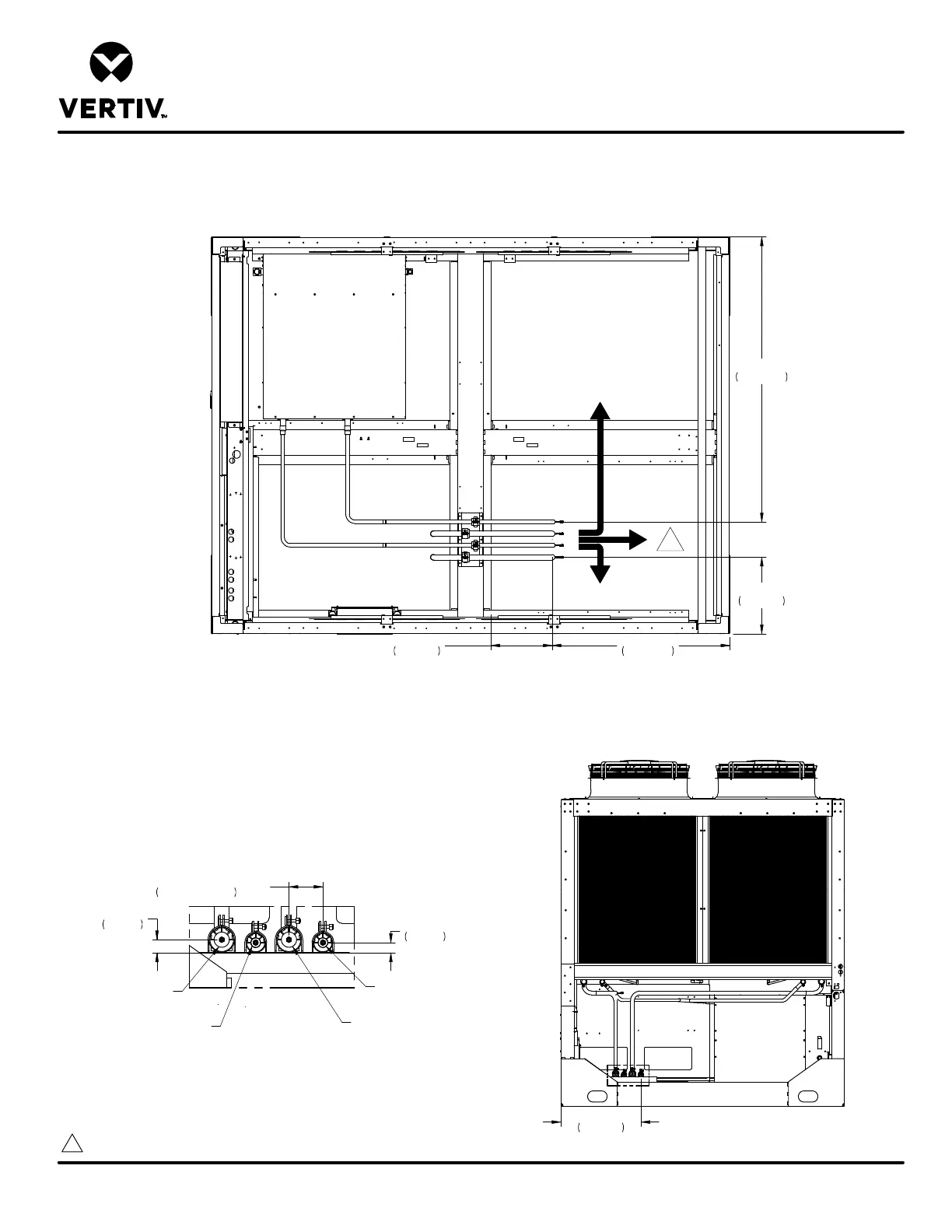

PRIMARY CONNECTION LOCATIONS
LIEBERT
®
HEAT REJECTION SKID
1-3/8" Liquid Line
Circuit 2
1-3/8" Liquid Line
Circuit 1
1-5/8" Hot Gas Line
Circuit 2
1-5/8" Hot Gas Line
Circuit 1
Rear view of Unit
B
7/8"
23mm
TYP.
1 1/8"
30mm
TYP.
3" ±1/2"
77mm ±13mm
TYP.
DETAIL B
Piping Connections
Rear view of Unit
28 1/2"
725mm
Circuit 2
Circuit 1
15 5/8"
398mm
45 3/8"
1153mm
19 1/2"
497mm
72 3/4"
1847mm
NOTE:
1. For Top View, condenser section removed for clarity.
2. Piping connections can exist out left or right side or rear of the unit.
Front
of Unit
Right side of Unit
Rear
of Unit
Left side of Unit
Top View
Multiple customer connection locations
Main Electrical Panel
2
