LIEBERT® MCV MCV430 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

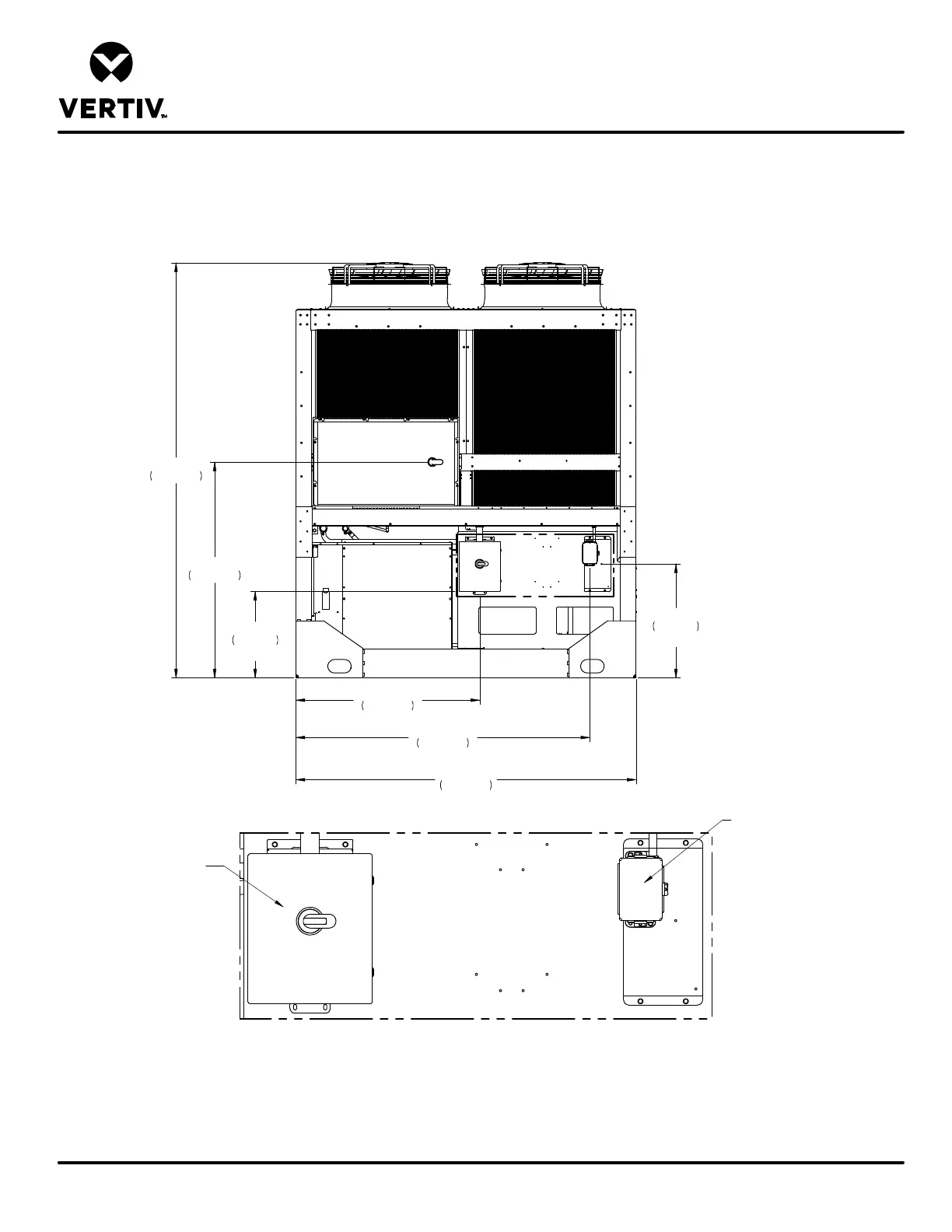

PRIMARY CONNECTION LOCATIONS
LIEBERT
®
HEAT REJECTION SKID
Notes:
1. Field to provide hole for conduit for high voltage disconnect box
and low voltage distribution panel.
Front of Unit
Circuit 1 Circuit 2
54 3/4"
1390mm
Center of Box
87 1/2"
2223mm
Center of Box
101 1/4"
2572mm
25 3/4"
655mm
Bottom of Box
34"
864mm
Bottom of Box
A
DETAIL A
(Field Electrical Connections)
High Voltage
Customer
Connection
LowVoltage
Customer
Connection
123 1/2"
3138mm
64 1/4"
1632mm
