PAGE: 3 OF 3
TO FILL OUT HEADER INFORMATION:
1. TOP LINE SHALL BE PRODUCT NAME, I.E. LIEBERT CW, LIBERT DSE, LIEBERT MINIMATE2, ETC.
a. THIS LINE OF TEXT SHALL ALWAYS BE IN THE TEXT BLOCK ABOVE THE BLACK DIVIDING LINE
WITH THE VERTIV LOGO.
b. THE TEXT IN THE PRODUCT LINE SHALL BE “ARIAL NARROW”, BOLD, SIZE 0.25”
2. FIRST LINE OF TEXT BELOW THE BLACK DIVIDING LINE SHALL BE USED FOR THE DRAWING TITLE,
I.E. CABINET DIMENSIONAL DATA, GENERAL ARRANGEMENT, COMPONENT LOCATION.
a.THE TEXT IN THIS LINE SHALL BE “ARIAL NARROW”, BOLD, SIZE 0.20”.
3. LINE UNDER DRAWING TITLE SHALL BE USED FOR THE DESCRIPTION OF, OR SPECIFIC PRODUCT
INFORMATION THAT THE SUBMITTAL AFFECTS, I.E. CW305-415, DA080 DOWNFLOW UNITS W/ EC FANS, ETC.
a.THE TEXT IN THIS LINE SHALL BE “ARIAL NARROW”, BOLD, SIZE 0.18”.
TEXT, DIMENSIONING, & REVISION INFORMATION:
1. APPROVED FONT STYLE FOR ALL SUBMITTAL TEXT AND DIMENSIONING IS “ARIAL NARROW”,
MINIMUM HEIGHT OF 0.08”
2. ALL TEXT IN FOOTER MUST BE “ARIAL NARROW” FONT SIZE 0.094”.
3. REVISION BLOCK TO BE FILLED OUT FOR EACH REVISION AFTER 0 WITH REVISION NUMBER,
EXPLANATION OF REVISION, PERSON MAKING AND APPROVING REVISION, AND DATE.
PDF CREATION (USING MICROSOFT PRINT OPTION)
1. WHEN COMPLETED, A PDF IS TO BE CREATED USING THE MICROSOFT PRINT TO PDF CREATER UNDER
THE PRINT COMMAND.
2. ONCE THE PDF HAS BEEN CREATED, THE USER IS TO OPEN IT IN ADOBE WRITER AND CREATE A SECOND
PDF WHICH WILL ALLOW THE USER TO GENERATE A BLACK AND WHITE ONLY FILE. THIS GENERATED PDF
WILL BE USED FOR PUBLICATION OF THE SUBMITTAL.
PDF CREATION (USING EXPORT OPTION)
1. WHEN COMPLETED, A PDF IS TO BE CREATED USING SAVE AS<->EXPORT<-> PDF.
2. PDF EXPORT SETTING SHOULD BE KEPT AS PER BELOW,
GENERAL SETTING -
LINECAP - ROUND
LINEJOIN - ROUND
USE PENTABLE - YES
LINESTYLE - DASHED HIDDEN LINES
3. USE PENTABLE RELEASED GLOBALLY ON V DRIVE FOR COLOR AND BW PRINTS IF AVAILABLE.
WORD DOCUMENTS (FOR TABLE CREATION ALSO)
1) WORD DOCUMENTS CAN BE IMPORTED BY INSERTING AN OBJECT, AND SELECTING THE CREATE FROM FILE, BROWSE
AND SELECT THE FILE
(DO NOT LINK THE FILE).
THIS WILL ALLOW THE USER TO EDIT THE DOCUMENT BY DOUBLE CLICKING ON IT INSIDE THE
DRAWING. A WORD DOCUMENT WILL BE USED FOR TEXT AND FOR TABLES AT THIS TIME.
22.7
[577]
38.1
[968]
76.6
[1945]
20.3
[516]
12.9
[328]
13.7
[347]
16.6
[422]
19.5
[495]
9.3
[237]
15.7
[400]
26.8
[681]
15.1
[384]
POINT DESCRIPTION X in. (mm) Y in. (mm) Z in. (mm) Connection Size
SV1 Secondary Circuit Customer Vent port 26.8 (681) 19.5 (495) 38.1 (968)
5/8" (16mm)
SV2 Secondary Circuit Customer Vent port 20.3 (516) 12.9 (328) 22.7 (577)
SV3 Secondary Circuit Customer Vent port 15.1 (384) 13.7 (347) 22.7 (577)
SV4 Secondary Circuit Customer Vent port 9.3 (237) 19.5 (495) 38.1 (968)
SV5 Secondary Circuit Customer Vent port 15.8 (400) 16.6 (422) 76.6 (1945)

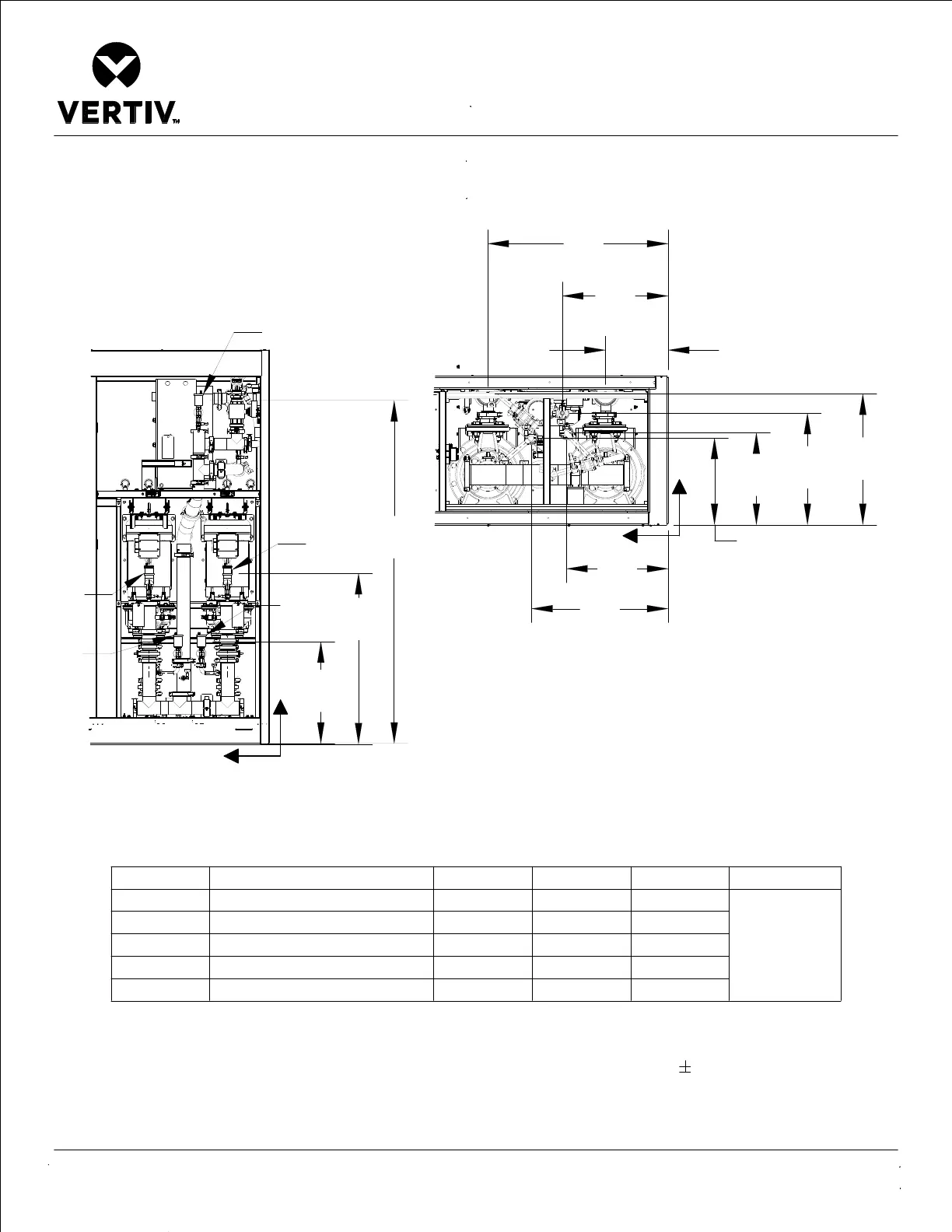

COOLPHASE CDU
PRIMARY CONNECTION LOCATIONS
XDM300
FORM NO. DPN004906 REV C
20000057
REV: B
REV DATE: 08/2024
0
FRONT VIEW
Y
X
Notes:
BOTTOM VIEW
0
Z
X
SV2
SV3
SV5
1. Drawing not to scale. All dimensions from right corner on service side and have a tolerance of
1/2" (13mm).
2. All dimensions are in inches [mm].
3. Unit has internally installed traps on the discharge lines. For rises over 25ft. (7.6m), trap every 20ft. (6m) or evenly divided.
SV1
SV4
