Vertiv CoolPhase CDU - Unpacking;Removal of the Lower Module

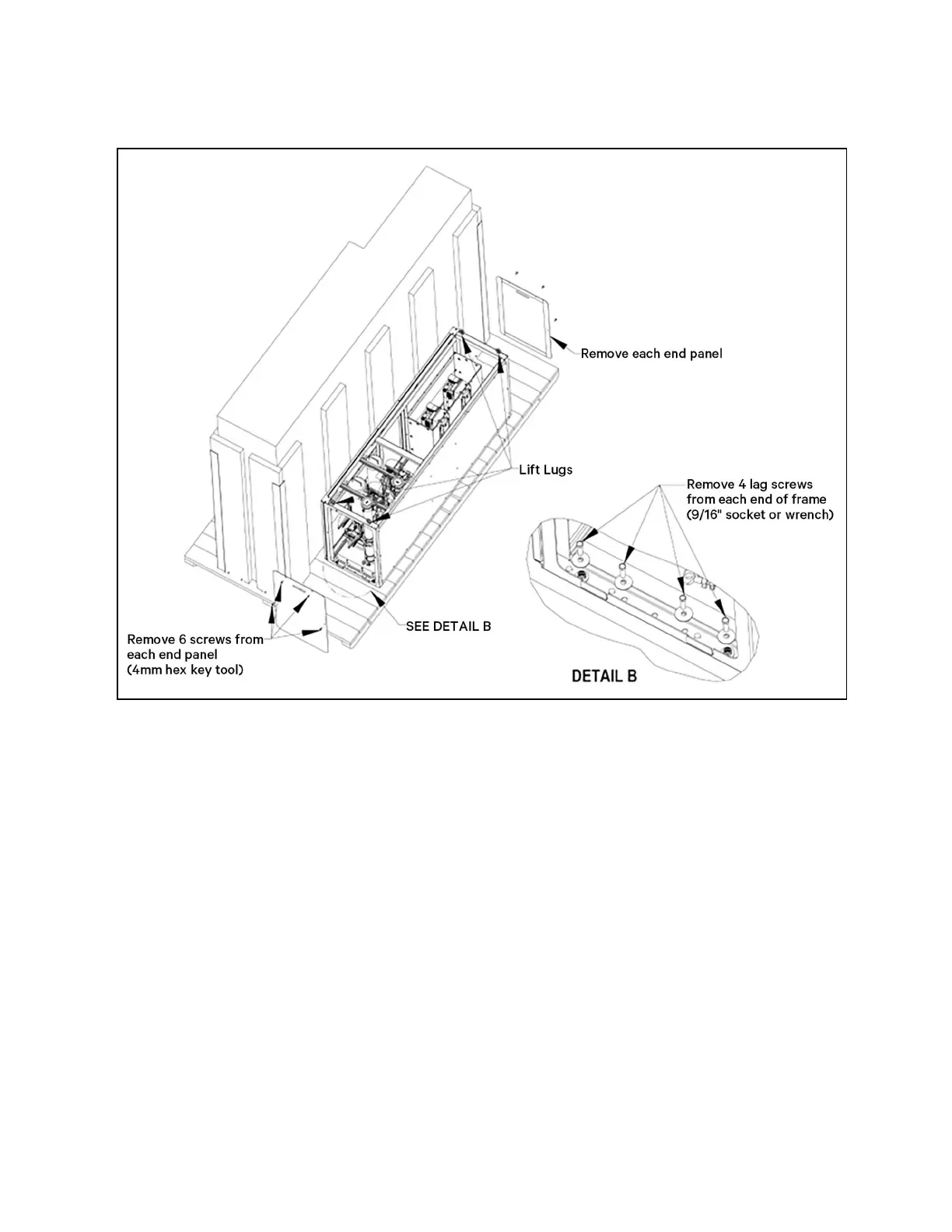

Figure 4.5 Vertiv™ CoolPhase CDU Shipping Bracket Removal
4.4.3 Unpacking/Removal of the Lower Module
• Remove exterior package material from the lower module of the unit.
• Remove fasteners securing five shipping brackets to the shipping skid. Refer to Figure 4.6 on the facing page ,
Detail C.
• Remove shipping brackets from the lower module of unit. Refer to Figure 4.6 on the facing page , Detail C.
