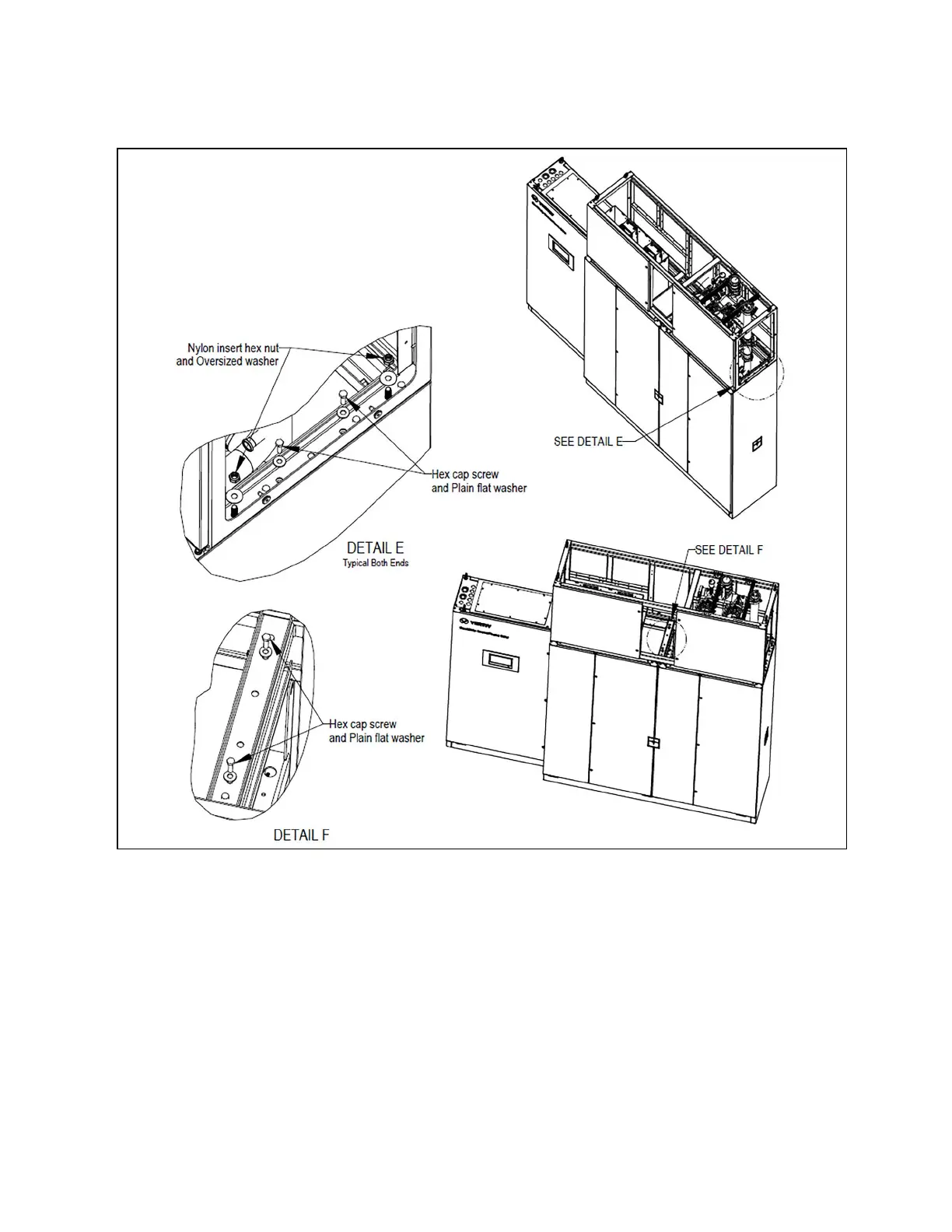

Figure 4.17 Upper Module Attachment
4. Locate removed upper module end panels and fasteners. Re-attach panels to each end of the upper module. See
Figure 4.18 on the facing page .
5. Disengage 1/4-turn fasteners on front doors of the upper module. Open front doors. Locate removed upper
module center panel. Re-attach panel and tighten fasteners. Close front doors and re-engage 1/4-turn fasteners.
