Vertiv Liebert APS series User Manual

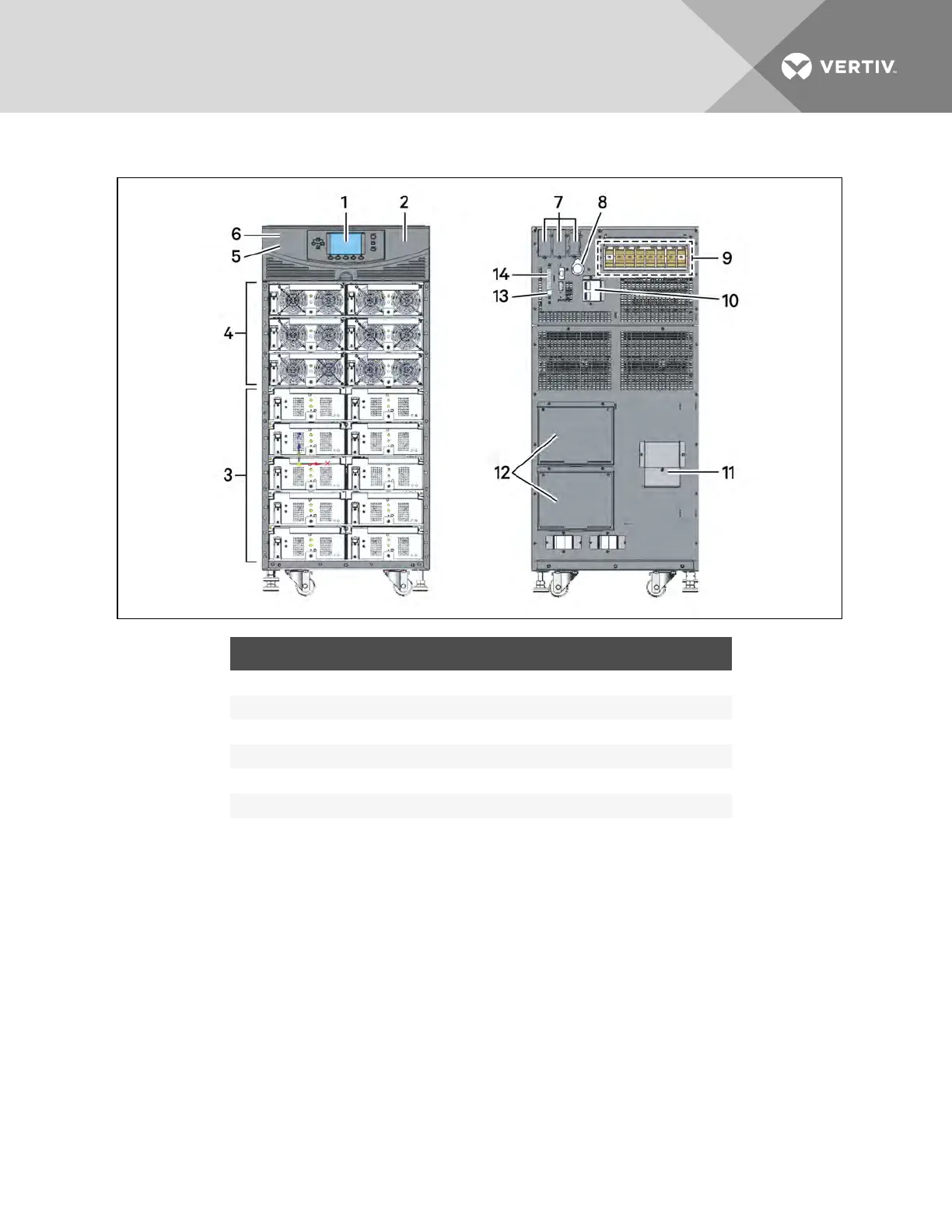

Figure 2.1 16-bay transformer-free UPS
ITEM DESCRIPTION ITEM DESCRIPTION
1 User-interface module 8 System-enable switch
2 System-control module (under cover) 9 Power input and output terminals
3 Bays for battery modules 10 Output breaker
4 Bays for power, charger, or battery modules 11 External-batter-cabinet connector
5 Input breaker (under cover) 12 PODports
6 Manual bypass breaker (under cover) 13 USB port
7 Liebert IntelliSlot ports 14 Dry contacts and REPO connections
Vertiv | Liebert® APS™ Installer/User Guide | 12
