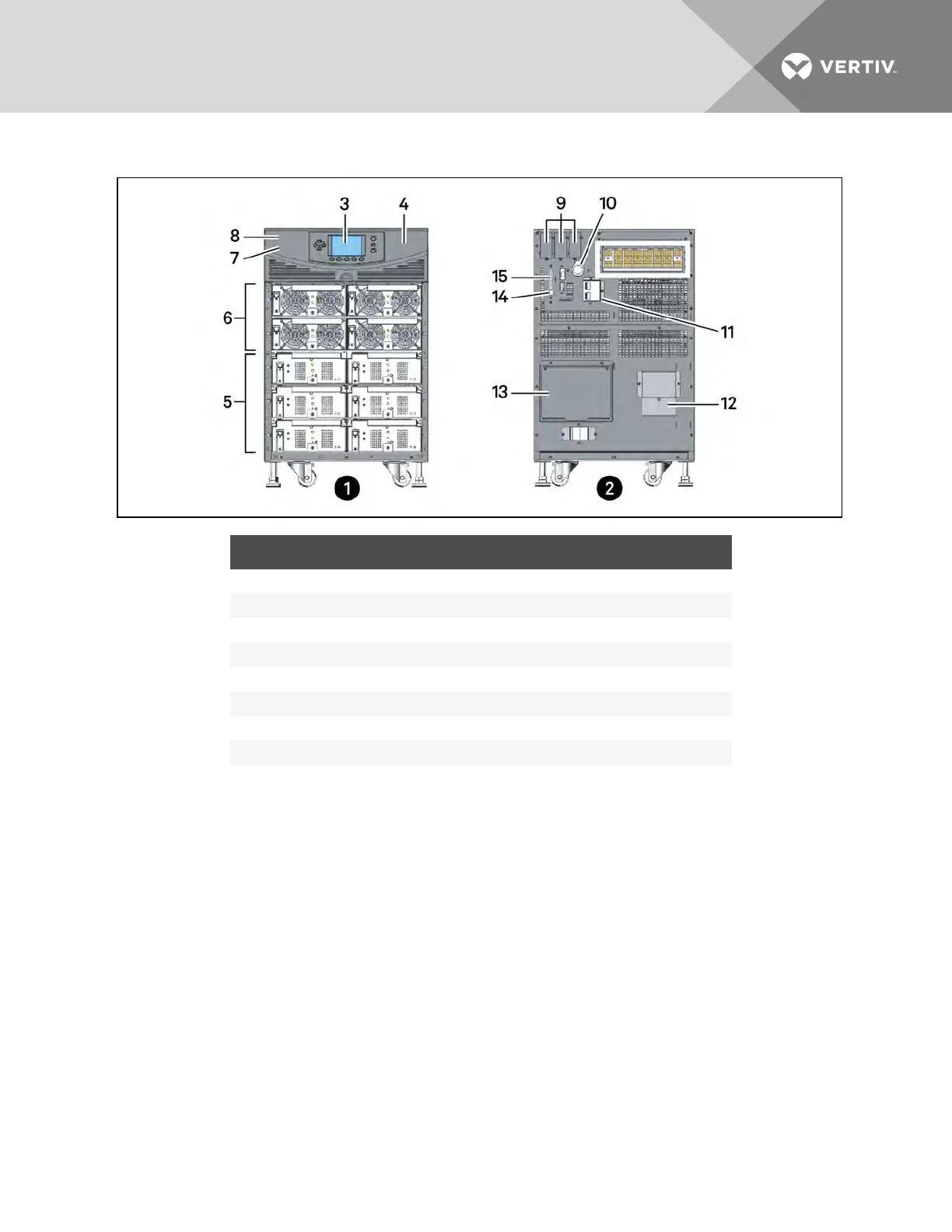

Figure 2.2 10-bay transformer-free UPS
ITEM DESCRIPTION ITEM DESCRIPTION
1 Front view with bezels removed 9 Liebert IntelliSlot ports
2 Rear view 10 System-enable switch
3 User-interface module 11 Output breaker
4 System-control module (under cover) 12 External-batter-cabinet connector
5 Bays for battery modules 13 PODports
6 Bays for power, charger, or battery modules 14 USB port
7 Input breaker (under cover) 15 Dry contacts and REPO connections
8 Manual bypass breaker (under cover)
