2. Install the rack-mount shelf on the corresponding position between 1U space and 2U space on
the bottom of the rack, as shown in Figure 3.5 below.

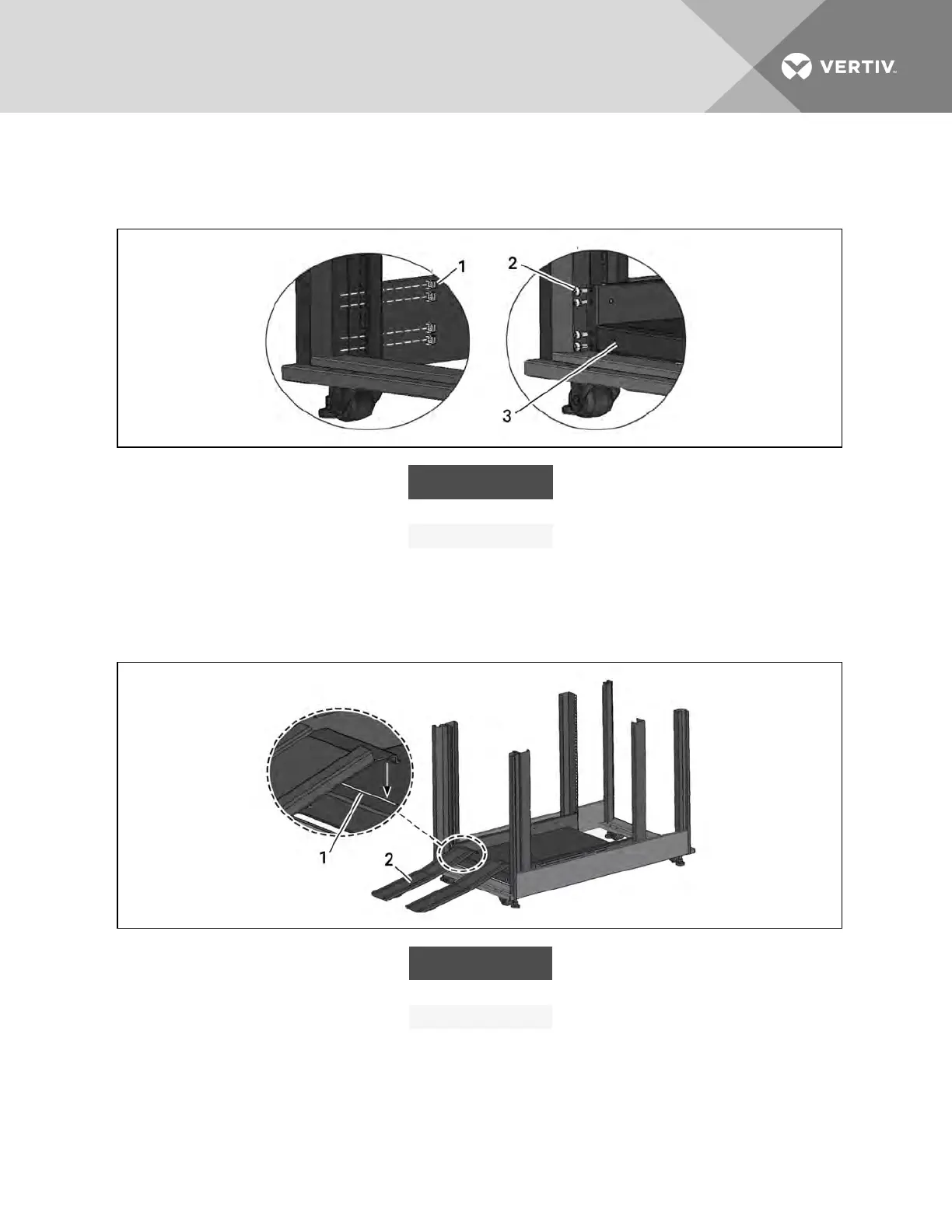

Figure 3.5 Install cage nuts and tray
ITEM DESCRIPTION
1 Cage nut
2 Screw (16 places)
3 Tray
3. Install the guide rails (ramp) in the mounting slot at the front of the tray, as shown in Figure 3.6
below.
Figure 3.6 Install the guide rails
ITEM DESCRIPTION
1 Mounting slot
2 Guide rail
Vertiv | Liebert® APS™ Installer/User Guide | 27
