Vertiv Liebert Mini-Mate2 - Page 12

Vertiv Liebert Mini-Mate2
92 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

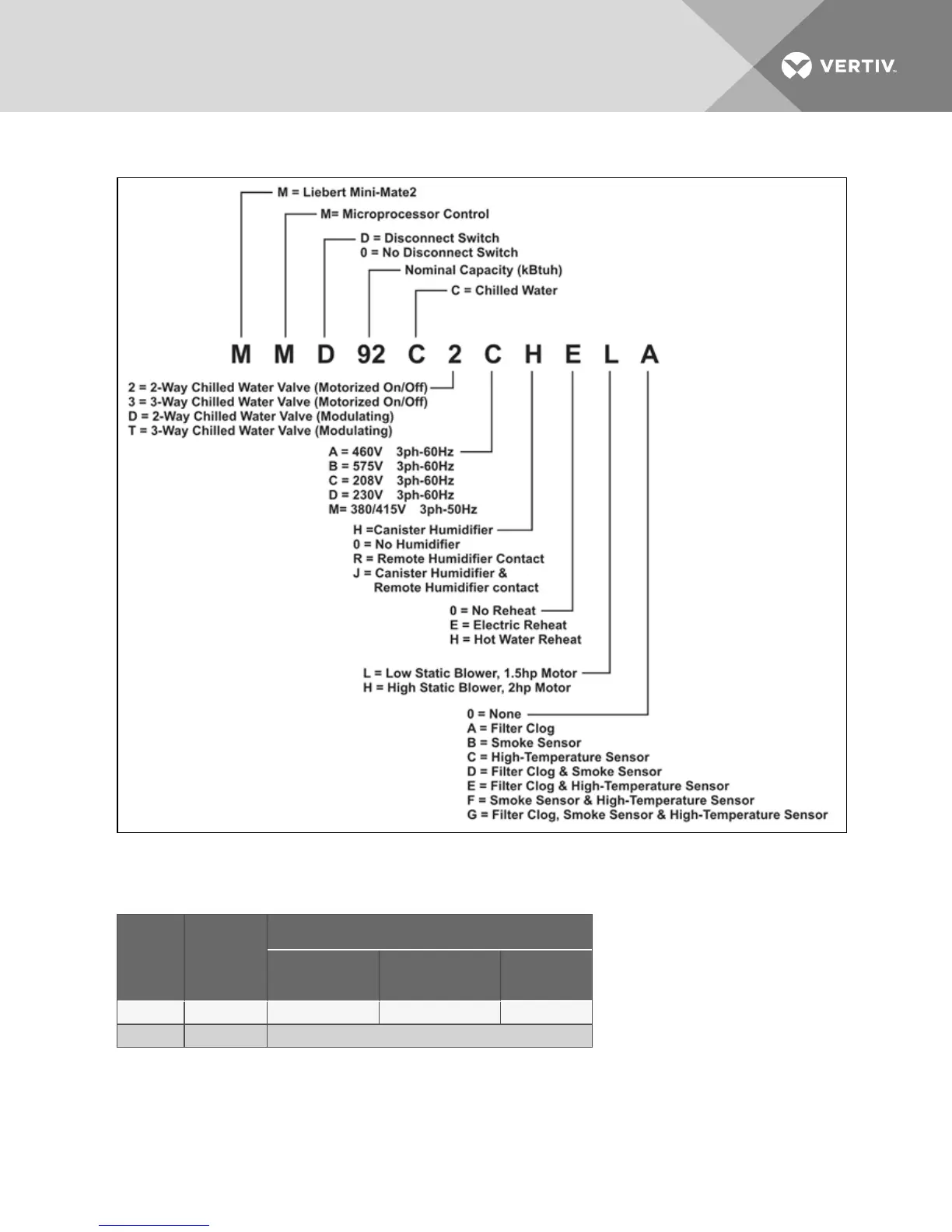

Figure 2.5 Chilled water systems
Nominal
Capacity
Cooling Unit
Condensing Unit
Indoor Air-Cooled
Centrifugal Fan
Outdoor Air-Cooled
Propeller Fan
Indoor Water/
Glycol
5 Tons MMD60E MCD65A PFH067A MCD69W
5 Tons MMD92C Self Contained – Chilled Water
Table 2.1 System configurations—60 Hz
Vertiv | Liebert Mini-Mate2—5 ton User Manual | 12
