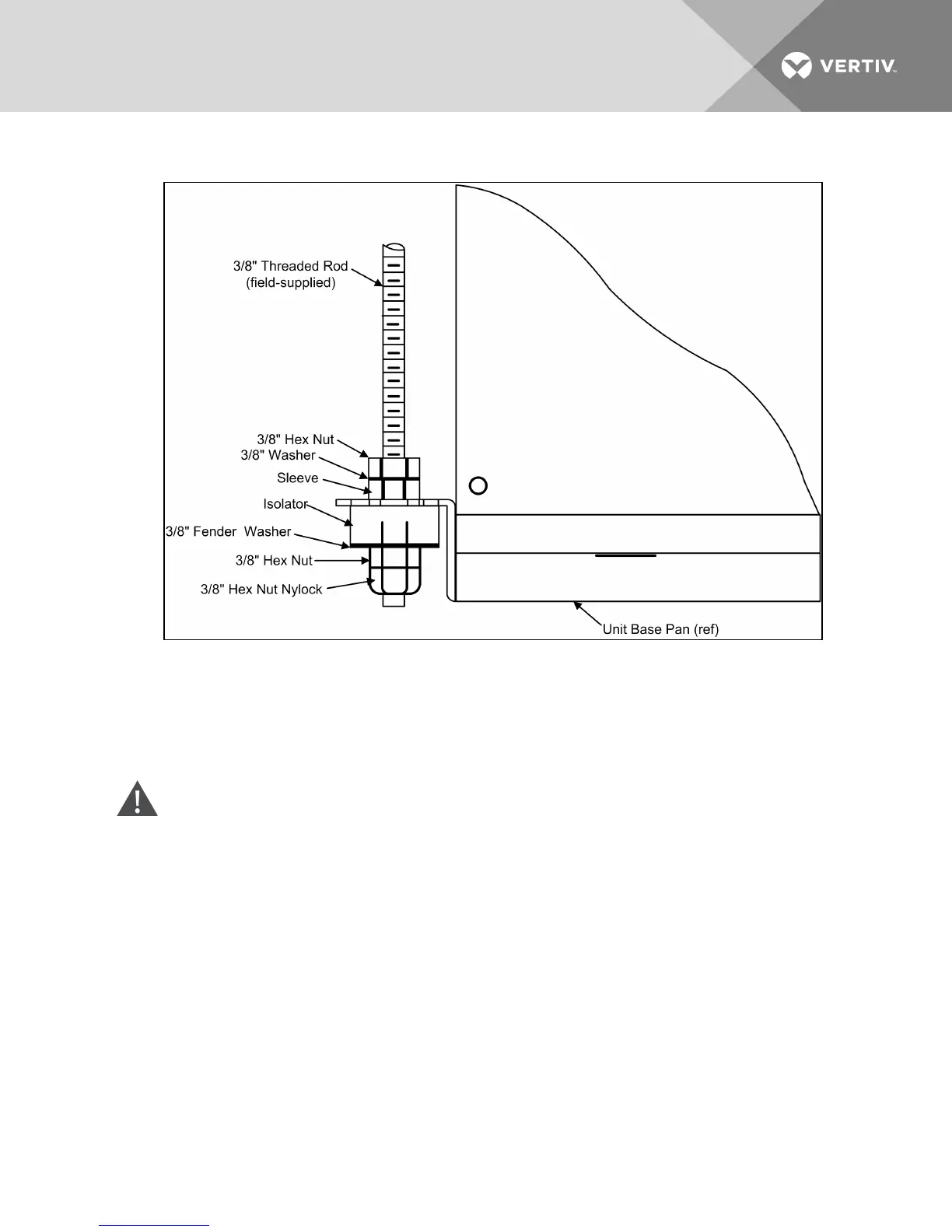

Figure 7.6 Threaded rod and hardware kit installation
7.4.4 Electrical Connections
Each unit is shipped from the factory with internal wiring completed. Refer to electrical schematic when
making connections. Electrical connections to be made at the installation site are:
• Power supply to each ceiling unit.
WARNING! Arc flash and electric shock hazard. Disconnect all electric power supplies and wear
protective equipment per NFPA 70E before working within electric control enclosure. Failure to
comply can cause serious injury or death. The Liebert microprocessor control does not isolate
power from the unit in the Unit Off mode. Some internal components require and receive power
even during the Unit Off mode. The line side of the disconnect switch on the front of the unit
contains live high voltage. The only way to ensure that there is NO voltage inside the unit is to
install and open a remote disconnect switch and check the internal power supply wires with a
voltmeter.
• Control wiring between the evaporator unit and the condensing unit, if applicable.
• Control wiring between the control panel (wallbox) and the evaporator unit control board.
Vertiv | Liebert Mini-Mate2—5 ton User Manual| 36
