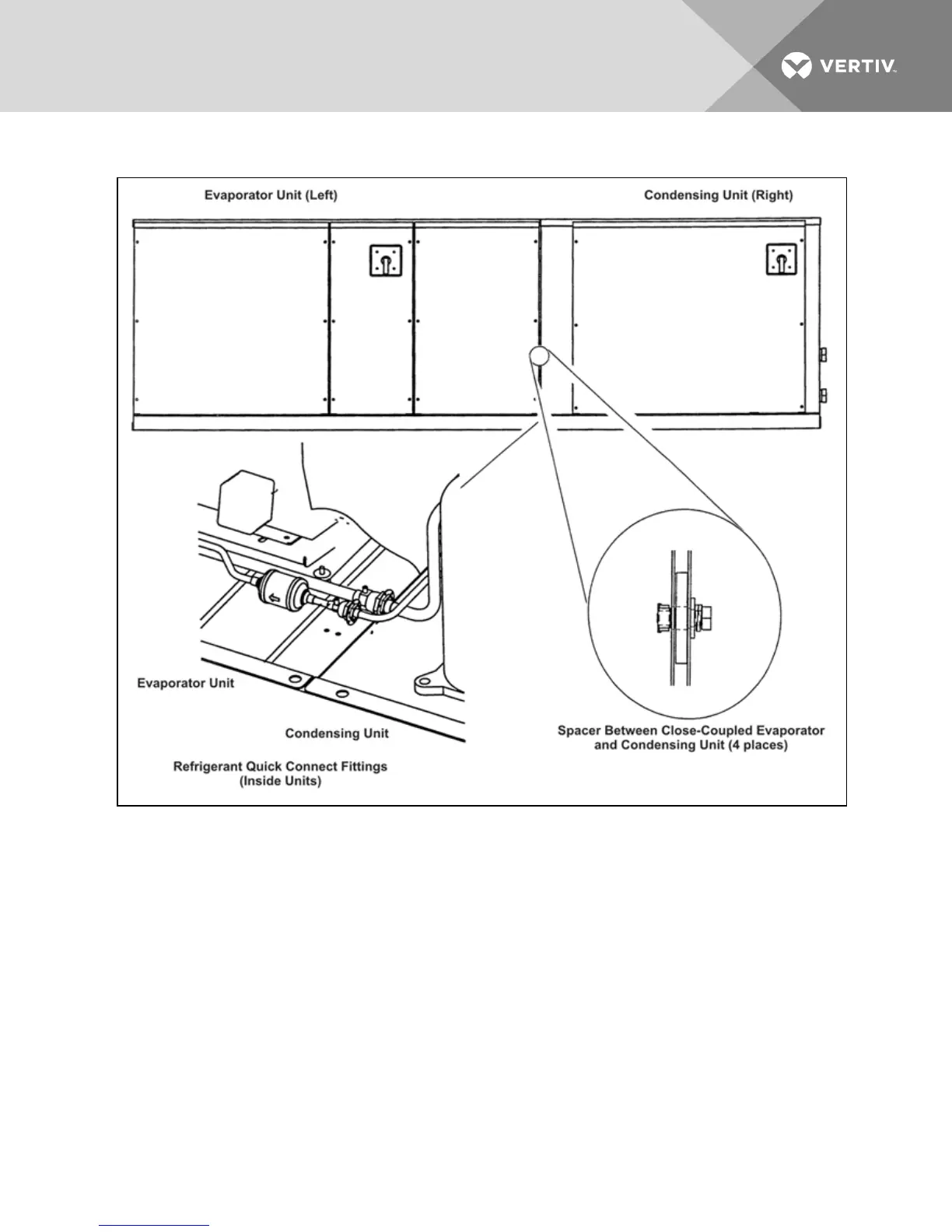

Figure 7.8 Close coupled installation
7.5 Indoor Air-Cooled Centrifugal Fan Condensing Unit Installation
NOTE: Follow all national and local building, electrical and plumbing codes.
7.5.1 Location Considerations
The centrifugal fan air-cooled condensing unit may be located above the dropped ceiling or any remote
indoor area. If noise is of concern, the condensing unit should be located away from personnel. Normal
operating sound may be objectionable if the condensing unit is placed near quiet work areas.
To mount the unit in the ceiling, refer to Installing the Ceiling Units on page28.
7.5.2 Electrical Connections
Refer to Electrical Connections on page36 for general wiring requirements and cautions. Refer to
electrical schematic when making connections. Refer to unit serial tag for full load amp and wire size amp
ratings.
