Vertiv Liebert Mini-Mate2 - Piping Connections; Electrical Connections

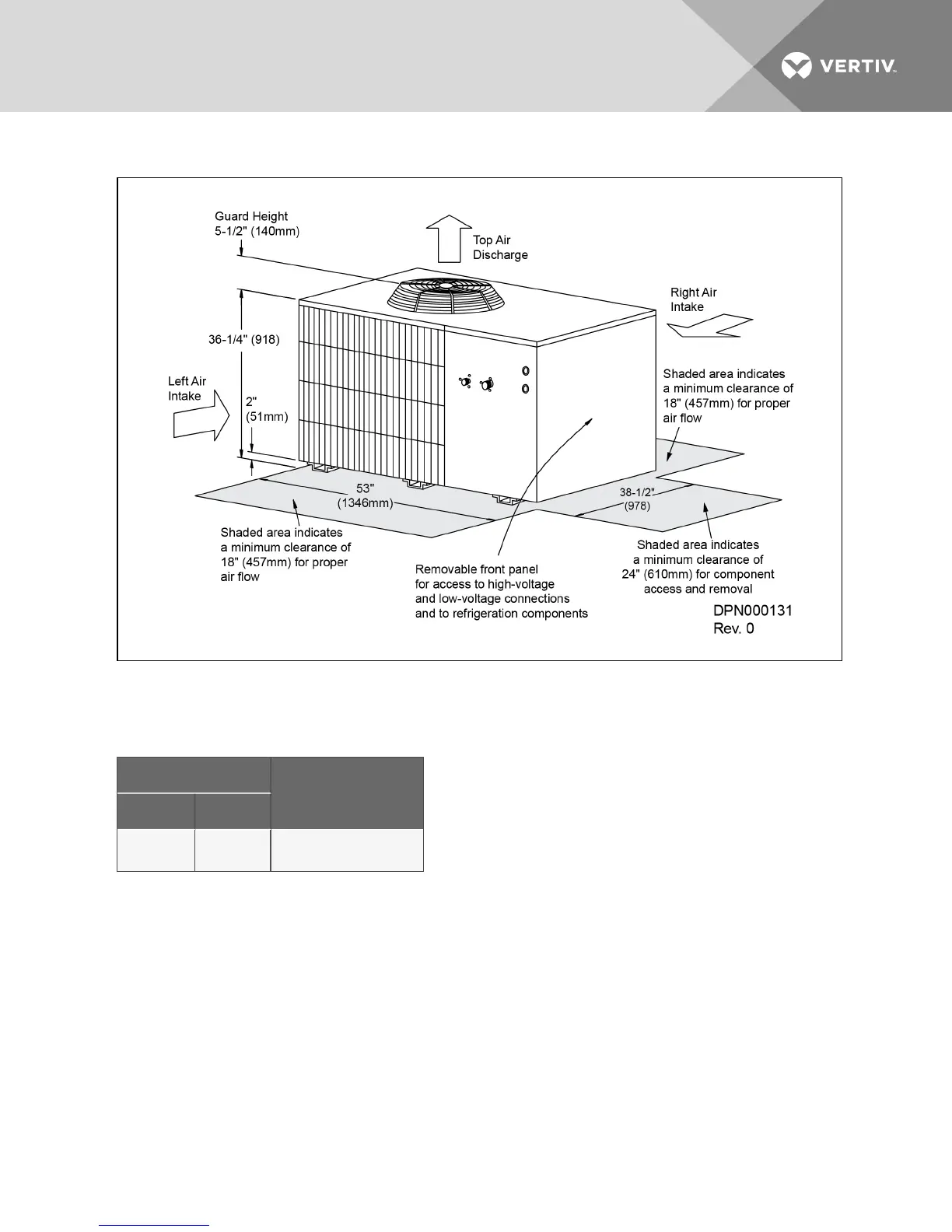

Figure 7.13 Dimensions—Air-cooled systems, high ambient and Quiet-Line condensing module
Model #
Module Net Weight lb. (kg)
60Hz 50Hz
PFH067A- H
PFHZ67A- L
PFH066A- H
PFHZ66A-L
488 (222)
Table 7.13 Net weight, high ambient and
Quiet-Line condensing modules, air-cooled
systems
7.6.2 Piping Connections
Details for refrigerant loop piping are in Piping Connections and Coolant Requirements on page30.
7.6.3 Electrical Connections
Refer Electrical Connections on page36 for general wiring requirements and cautions. Refer to electrical
schematic when making connections.
Power Connections
The outdoor condensing unit requires its own power source and earth ground, with a disconnect switch
(field supplied) to isolate the unit for maintenance.
Vertiv | Liebert Mini-Mate2—5 ton User Manual| 46
