Vertiv | Liebert PEX4 | User Manual 14
Installation

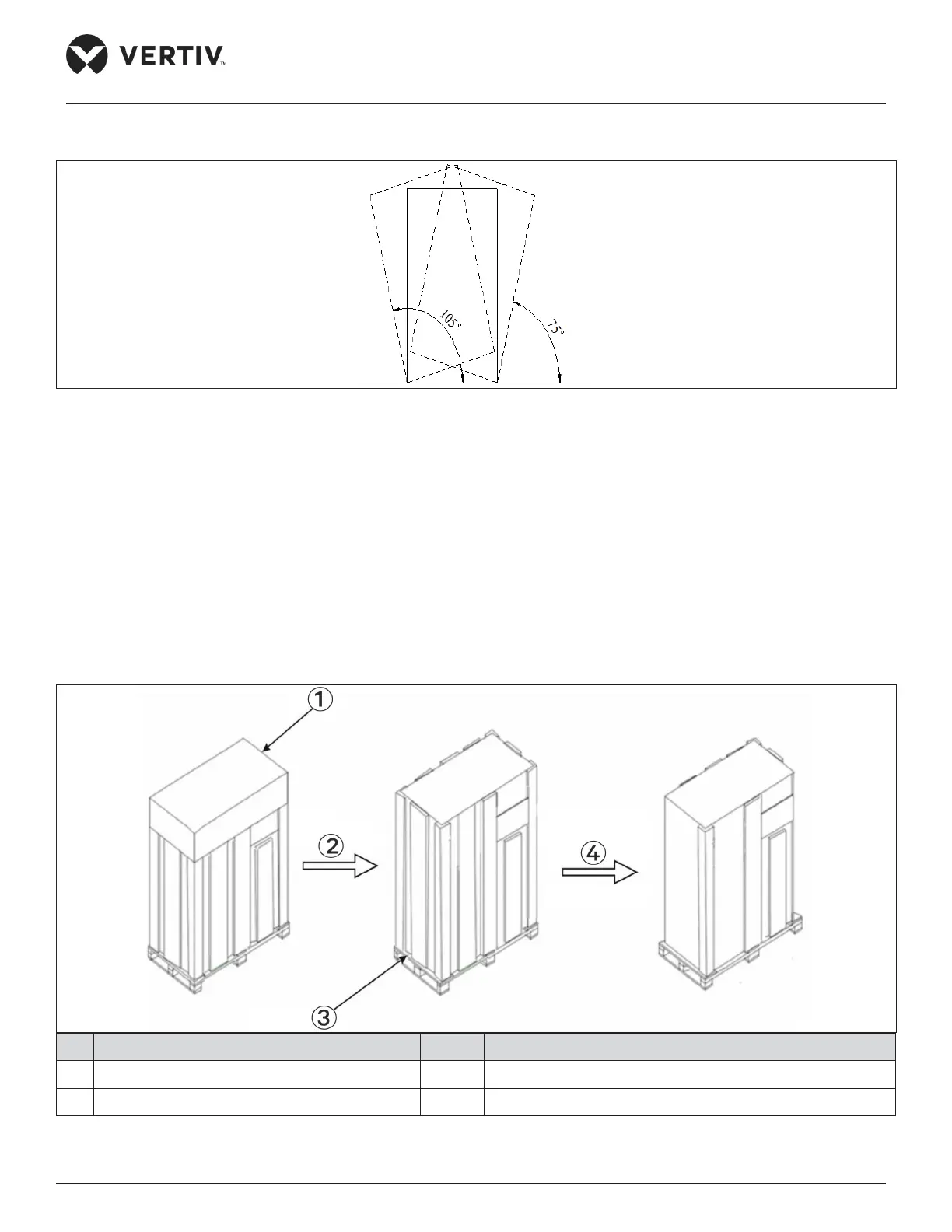

While moving the indoor unit, keep the obliquity within the range of 75° to 105°, as shown in Figure 2-2.
Figure 2-2 Obliquity of the System
2.1.2. Unpacking
Move the equipment to the location near the nal installation site and unpack it. Follow the procedures below
for unpacking
• Removal of Paper Packaging
Remove the packaging tape and carton at rst, then remove the top cover followed by dismantling the unit on
the sealing plastic, nally, remove the Honey Comb Paper Board. For better understanding see Figure 2-3.
No. Description No. Description
1 Top Cover 3 Honey Comb Paper Board
2 Remove Top Cover 4 Remove sealing plastic lm and Honey Comb Paper Board
Figure 2-3 Removal of Honey Comb Paper Board
To Next Page
