Vertiv | Liebert PEX4 | User Manual 44
Installation
6. Remove the hook from the L shaped lifting component, turn the handle clockwise, tidy the sling and remove
the xing bolts (refer Figure 2-27: Position of Fixing Bolt, totally 2 PCS) of the winch bracket, and removed
the winch and the bracket assembly.
7. Remove the xing bolts of the L shaped lifting component and removed the L-shaped lifting component. At
this point, the operation of lowering the fan of the 1-bay unit is completed. For the unit with two fans, lower
the other fan too, using the fan elevator assembly. The requirements are as follows;
8. Repeat steps 1-7 of the 1-bay unit to lower the other fan.
9. After lowering all fans, arranged the fan cables in right order and x them using a cable tie.
10. Conrm whether the EC fan has been lowered and installed and ensure that the blade does not touch the
fan housing when the fan rotates.
2.7.1. Removing Transportation Fixing Plate of Compressor
Damping cushions are added to the base of compressor to reduce the vibration and noise during operation.
However, such method cannot best resist the vibration while transporting the unit and may result in loosening
connections and wearing of certain parts. Hence to ensure the rigidity of the compressor during transportation,
three L-shaped xing plates are added to the compressor bases.
• Remove the three L-shaped xing plates after installation, and then restore the bolts and washers in re-
verse sequence of the disassembly process.
• The fastening torque of the bolts is (12±1) Nm.

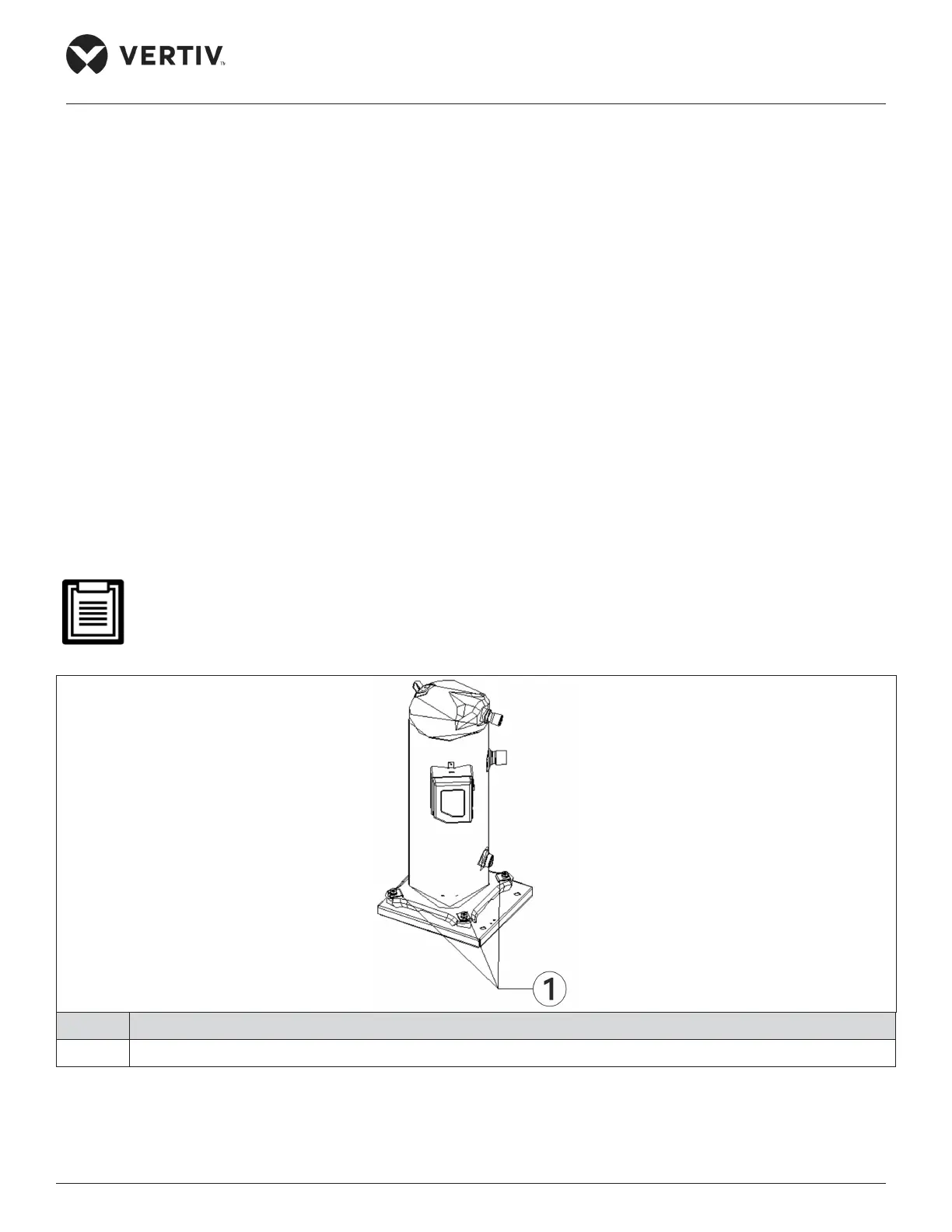

No. Description
1 L-shaped xed sheet metal (total 3 PCS)
Figure 2-28 Position of “L” Shape Fixing Plate
To Next Page
