Installation
2.3.5. Indoor Installation
• Floor Stand
The oor stand has to be prepared by the installation team according to the dimensions, weight, and height of
the unit. To ensure the rigidness of the structure, size the oor stand according to Figure 2-17 & Figure 2-18.
No. Description No. Description
1 400 mm< According to the site installer height
≤550 mm
6 Bottom plate
2 Expansion bolt mounting hole on-site
customization
7 Fixed steel plate
3 Expansion bolt mounting hole on-site
customization
8 Upper rubber damping pad
4 Expansion bolt mounting hole
(on-site self-determined) height
9 Incline tie joint
5 Bottom plate cushion

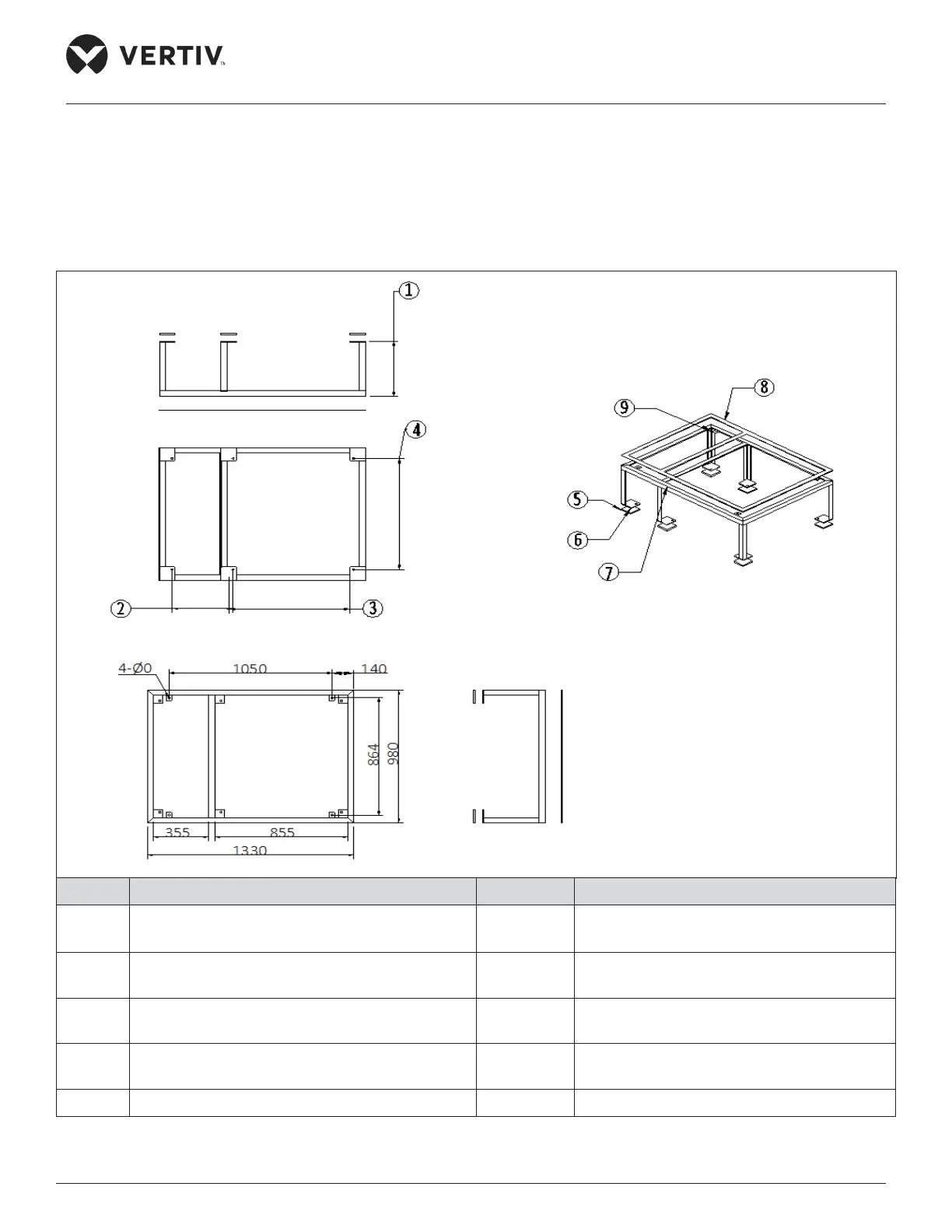

Figure 2-17 Floor Stand of the Single Unit
