Installation
Ensure that the tools used in the installation, operation, and maintenance processes are well insulated.
2.2.5. System Arrangement during Installation
The refrigerant piping is required to connect the indoor and outdoor units of the air-cooled system. The system
arrangement diagram of the refrigeration system is shown in Figure 2-8

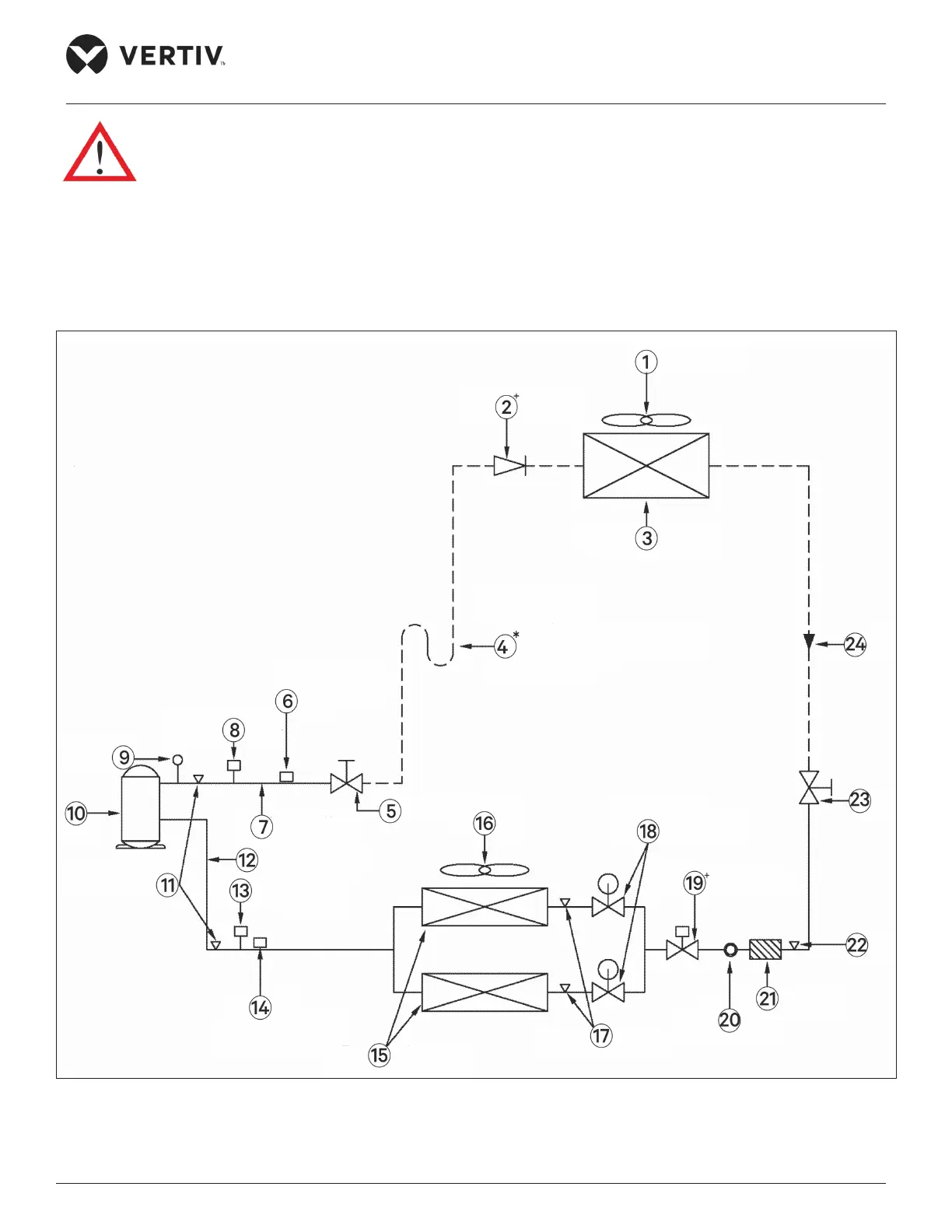

Figure 2-8 System Arrangement
