Vertiv | Liebert PEX4 | User Manual 26
Installation
2.3.3. Base Plate Cut-out Position and Dimension
• Base plate cut-out location dimensions: The cut-out position and dimensions are shown in Figure 2-13,
Figure 2-14 and Figure 2-15.
No. Description No. Description
1
Discharge pipe ø22
4 Condensate drain outlet
2
Liquid pipe inlet ø16
5 Humidication pipe inlet
3 Cable entry 65x25

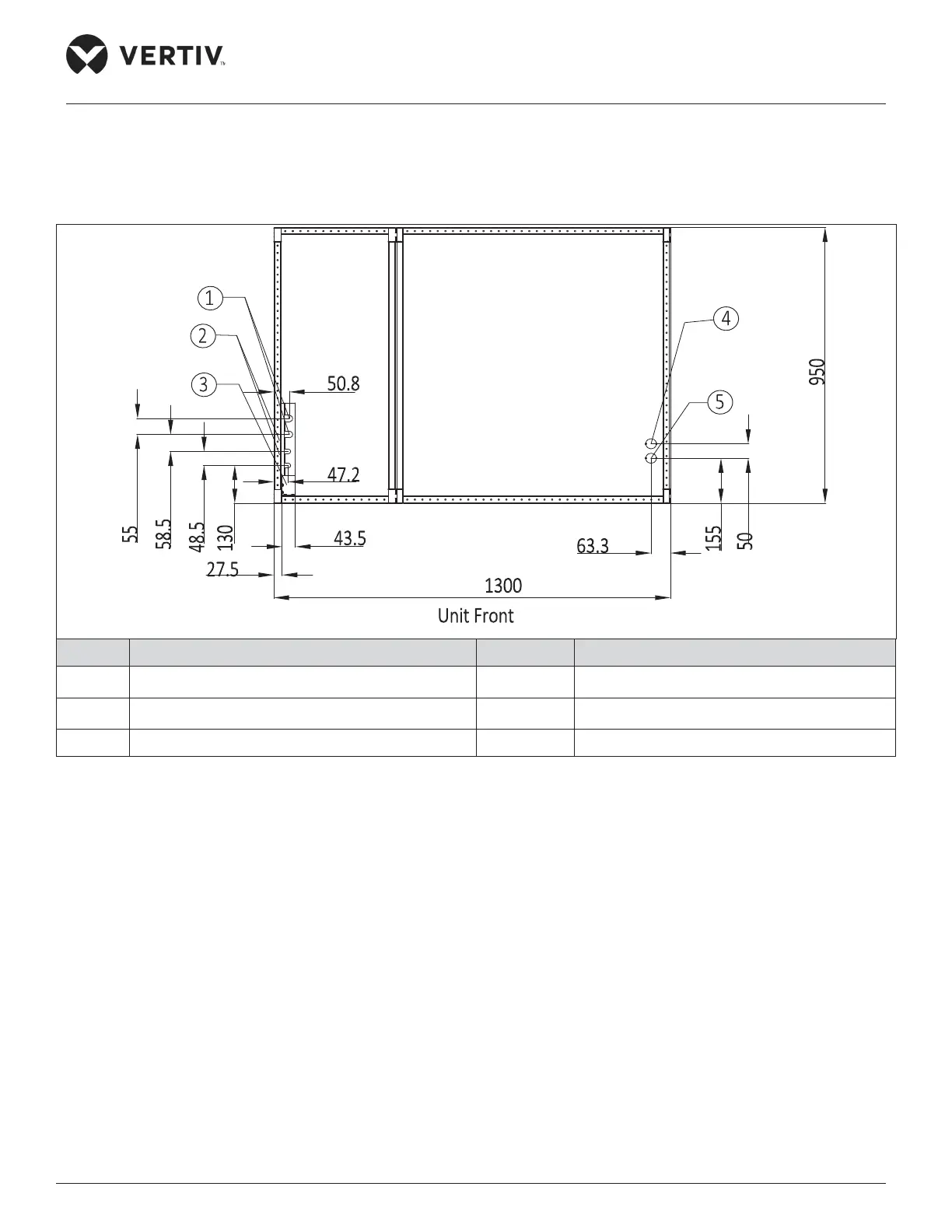

Figure 2-13 The Position of Pipe Bottom Outlet of Single Cabinet Unit (unit: mm)
