Installation
No. Description No. Description
1
Discharge pipe ø22
4 Condensate drain outlet
2
Liquid pipe inlet ø16
5 Humidication pipe inlet
3 Cable entry 65x25

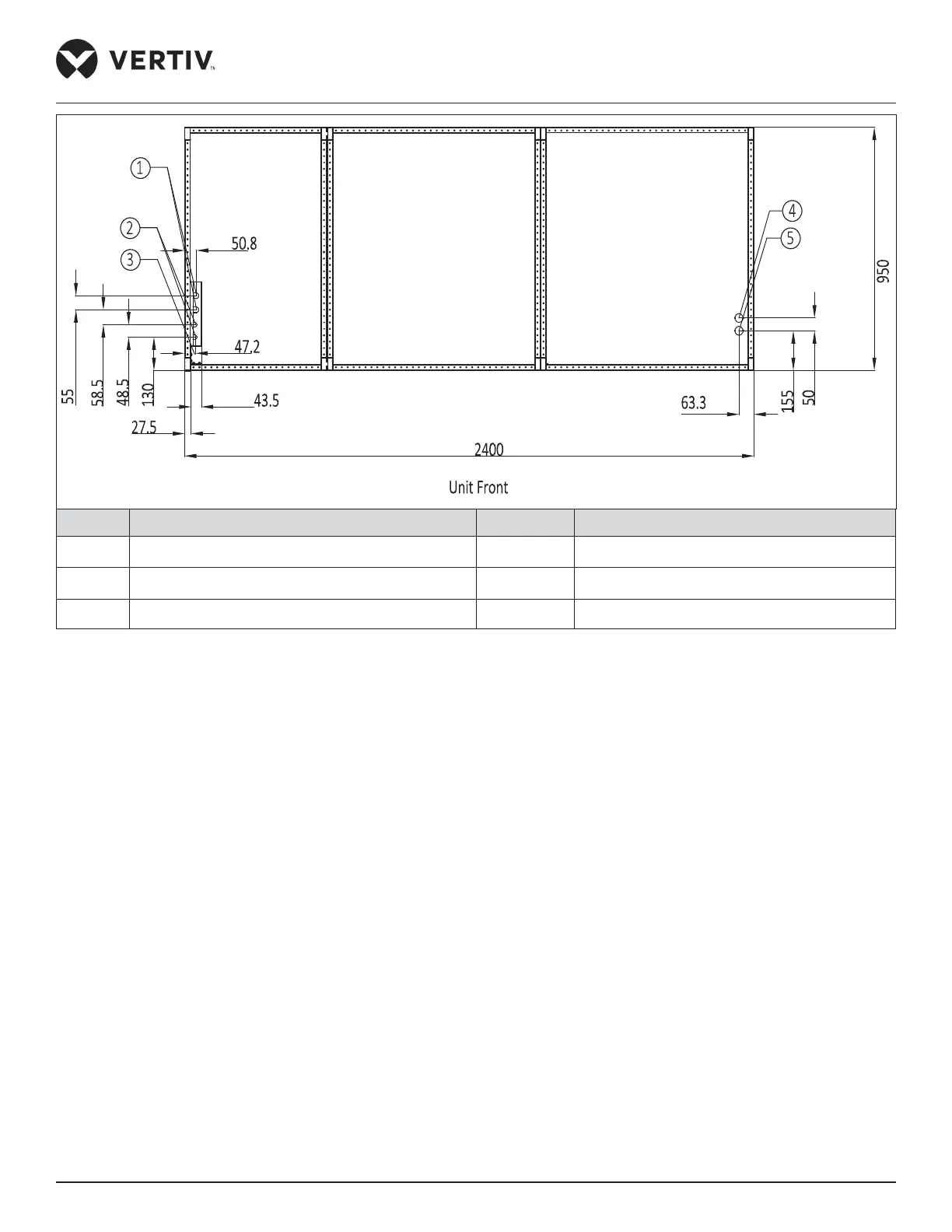

Figure 2-14 The Position of Pipe Bottom Outlet of Dual Cabinet Unit (unit: mm)
