Installation
2.3. Mechanical Installation
2.3.1. Indoor Unit Size and Weight (Product Dimension)

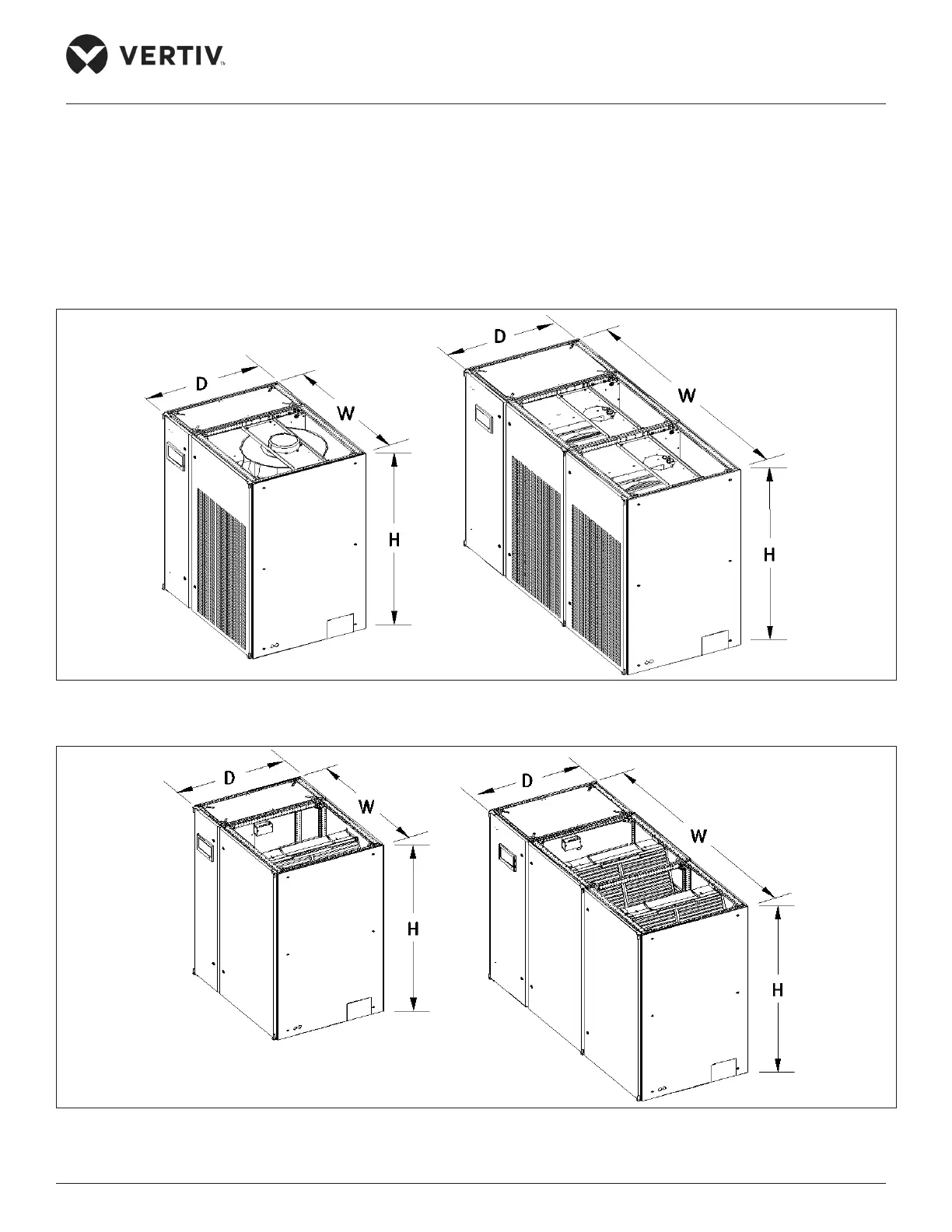

The dimensions and operational weight of the indoor units are depicted in Figure 2-11 & Figure 2-12 and
Table 2-3 respectively. In PEX4 series unit installation, while lowering the fan, the oor height should not be less
than 450 mm.
Figure 2-11 Upflow Indoor Unit
Figure 2-12 Downflow Indoor Unit
