2.3.4. Position and Dimension of Air Outlet on Top Cover
The position and dimensions of air outlet on the top cover of upow unit are shown in Figure 2-16 and in
Table 2-4 respectively.

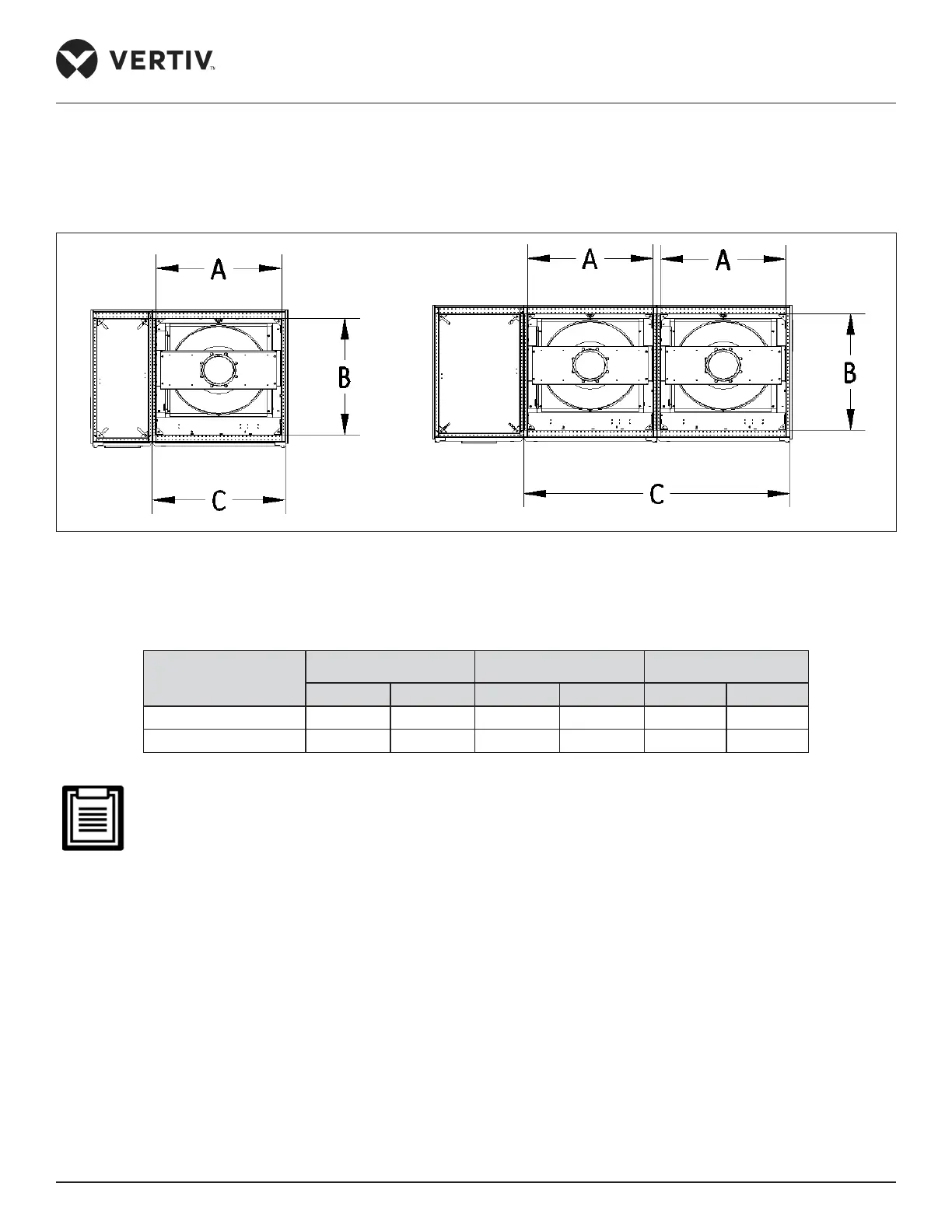

Figure 2-16 The Position of Air Outlet on Top Cover Upflow Unit
Table 2-4 Dimensions of Air Outlet on Top Cover of Upflow Unit
Type
A B C
mm inch mm inch mm inch
Module series1 850 33.5” 900 35.4” 900 35.4”
Module series2 850 33.5” 900 35.4” 1800 70.9”
• Module series 1 contains P1035, P1045, P1050, P1060 series units.
• Module series 2 contains P2070, P2080, P2090, P2100, P2110, P2120 series unit.
