4.2 Friction adjustment
4.2.1 Command station EC3

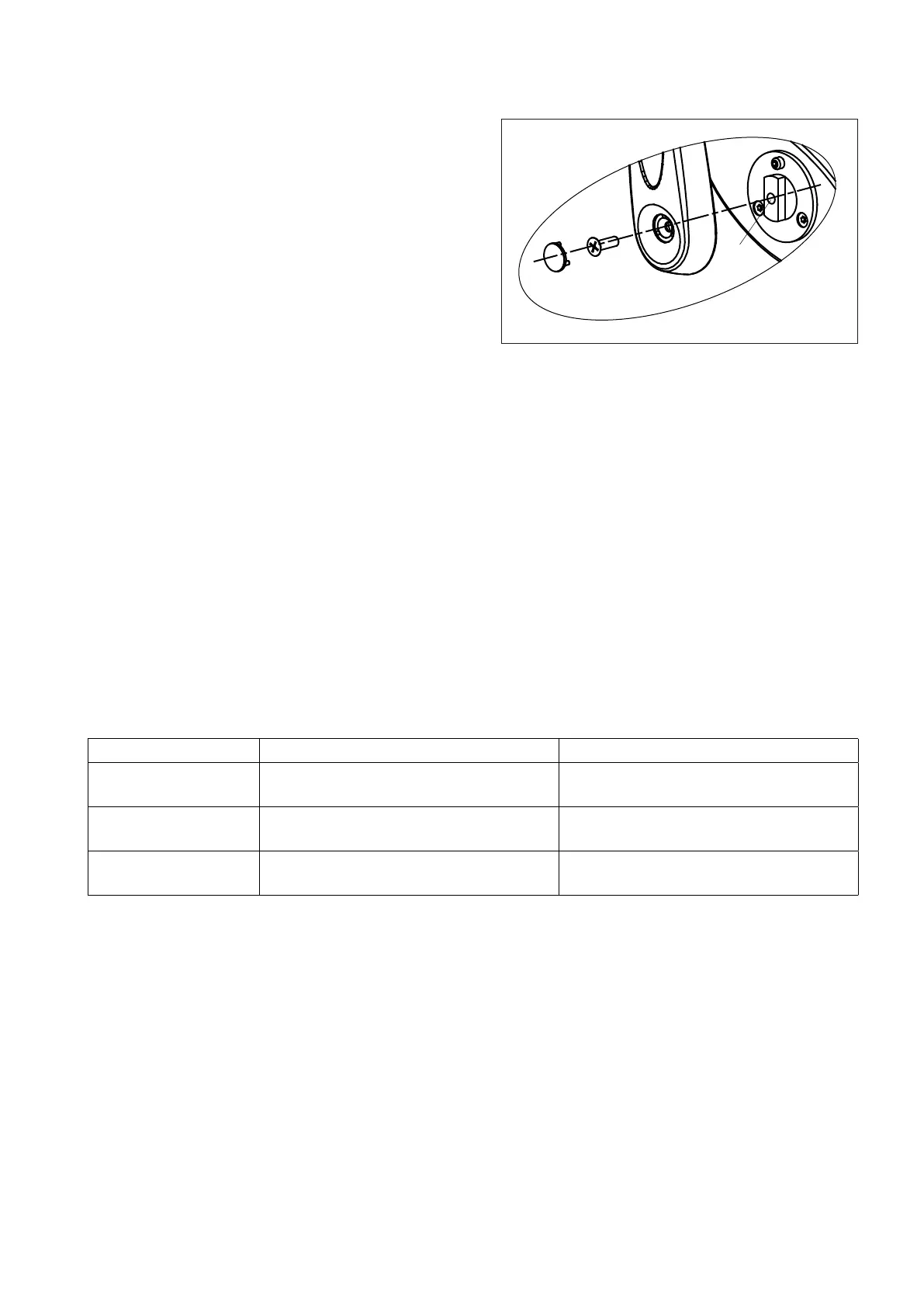

To adjust the inner friction of the command lever, remove
the PVC cap (A) and unscrew the fixing screw (B). It is possi-
ble to adjust the friction screwing and unscrewing the inner
screw placed into the hole. When the regulation will be done,
mount the screw and the plastic cap.
4.3 Programming of the command station
4.3.1 For command stations before serial number 18500
At power up, the command station makes a sequence of two flashes. The first flash identifies the number of engines and
the second identifies the number of actuators present in the system. According to the length of each flash, the command
station is differently configured.
You need to configure the command station in relation to the type of installation. It is also possible to modify the con-
figuration of the command station by keeping pressed before powering up and continuing to keep them pressed for 6
seconds after power up, the following push buttons:
• Warm/Sync + Command, in this case you want to change the number of actuators
• Engine left + Engine right, in this case you change the number of engines on the boat
Possible configurations are according to the following table:
1° flash (identifies the number of motors) 2° flash (identifies the number of actuators)
Installation with 1
engine and 1 actuator
Long (3 seconds) Long (3 seconds)
Installation with 2
engines and 1 actuator
Short (less than 1 second) Long (3 seconds)
Installation with 2
engines and 2 actuators
Short (less than 1 second) Short (less than 1 second)
Important: from the factory, the command station is configured with the first flash short and the second flash long.
1. To configure the command lever for an installation with 2 actuator boxes, press the push buttons Warm/Sync and
Command before powering up the command station and continue to keep them pressed for 6 seconds. The lever is
now configured for installations with two engines and two actuators. At the next normal power up, the command
lever will make a sequence of 2 short flashes.
2. In case you need to configure again the command lever for installation with 2 engines and 1 actuator, repeat the
procedure of point 1.
