vetus® Electronic engine remote control
11 Programming of the strokes on actuator with mechanical inter-
face to engine and gearbox
System’s components involved: push-pull cables, actuator
In this chapter it will be presented how to program the actuator, in order to obtain the correct strokes for engine and

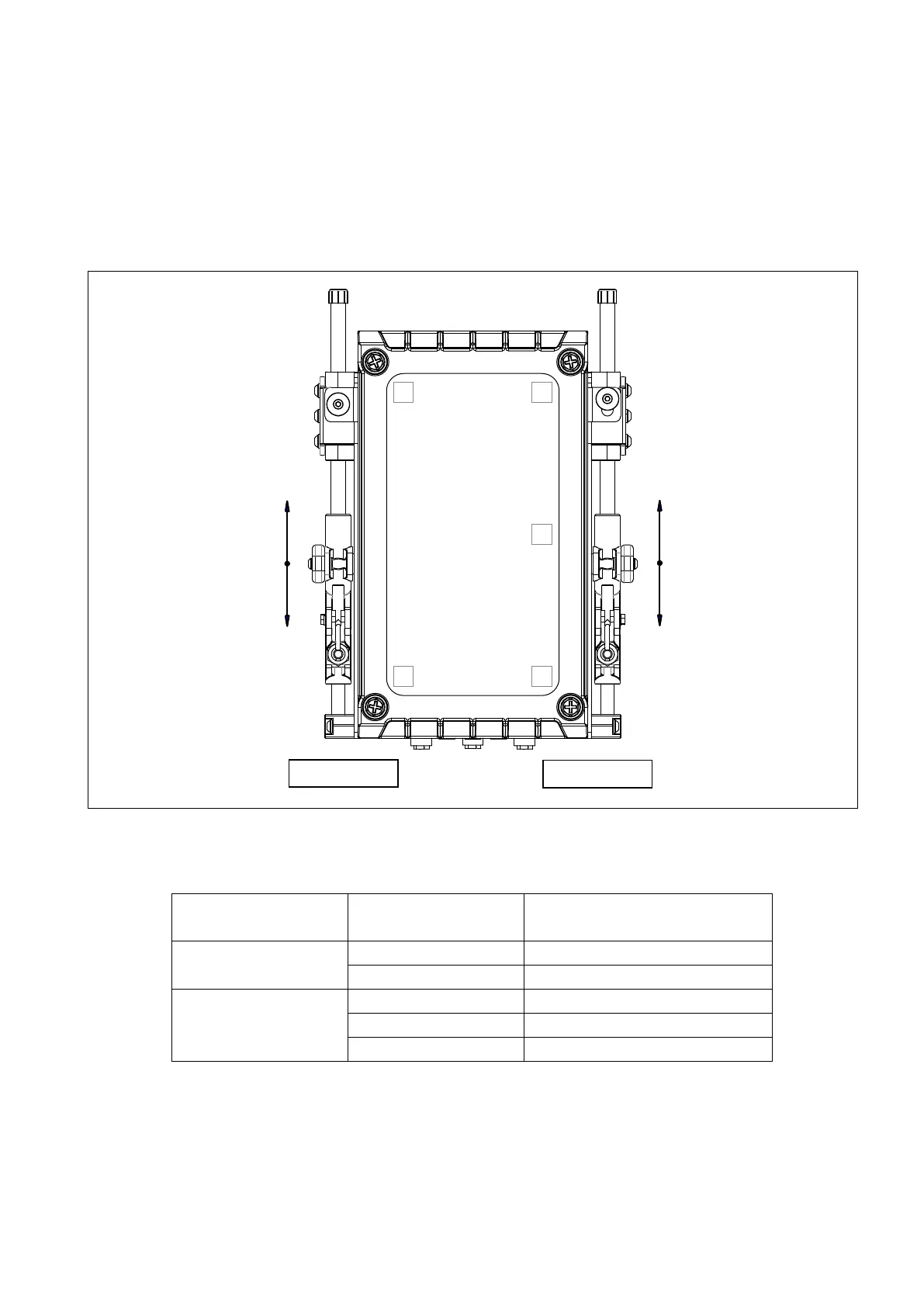

gearbox. The actuator looks according to the picture here below.
You must program 5 positions and therefore 5 parameters: 2 for the throttle and 3 for the gearbox. Gearbox and throttle
positions have to be set according to the parameters of the here below table.
Parameters
to set
Value on
display
Function
Throttle
UL Minimum speed position
UH Maximum speed position
Gearbox
0L Gearbox Reverse
0F Gearbox Neutral
0H Gearbox Forward
Actuators are delivered from factory with:
• No throttle stroke,
• Forward, Reverse and Neutral positions coincident with the Neutral position
In order to start-up correctly the system you must do the correct setting the cable strokes.
UL 0L
0F
0HUH
Gearbox
Throttle
Push Pull
Push Pull
