22 030624.13
vetus® Electronic engine remote control

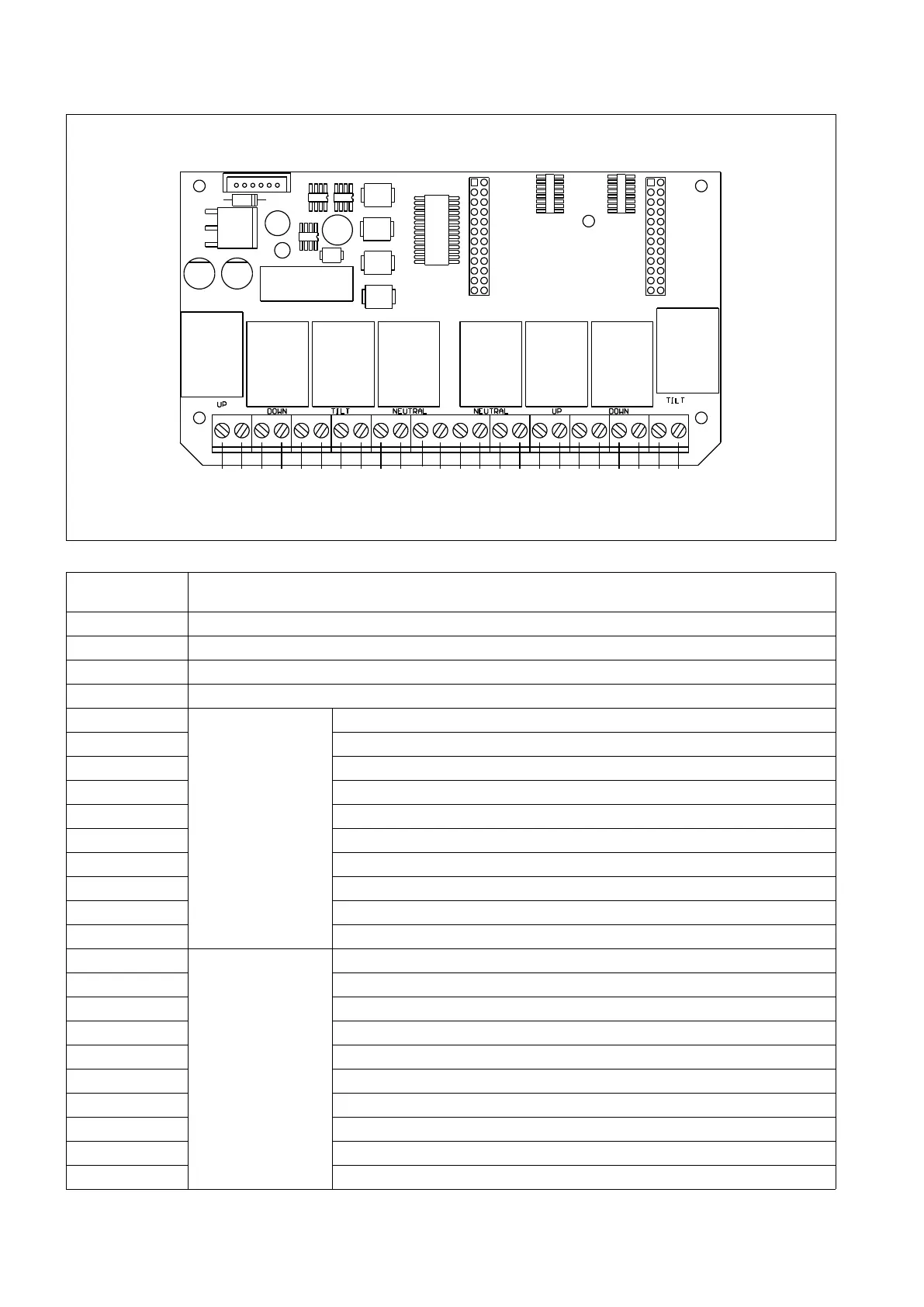

5.4.3 Relays PCB version 2.0 for electronic gearboxes
1 2
3
4
5
6
7
8 9 10
11 12 24
23
2221
201918
17
1615
14
13
Fuse
Pin Description
1 Vdc
2 GND
3 Vdc
4 GND
5
Left engine
Trim common contact
6 Trim +
7 Trim -
8 Trailer
9 Common neutral relays contact
10 NC contact neutral relay
11 Forward gear
12 GND
13 Reverse gear
14 GND
15
Right engine
Forward gear
16 GND
17 Reverse
18 GND
19 Common neutral relay contact
20 NC contact neutral relay
21 Common trim contact
22 Trim +
23 Trim -
24 Trailer
