Vetus EC4 - Electronic Actuator Boards; Actuator Board Ver. 3.1

20 030624.13
vetus® Electronic engine remote control

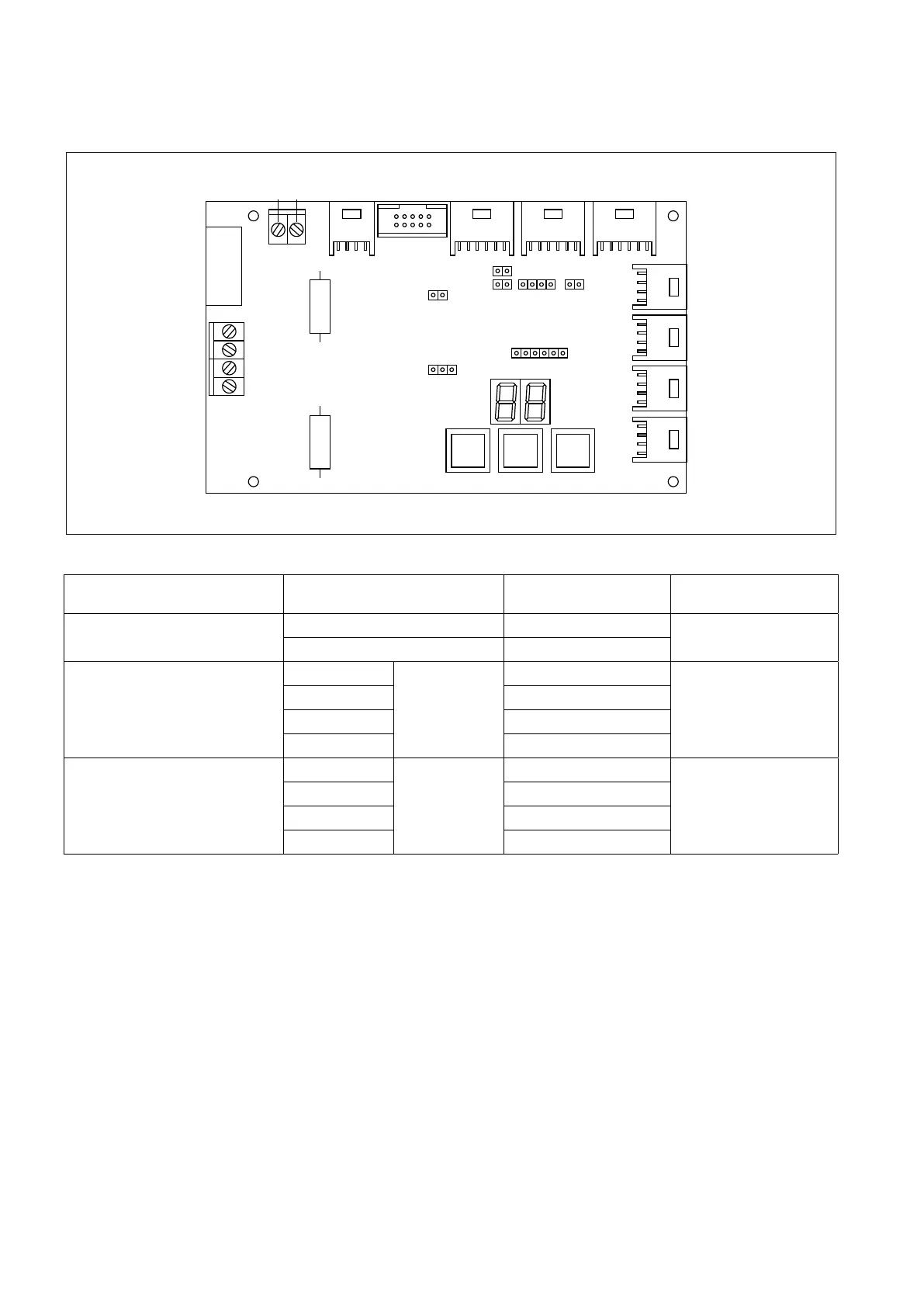

5.4 Electronic Actuator Boards
5.4.1 Actuator board ver. 3.1
Position on board Pin Description Output cable
JP8 Supply
1 Vdc
Wall connector
2 GND
JP9 Engine right
2
MOD2 (Rev.3)
V_out CH1
4 poles
3 V_out CH2
1 GND CH2
4 GND CH1
JP10 Engine left
2
MOD2 (Rev.3)
V_out CH3
4 poles
3 V_out CH4
1 GND CH4
4 GND CH3
Connectors JP9 and JP10 are dedicated to the electronic control engine device (ECU).
JP12
UP
DOWN
ENTER
JP1
JP2
JP7
JP13
JP11
JP14
JP15
JP19
21
JP8 JP3 JP18 JP17 JP16
JP10 JP9 JP6
JP5
Fuse
