vetus® Electronic engine remote control
12.2 Sea trials
Now your programming is finished!
In order to verify the settings you need to activate your electronic control system.
Switch-of the power supply and then switch on again.

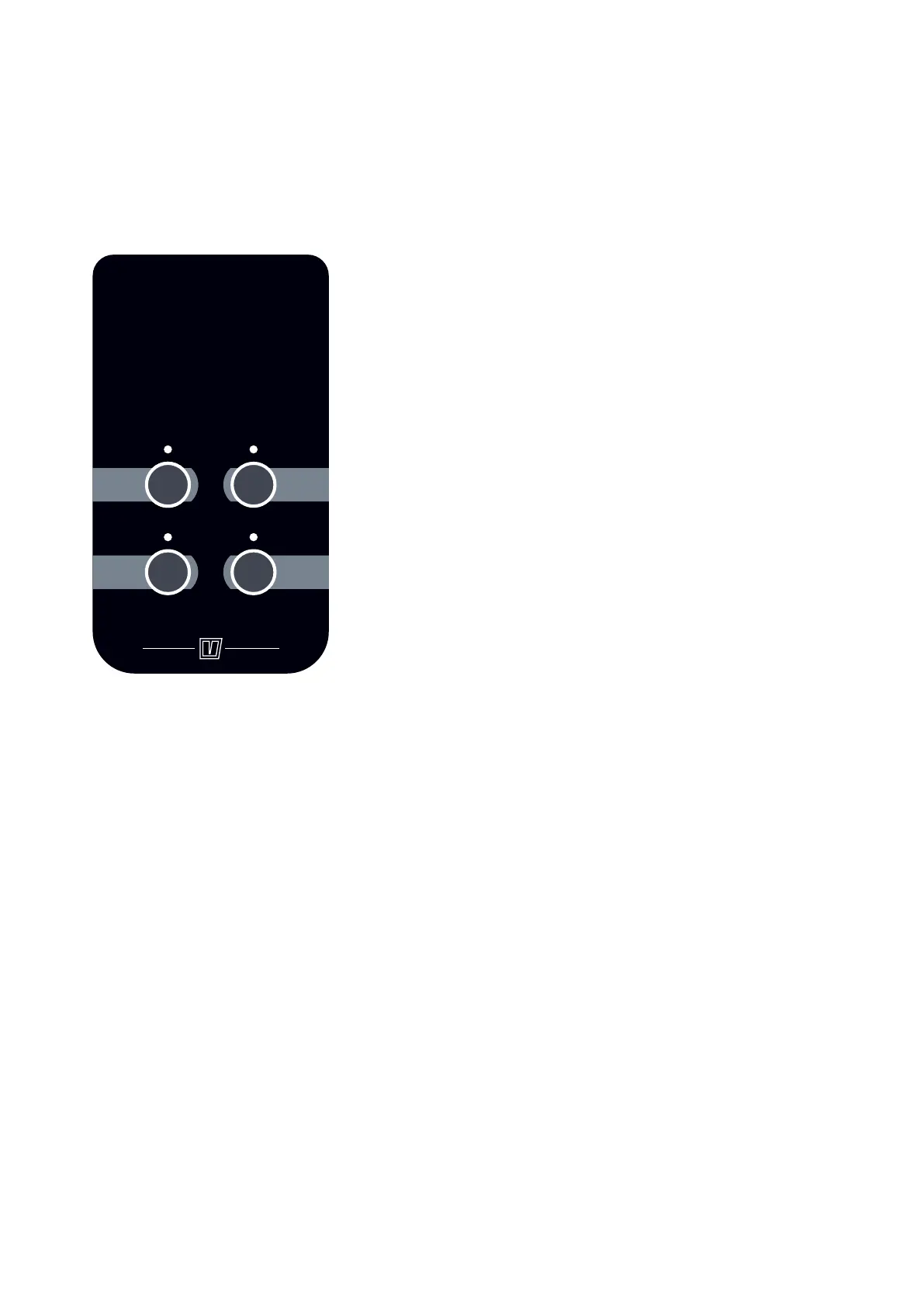

If all the settings have been done correctly, the command station will look as follow:
To learn about how to command the boat go to chapter 3 (Pilot Instructions).
You must test now the correct functioning of the gearbox in relation to the command lever. After having set the stroke
positions, it might happen that there is not the right correspondence between the direction of the lever and the move-
ment executed by the actuator (e.g.: you move the lever forward and the gearbox cable is pushing instead of pulling).
Changing the value of parameter A0 you can modify the correlation between the direction on the lever and the direction
on the actuator. The table here below defines the directions of throttle and gearbox in relation to the 4 possible values
of parameter A0, with the assumption to move the command station lever in forward direction (gearbox forward and
engine accelerated). With the assumption that you have done all the stroke setting with A0 = 4 (factory setting), modify
the correlation between lever and actuator as described in the schemes of the next page.
Command station series 4500
Engine
Command
Warm/Sync
Engine
To Next Page
