vetus® Electronic engine remote control

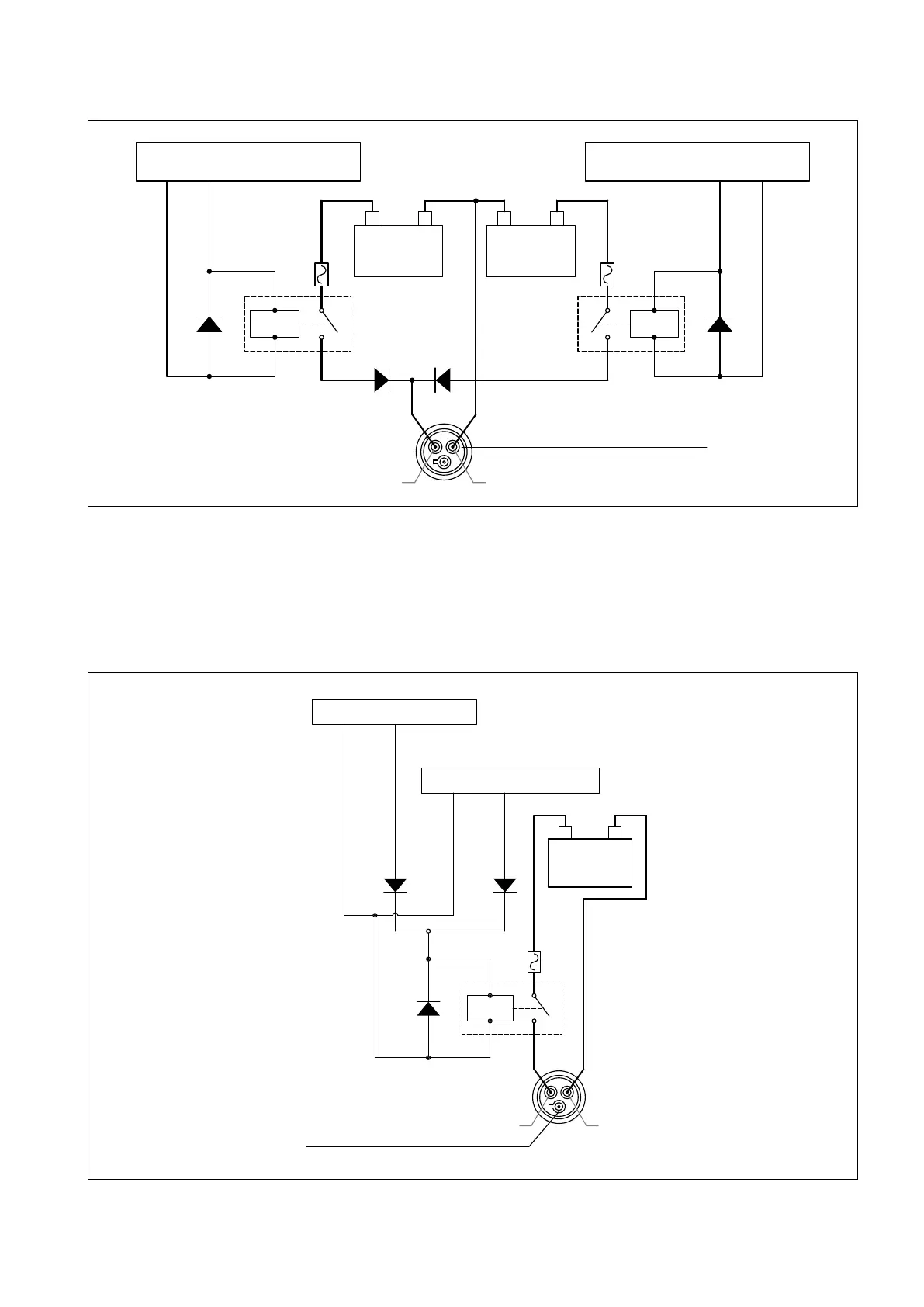

8.1.4 Electrical installation of systems with 2 engines, 1 actuator and 2 ignition keys
For the detailed list of components, please refer to the table at section 8.1.3.
8.1.5 Electrical installation systems with 1 engine, 1 actuator and 2 ignition keys
For the detailed list of components, please refer to the table at section 8.1.3
R
+
-
F
A1
A2
Com
NO
D
+
-
D
R
A1
A2
F
Com
NO
D D
L
N
Battery
Ignition key - Left engine
- Battery Signal 15
Battery
Signal 15 - Battery
Ignition key - Right engine
Actuator power supply connector
A1
R
+
-
F
A2
Com
NO
D D
D
L
N
Battery
Ignition key - Deck
- Battery
Signal 15
Ignition key - Fly Bridge
- Battery
Signal 15
Actuator power supply connector
