Vetus EC4 - Installation with 2 Mechanical Actuators - Solution B

030624.13 31
vetus® Electronic engine remote control
JP19: OFF (end-line)
JP14: OFF (address)
JP19: OFF (end-line)
JP14: ON (address)
Code: DTCANxx
Actuator for
left engine
Actuator for
right engine
Data transmission cable
Command station 2Command station 3Command station 1

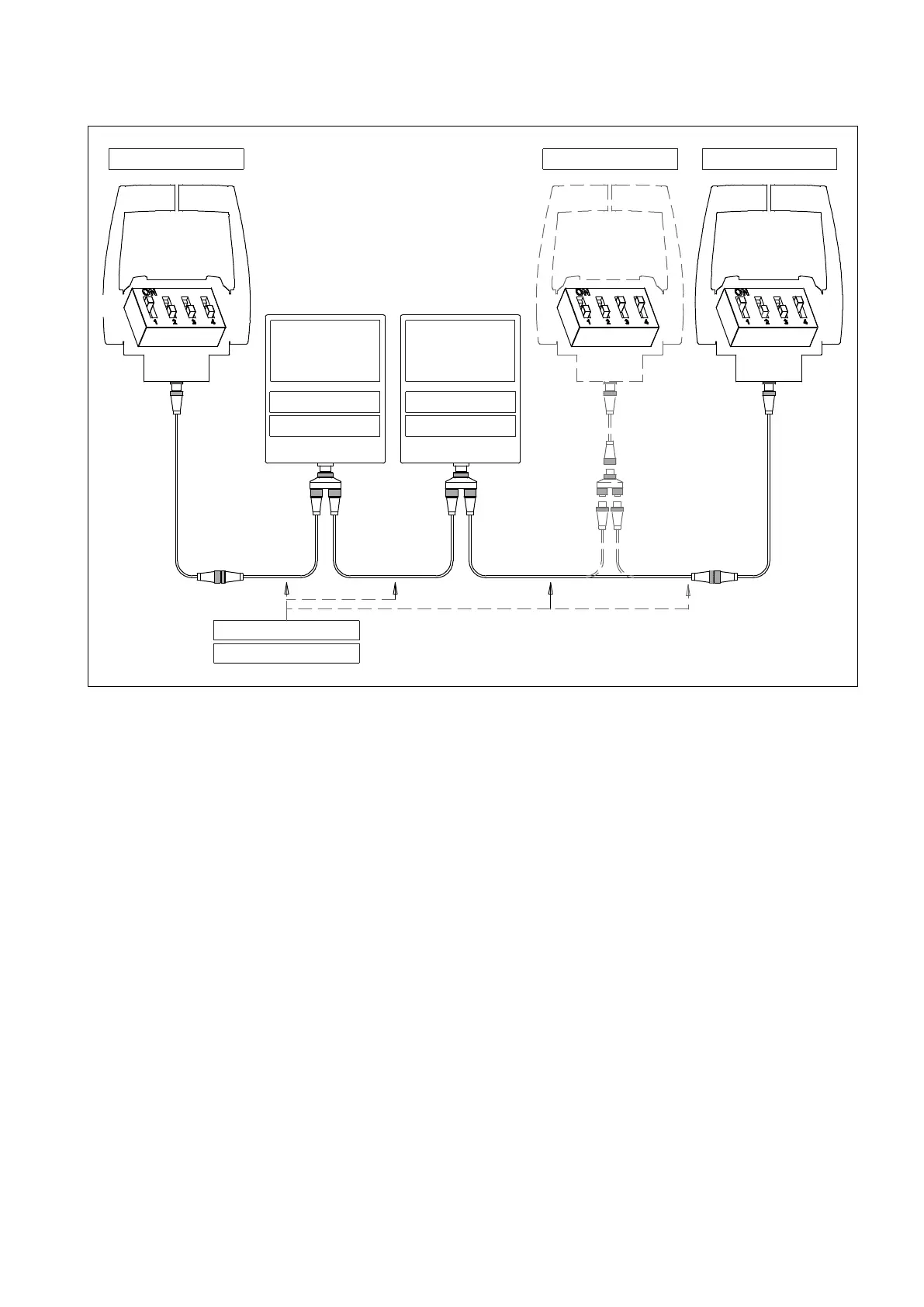

7.2 Installation with 2 mechanical actuators – solution B
This installation scheme is valid for systems with:
• Up to 3 command stations and 2 engines with mechanical throttle, mechanical gearbox, with/without trim;
