vetus® Electronic engine remote control

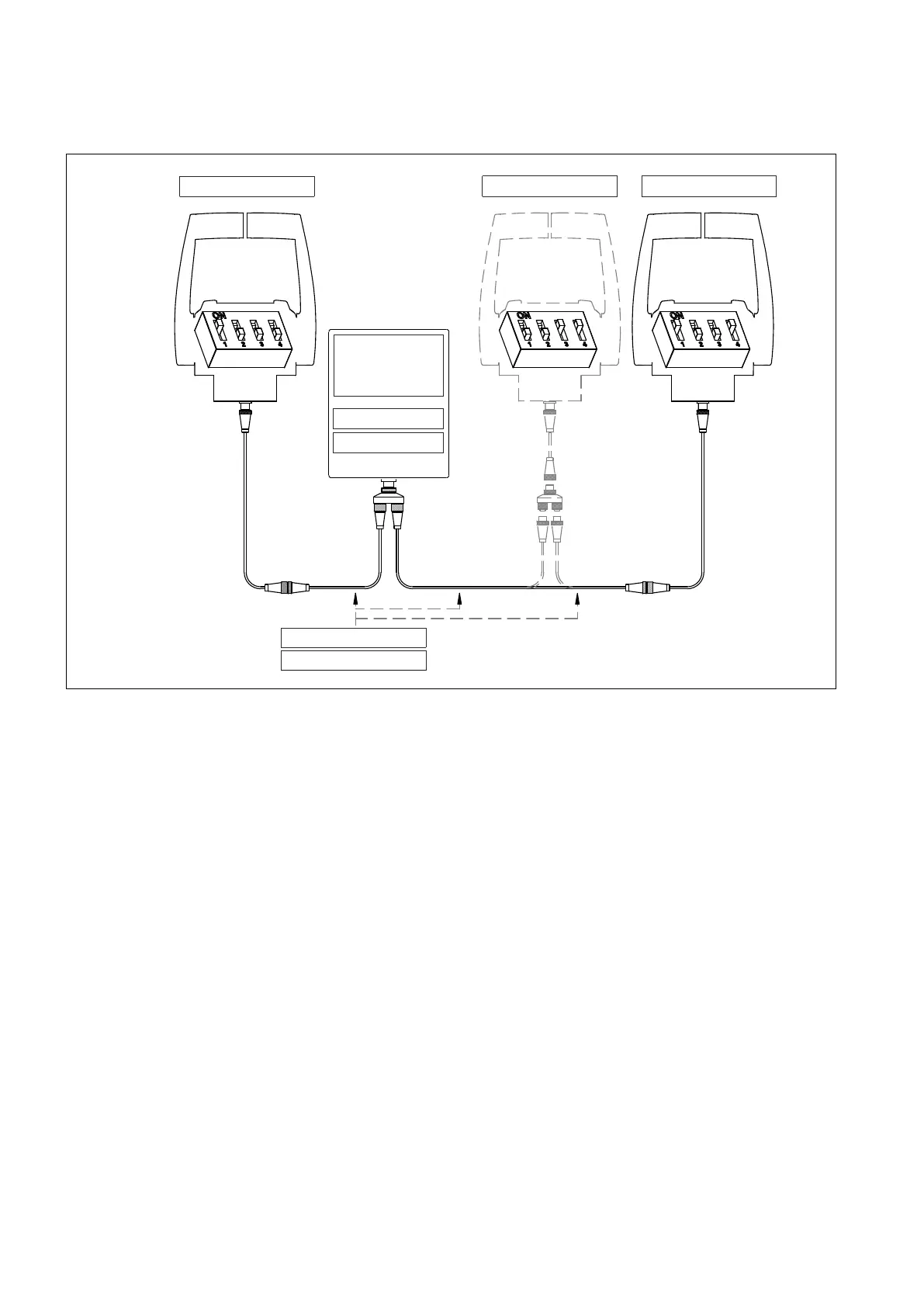

7.5 Installation with 1 actuator – solution E
The actuator is placed in the middle of the CANBus line.
This installation scheme is valid for systems with:
• up to 3 command stations and 1 engine with mechanical throttle, mechanical gearbox, with/without trim (or flap);
• up to 3 command stations and 1or 2 engines with electronic throttle (voltage or CANBus), mechanical gearbox, with/
without trim (or flap);
• up to 3 command stations and 1 or 2 engines with electronic throttle (voltage or CANBus), solenoid driven gearbox,
with/without trim (or flap);
JP19: OFF (end-line)
JP14: OFF (address)
Code: DTCANxx
Actuator
Data transmission cable
Command station 2Command station 3
Command station 1
