vetus® Electronic engine remote control

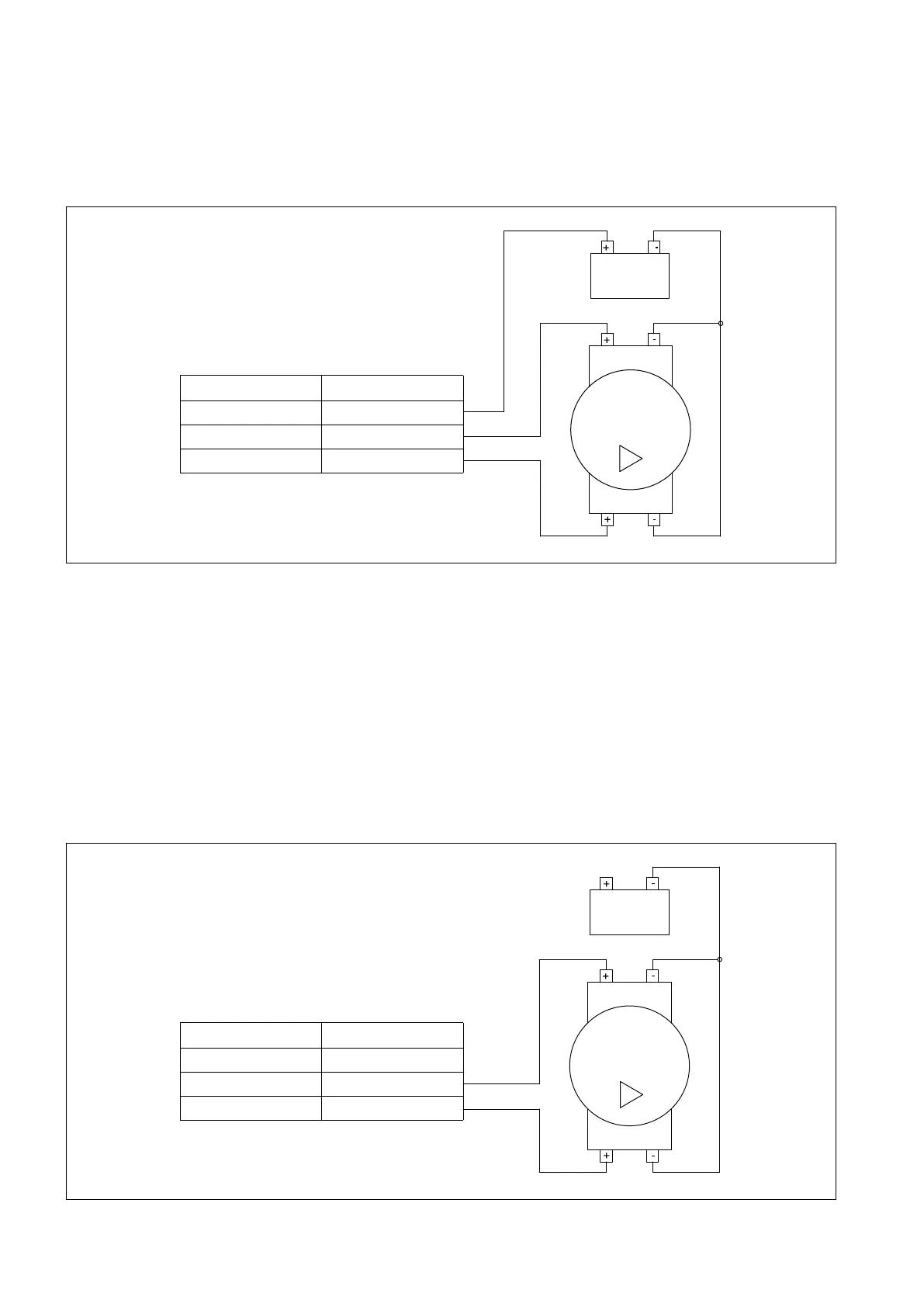

8.2.7 Wiring scheme from actuator to trim/flap with external supply
This wiring scheme refers to:
• Any actuator with serial number before 16500
• Trim/Flap cable code EC3T3M (see section 6.4)
Important: this scheme shows how to connect the electrical cables; battery switch and protection devices (e.g. fuses)
must be implemented according to local regulations.
8.2.8 Wiring scheme from actuator to trim/flap with internal supply
This wiring scheme refers to:
• Any actuator with serial number equal or after 16500
• Trim/Flap cable code EC3T3M (see section 6.4)
Output signals are internally protected with 5A fuse.
Battery
Trim/Flap pump
Solenoid DOWN
Solenoid UP
Function Wire colour
+ Battery Yellow-green
Trim - Flap - Black 1
Trim + Flap + Black 2
Battery
Trim/Flap pump
Solenoid DOWN
Solenoid UP
Function Wire colour
+ Battery -
Trim - Flap - Black 1
Trim + Flap + Black 2
