58 030624.13
vetus® Electronic engine remote control

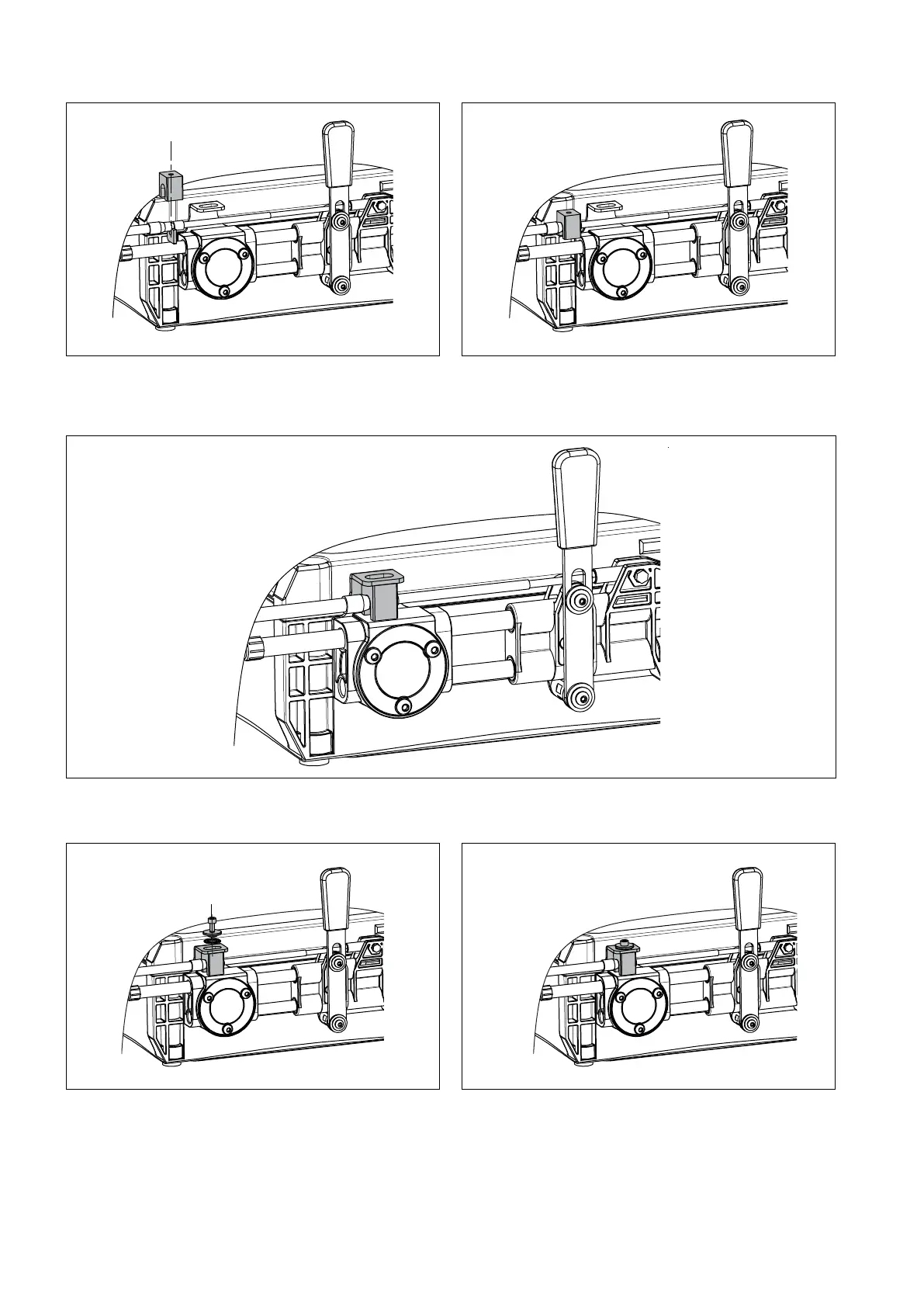

4. Connect the blade (g) and the black aluminium cube (e) onto the push-pull cable’s hub.
4A
6A
5A
4B
6B
5. Then insert the push-pull cable into the bracket slot (d), picture 5. Verify that the fixing element is centred into the
bracket slot.
6. Fix the black aluminium cube (e) against the bracket (d) using the fixing screw (c).
7. If the fixing position is not correct, tune the push-pull cable in such a way that when the gearbox’s lever is in neutral,
the push-pull cable is at its half stroke and the fixing screw is aligned with the notch.
8. Verify and eventually tune again the neutral position, set reverse (0L) and forward (0H) positions. For these opera-
tions look at section 12.1
