• maximum current which can be commutated by the neutral relay is 10 A.
• in case the actuator is not supplied, you cannot start the engine unless you provide a by-pass electrical circuit for
emergency situations.
• actuator with mechanical interface is just giving the information that itself is in neutral position. The neutral position
on the gearbox is to be considered valid only if the push-pull cable is mounted correctly.
Neutral relay option cables are depicted in sections 6.3.3 and 6.3.4. Installation schemes are at sections 8.2.5 and 8.2.6.
Length Code
L=3 m EC3T2
To be noticed:

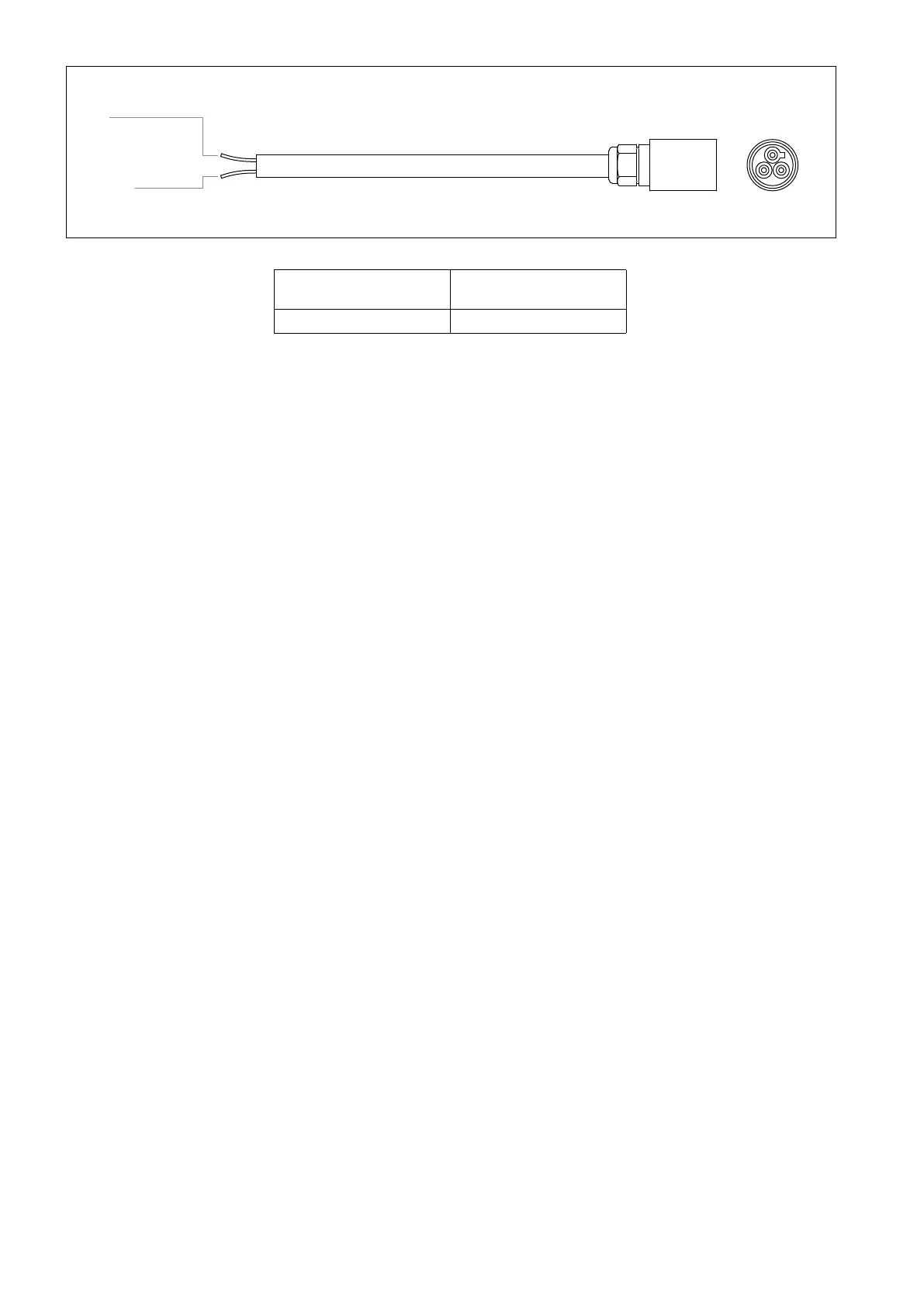

• the cable has 3 wires: black 1, black 2 and yellow/green. For this application do not use the yellow/green wire.
Black 1
Neutral relay
Black 2
Common
