The position of the eccentric for the height movement is when rotating the machine in the
13. Feed dog and fabric feeding
13.1- Feed dog position

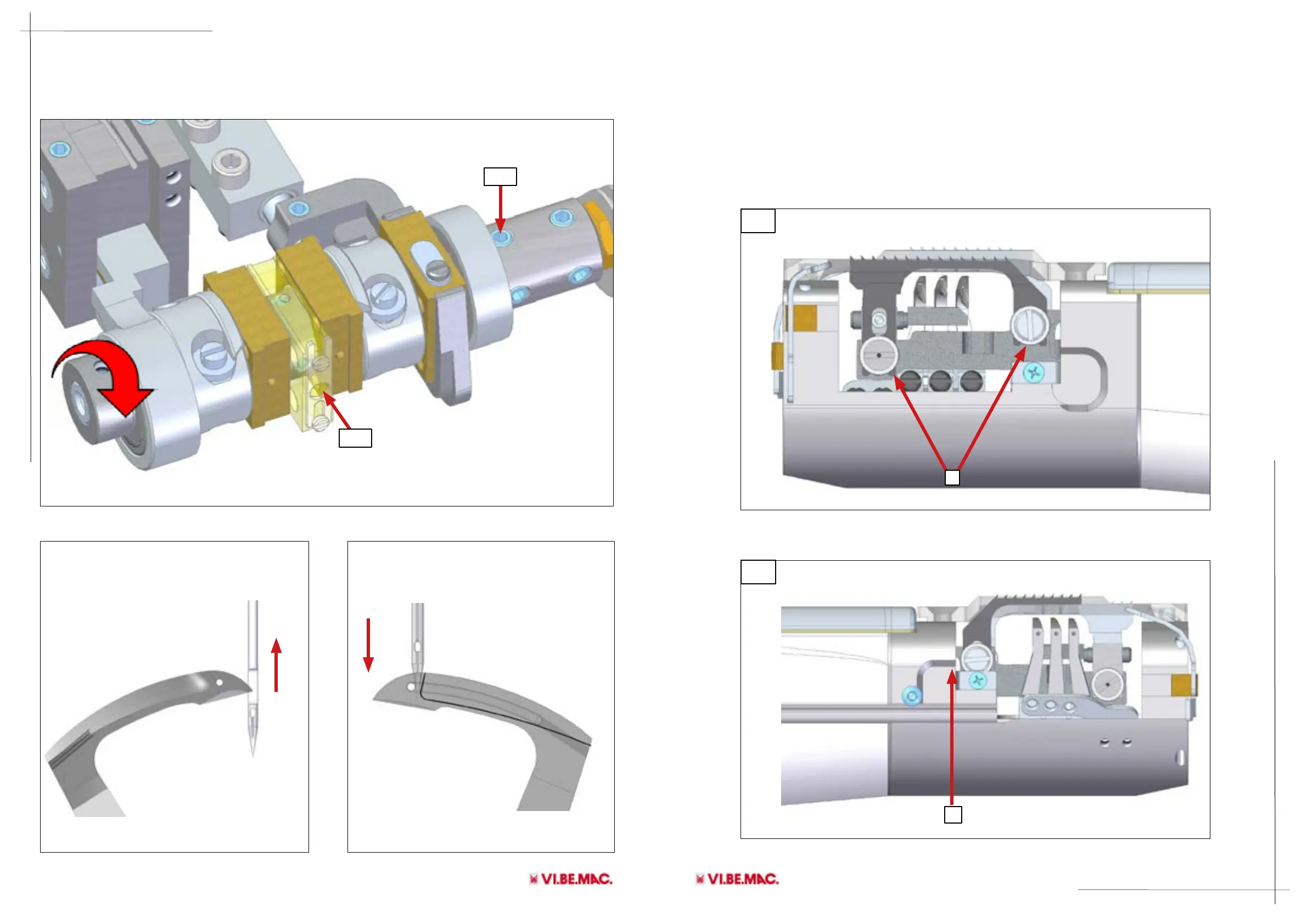

The feed dog have to be parallel with the needle plate and in his higher position only the feed
dog teeth to be higher then needle plate. The left side feed dog position can be adjusted from
the two screws market as A in the picture 27.1, the right side feed dog position can be adjusted
from the screw marked as B in the picture 27.2.
