Oil level
Oil lling point

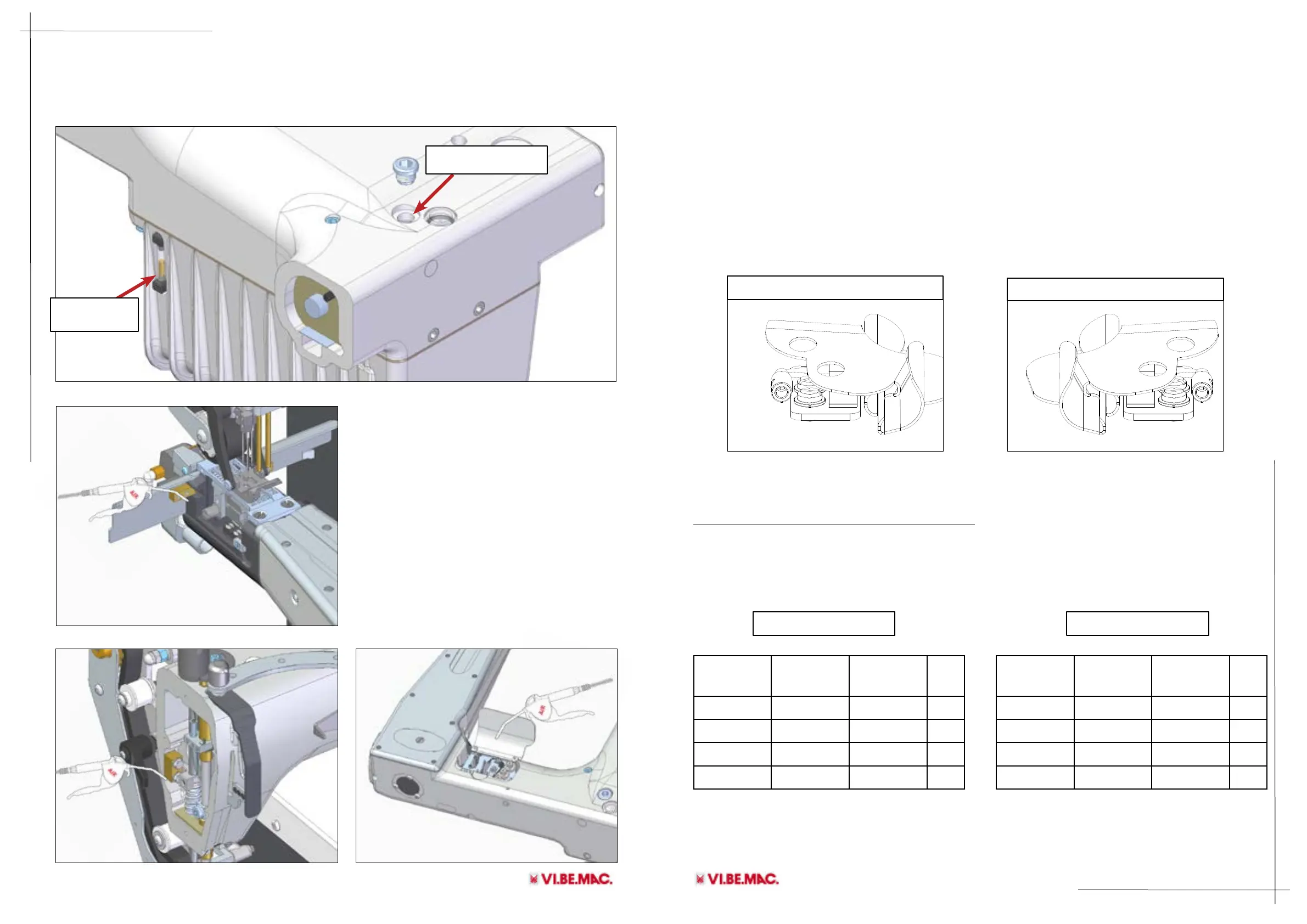

9. LUBRICATION AND MAINTENANCE
Every day before starting production need to check the oil level in the marked areas.
Clean the machine at least once a day with an air gun to remove dust from the sewing
mechanisms and the thread trimming device
NORMAL
RD 01** **K2 RR 01** **K2
10. LAP SEAM FELLER
There are two types of Feller.
The NORMAL type to perform the operations of seam and.
The REVERSE Upside-down type to perform:
1.
2. Back rise
3. Back joke
The Fellers are available in the Four versions super heavy (HS) heavy (H), medium (M) and
light (L).
The code of the fellers are formed in this way:
RD(NORMAL ) RR(REVERSE) 01(TYPE OF FABRIC HS,H,M,L,) (SIZE ¼,9/32,3/8) K
TYPE
FABRIC
TYPE
NEEDLE
GAUGE
RD 01 HS 1/4 K
H 9/32
M 3/8
L 3/16
TYPE
FABRIC
TYPE
NEEDLE
GAUGE
RR 01 HS 1/4 K
H 9/32
M 3/8
L
REVERSE
To Next Page
