28 29
REV. 2.1 22-06-2020REV. 2.1 22-06-2020
AA
B
A
B
28.1
28.2
29.1
29.3
29.2
29.4

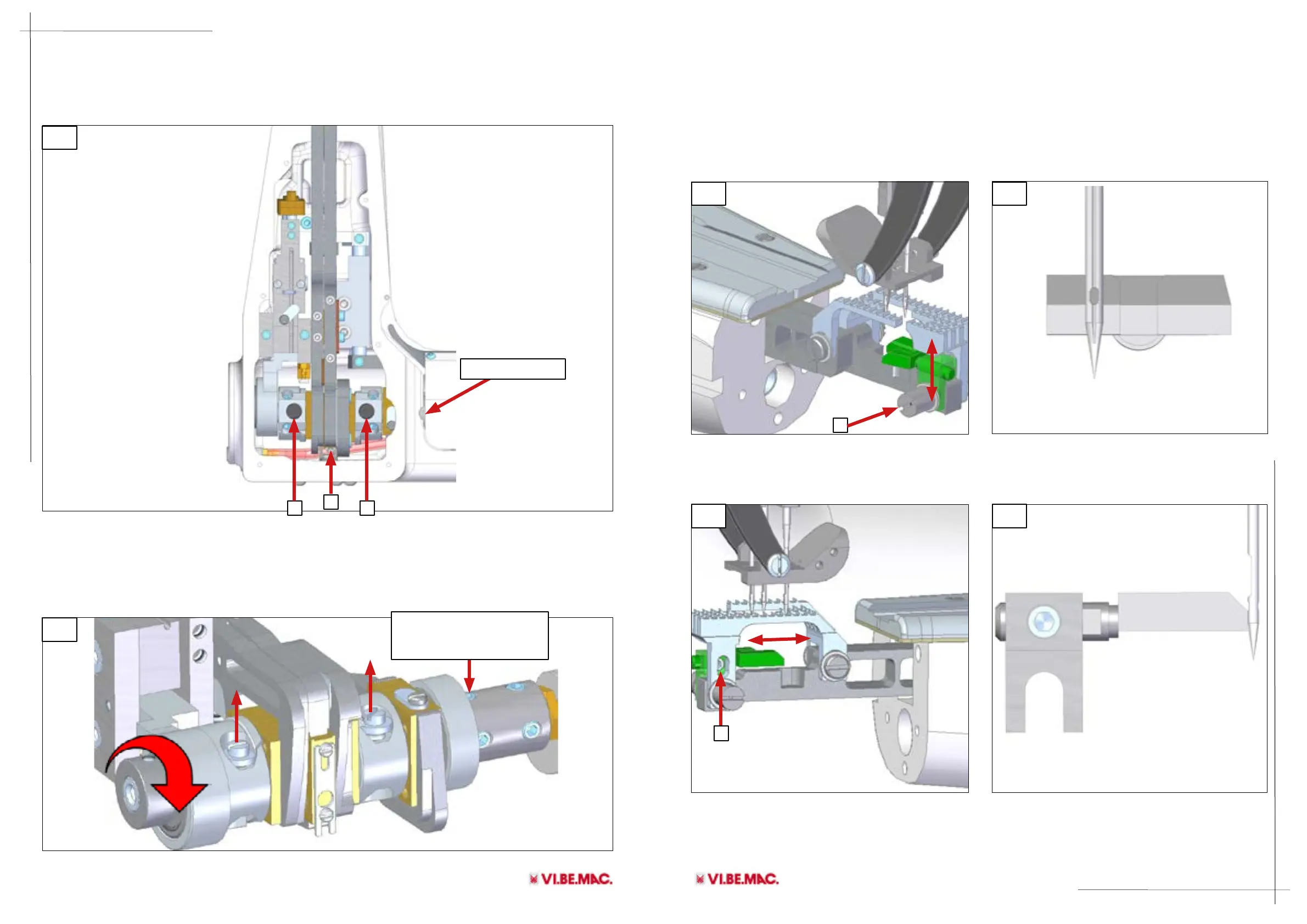

13.2- Feed dog movement
The feed dog movement is given by the two eccentrics highlighted as A for the forward-back
movement and the height movement given by the eccentric highlighted as B, in the below
image .1.
The correct position of the two eccentrics A is when the pulley is rotating in the running
length adjustment from the eccentrics are face up (as per image .2).
service hole
2nd shaft xing grub
screw in axis with the
service hole
14. Needle guard adjustments
The needle guard is positioned on the feed dog support and is moving in the same time with the
feed dog, for that reason the needle guard position have to be checked every time the stitch
length is changed. The needle guard have to touch the needle just a little bit, only for support,
don’t have to push the needle and the have to touch the needle right under the needle hole.
The screw A (image 29.1) is used to adjust the height position and the screw B (image 29.3)
to adjust the back-forward position.
