50.1 50.2
50.3
NEEDLE HIGH

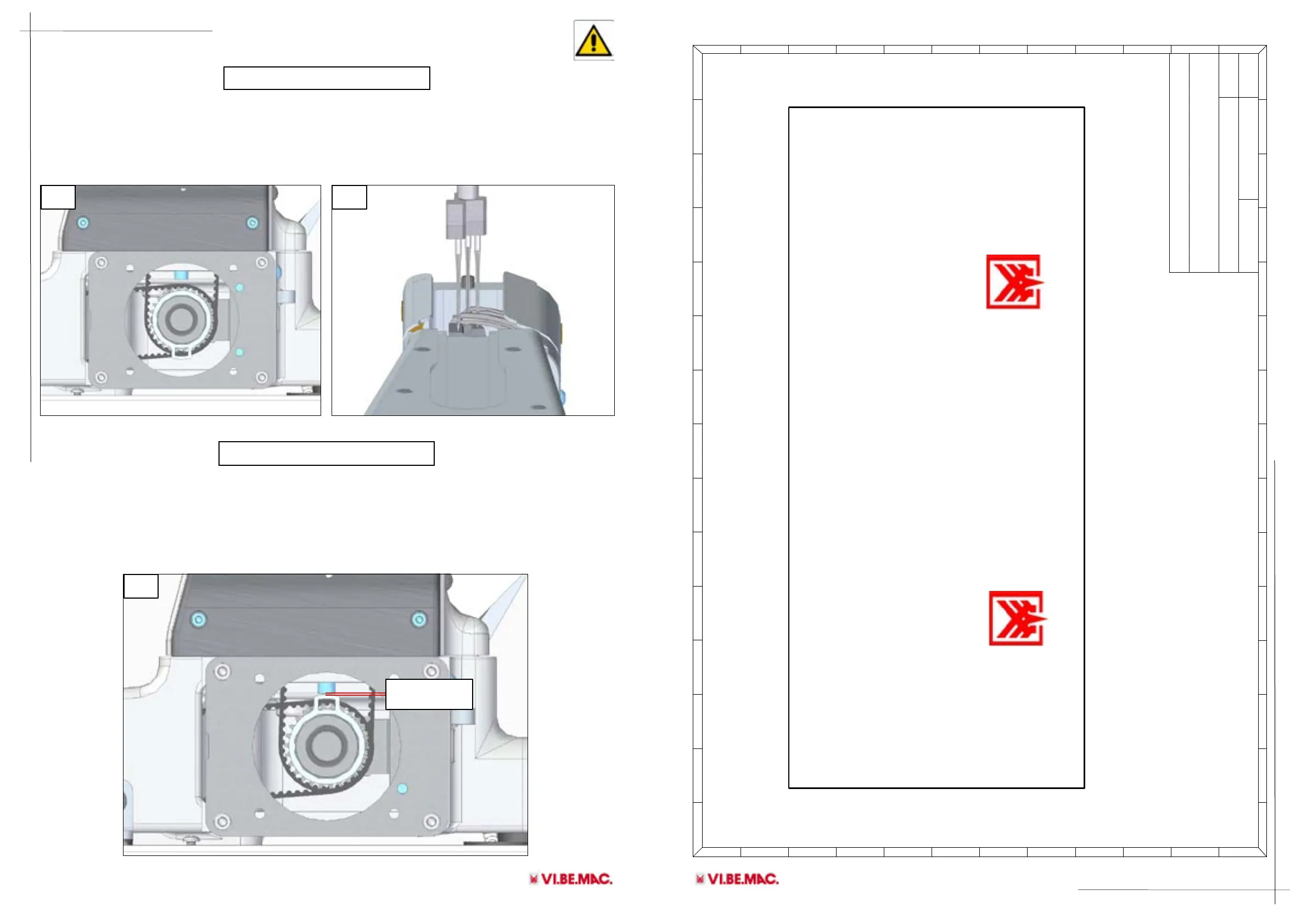

23. STOP POSITION
This unit has 2 STOP positions:
1. STOP position is when the machine stops after releasing the pedal and the loopers have
already entered the thread (as image 50.2) and in this position the detector is facing down
(as image 50.1)
2. Back pedalling the machine stops in STOP position with detector as image 45 and needle
bar in upper dead position.
To adjust correctly the stop position sensor, position the detector in the center of the sensor
keeping a distance of 0,4 ▶ 0,6 mm (as image 50.3).
NEEDLE LOW
