8. THREADING PATH

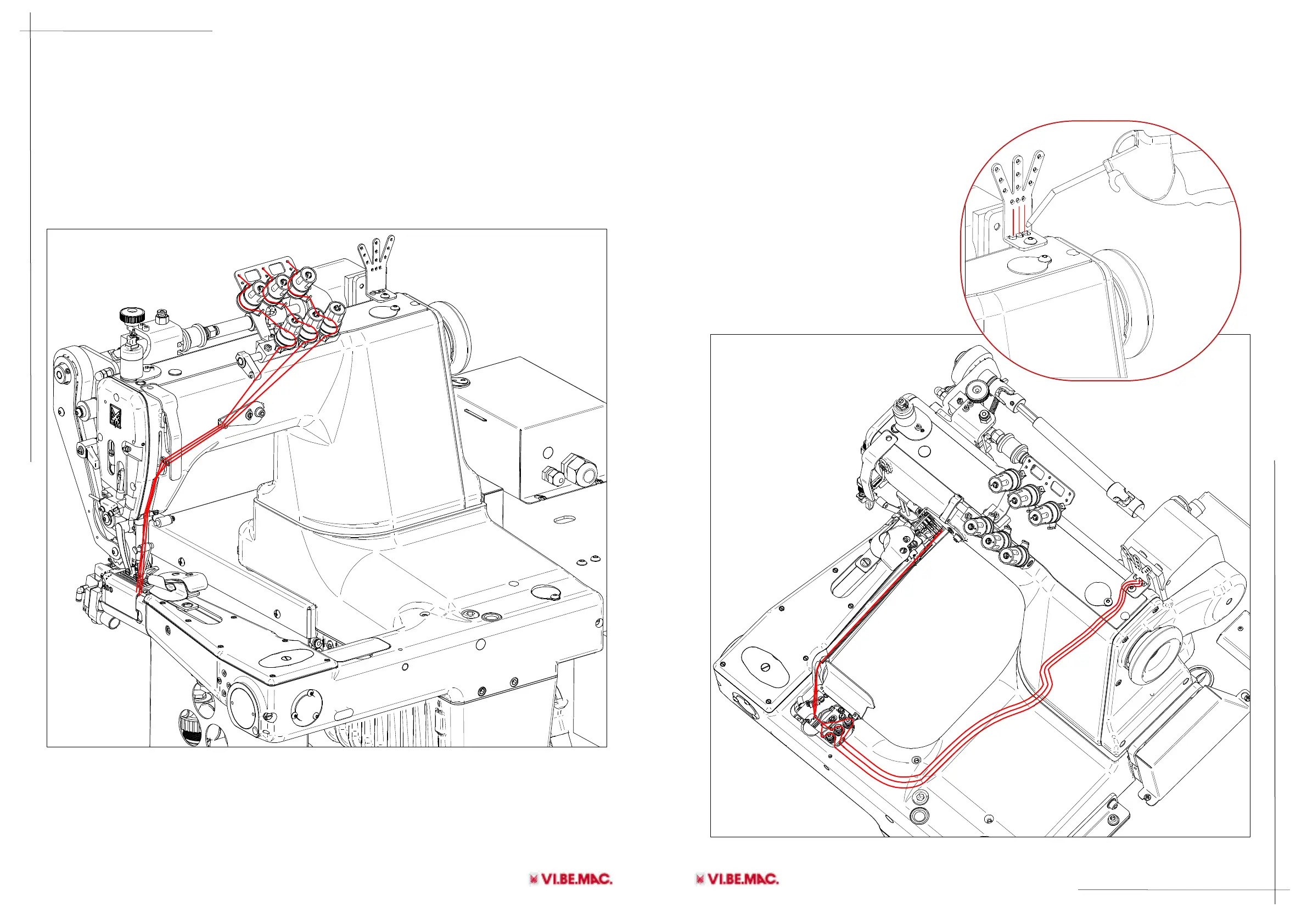

8.1- Needle thread path
that the thread is inserted correctly, please check below the correct thread path. To adjust the
tension of the thread please rotate the thread disks knob. Rotating in clock wise direction will
increase the tension on the thread, rotating in a anti-clock wise direction the thread tension will
decrease.
8.2- Looper thread path
To insert the thread thru the thread pipes please use the air gun, attached on the right side
under the table.
