4. GENERAL MACHINE SPECIFICATIONS
The VIBEMAC V261 is a 3 needles chain-stitch feed of the arm machine, made for top stitching
and lap seaming in the manufacturing process of the denim trousers, chinos, work wear, denim
jackets and shirts.
device, a Chain Cutter device and Low Inertia device (patented Dynamic Control of Presser foot
system).
feed dog.
In this way the unit has the possibility:
• To increase the speed of seam without losses some traction in the material,
• To get a better quality of seam, since the feeding is constant during the stitching
The DCP system is working controlled by the ViBeMac software and allows the feeding of the
pressure on the start of the stitching for a adjustable number of stitches and for the stitching
time the machine will run with a low pressure on the presser foot, in this way the stitching
is made with a very low tension and can be very easy guided by the operator, on the crouch
because of our sensor the machine automatically will detect the thickness and the pressure
on the presser foot will increase and the speed will be reduced, this actions are made to make
correct and regular stitching on the thicker parts of the fabric and to avoid the skip stitching, in
this way the quality of the stitching is always maintained.
4.1- Power supply
The tension is 220 Volts mono phase 50/60 Hz for the MITSUBISHI Motor. Consumption
4.2- Air consumption
The air consumption is of around 0.4 liters every cycle connected at air pressure line with at
least 6 bar. The needles air cooler device is working blowing air and its consumption is in base
ad the adjustment.
4.3- Dimension and weight
Width : 90cm
Length : 60cm
Height: 120cm (in the highest position)
Weight: 110kg (packed has 146kg)
5. INSTALLATION
WARNING: THE INSTALLATION MUST BE PERFORMED ONLY BY SPECIALIZED PEOPLE
We disclaim all responsibility for damages resulting from installation not complying
with these instructions or from connecting the machine to power and utility lines not
satisfying the necessary requirements.
The machine should not be installed in environments in which explosive materials or
substances are present.
5.1- Flooring
housing, suitable to support the weight of the machine and to ensure its stability.
5.2- Lighting
operations and all machine components. In particular shadowed areas, annoying glares

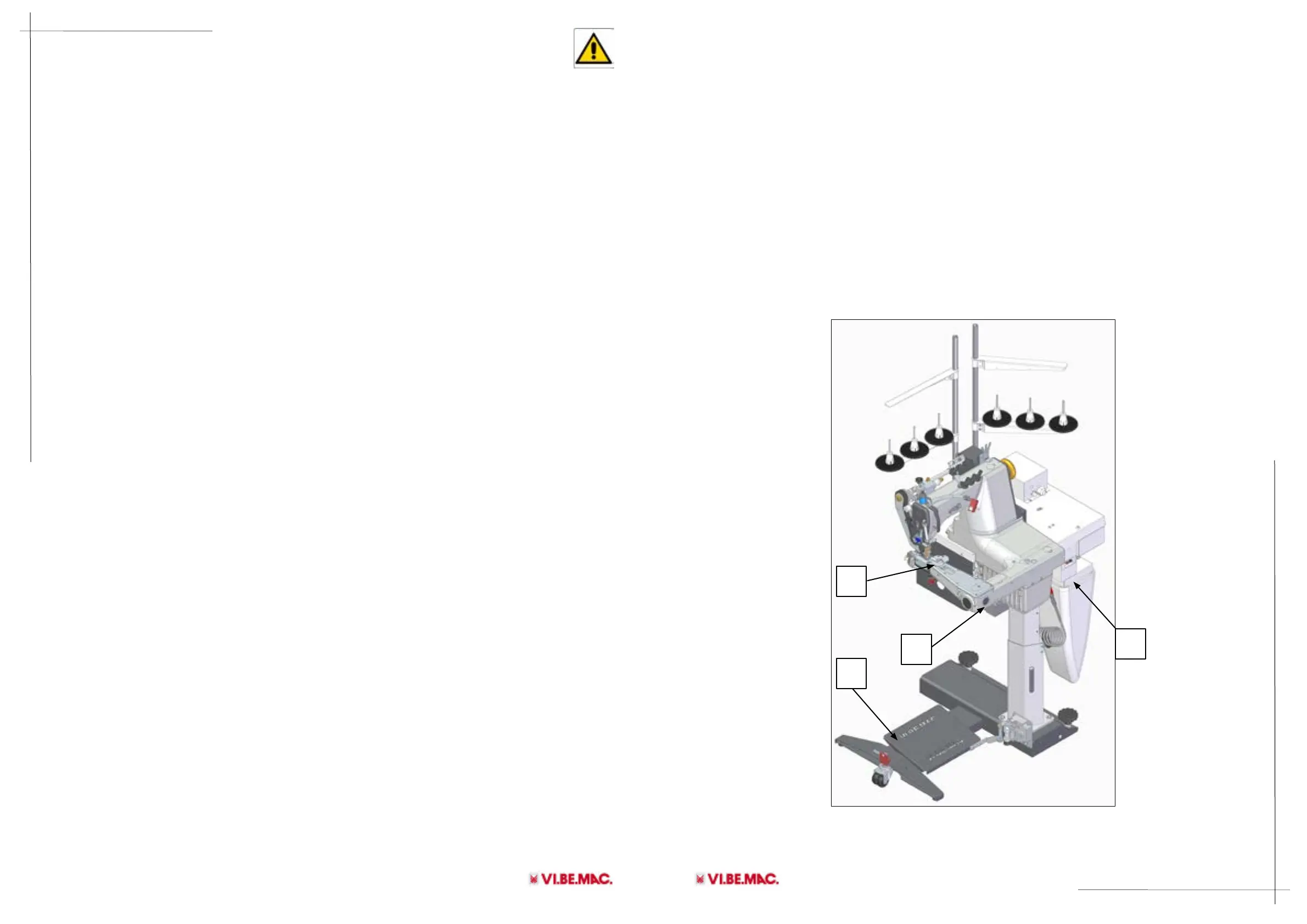

5.3- Working position
The operator works sitting down in front of the machine with a foot pedal speed control
support. The folder (3) can be attached on the machines arm in front of the presser
