6. DESCRIPTION OF SWITCHES AND COMMANDS
On the unit V261 there are the following switches:
6.1- Main switch
There are two buttons.
The left RED one is used to switch power OFF and as emergency
The right BLACK one is used to turn power ON.

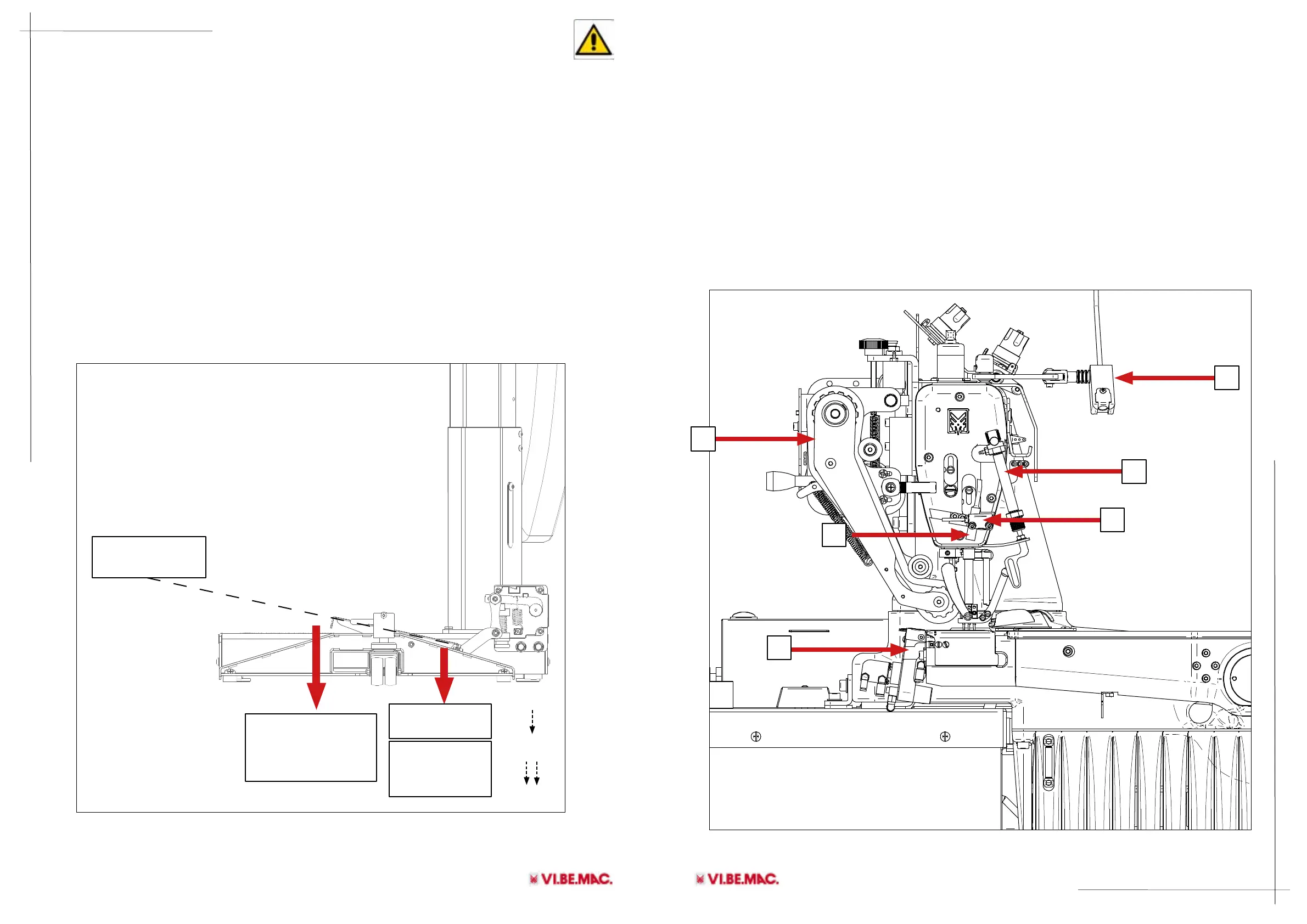

6.2- Command pedal
It is positioned at the base of the stand, connected by a connecting rod to the lever of the Motor
panel.
The pedal has 4 positions:
1. Neutral
2. Forward, to increase the sewing speed.
3. Back pedal, to rise the presser foot
4. Complete back pedal , rise presser foot and needle position in upper dead point
7. EQUIPMENT
The V261 unit is equipped with:
1. Puller belt device,
2. LED working light,
3. Presser foot compensating cylinder,
4. Pneumatic thread trimming device,
5. Photocell (fabric detection),
6. Sensor (thickness detection)
Presser foot
lift
Presser foot
lift and needle
up position
Sewing Rotation
More presser=
more speed
Neutral Position
6.3- Sense of rotation
On VI.BE.MAC. V261 unit the sense of rotation is automatically given by the XL-CE
MITSUBISHI Servomotor
